Best peninsular tank ever?

Discussion in 'Other Reef Talk' started by roostertech, May 5, 2017.

  1. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
  2. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,462
    Likes Received:
    718
    Amazing engineering.
    Really nice tank coral/fish.
    But I just don't know. Just seems weird, huge, and in the middle of the room.

  3. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,835
    Likes Received:
    1,024

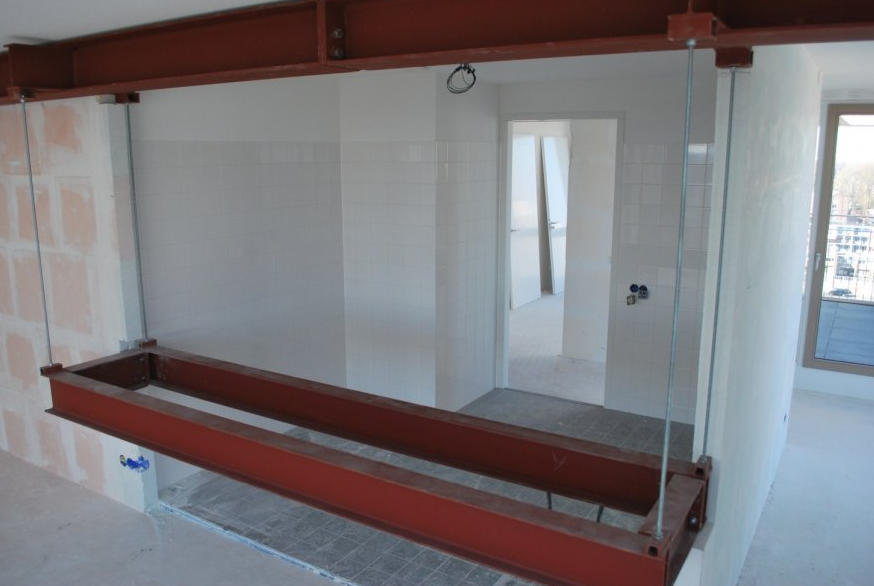

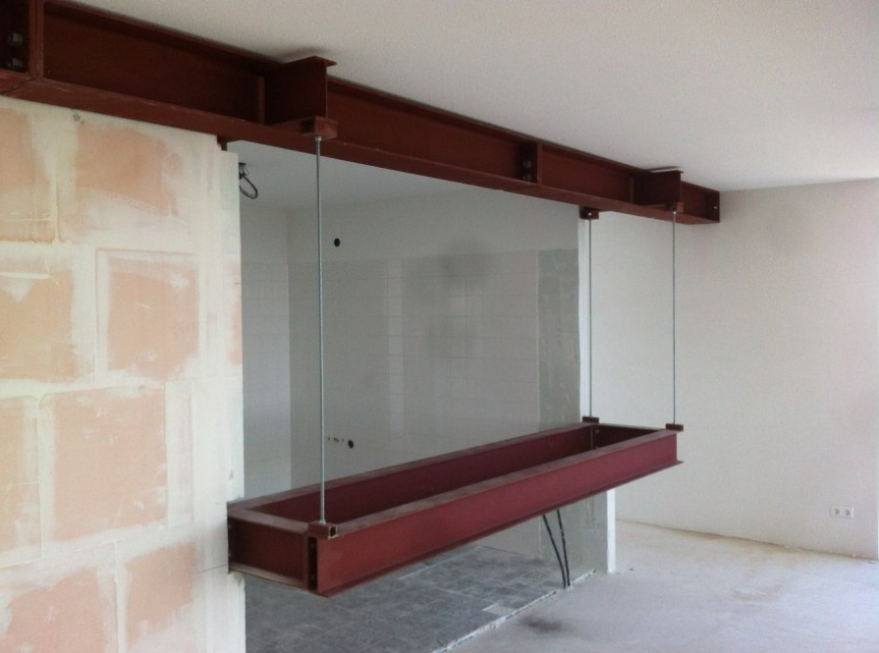

    Far be it for me to criticize (*snicker* yeah right!), and I'm sure (hoping) an engineer worked on those. But I would be worried about those top beams that the metal anchored into, looks like the only thing keeping that tank up is the sheering strength of those bolts that are holding that middle beam to the other beams.

    Wonder if that "stand" is in any way cantilevered on the other side of that wall, i.e. the rest of the house is balancing it.

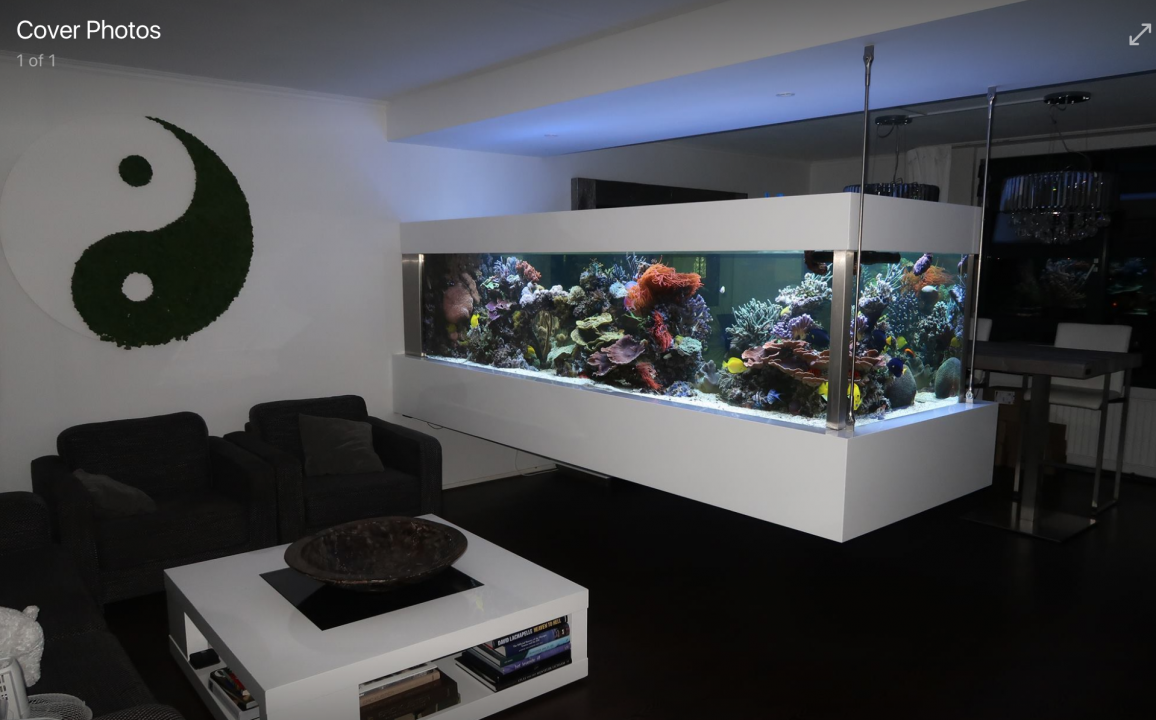

    That said it looks like a beautiful tank, so the person gets kudos for that :)

  4. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461

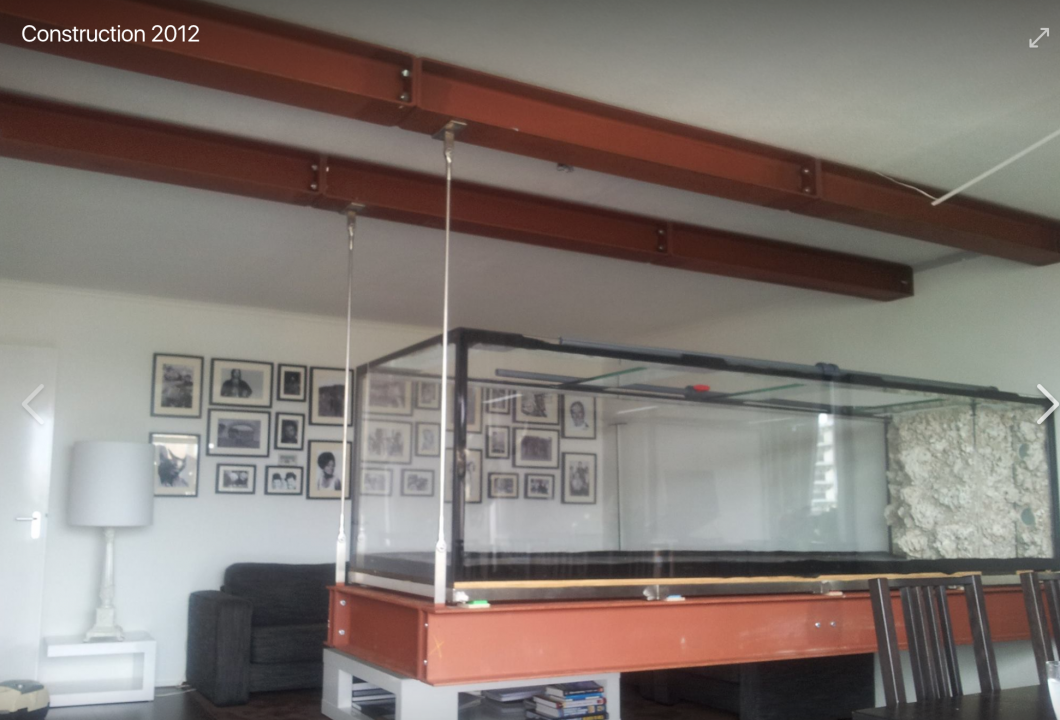

    The firm that did this tank has built similar tank with the same technique. Also this tank has been up for 5 years

    http://aqualuxury.nl/



  5. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,963
    Likes Received:
    861
    Sure looks cool! But I wouldn't trust it.


    Sent from my iPhone using Tapatalk

  6. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,462
    Likes Received:
    718
    A 200G glass tank weighs around 2000 pounds when full.
    The "safe" load for a normal type-2 5/16 bolt = 270-575 pound depending on usage.
    The "breaking" point is up around 4000 pounds. But really - you do not design to that number!!!

    Stainless is weaker.
    I don't know exact tank size, bolt size, or bolt type of course.

    But yeah, 4 bolts would probably not break, for a while, maybe.

    And those top beams are not full beams. They are short beams bolted together.

    Scary.

  7. tankguy

    tankguy BOD

    Joined:
    Dec 10, 2011
    Messages:
    2,785
    Likes Received:
    503
    Its an awesome look

  8. Wlachnit

    Wlachnit Vice President

    Joined:
    Jun 3, 2016
    Messages:
    1,082
    Likes Received:
    319
    Engineering comments aside.....very very cool looking tank.

  9. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,793
    Likes Received:
    1,195
  10. TNT32D

    TNT32D Guest

    Joined:
    Feb 8, 2017
    Messages:
    34
    Likes Received:
    1
    That's amazing!

  11. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,558
    Likes Received:
    951
    Looks like I've got my next tank build ready to get going.

    I agree with most of you in regards to the engineering. Some areas are way stronger than needed but then implemented in ways that create weakness. I would definitely make a few changes but love the inspiration.
