Bubble Magus Dosser fix

Discussion in 'Equipment' started by xcaret, Dec 19, 2018.

  1. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    So today I found my multimeter and opened the BM Dosser.
    Pump/motor #2 does not work but switching the port at the mainboard, the motor/pump works so it’s not the motor itself; tested for voltage at the three ports; pump 1 shows 11.5v when turned on; pump 2 shows 12.1v and pump 3 shows 11.5v
    Logic tells me if there’s voltage, by just plugging in the little motor, it should work but it does nothing.
    Any suggestions on what else to test? I checked the resistors’ ohms and they all read ok but with the caps, diodes and ic’s, not sure what or how to test on the meter.
    Any help/pointers, much appreciated.

  2. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438

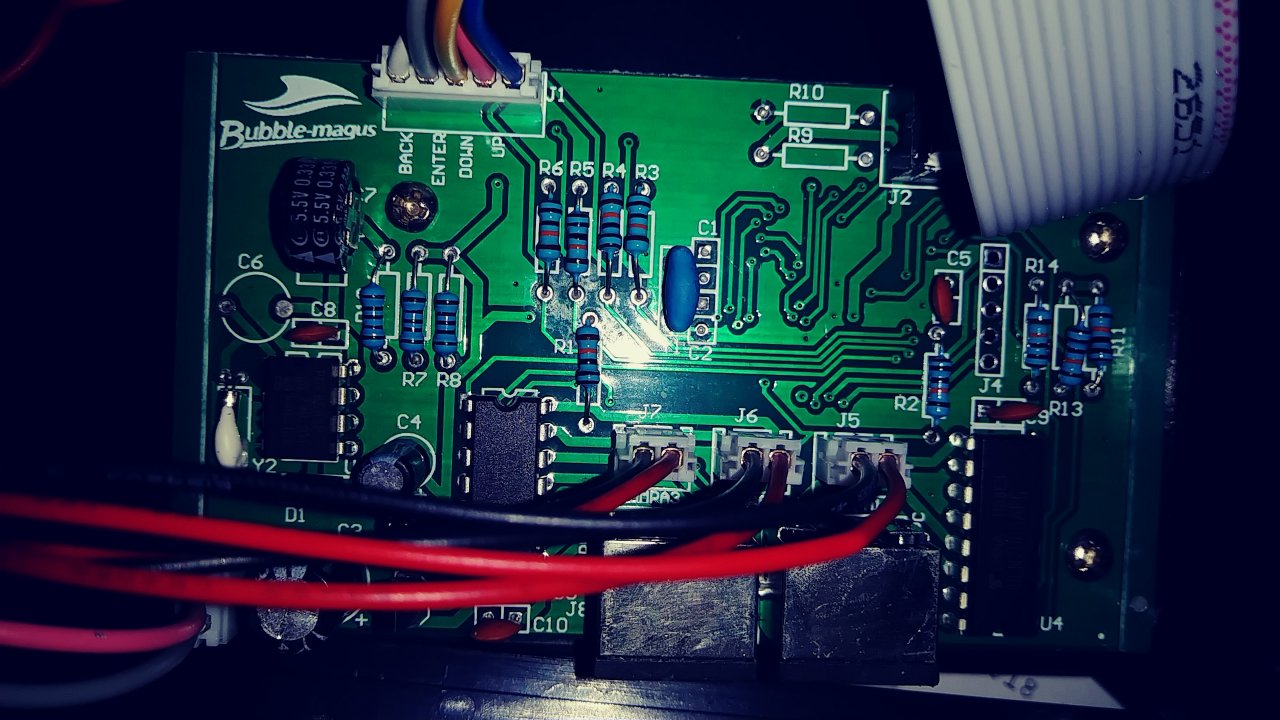

    Pics of logic board...



  3. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    3,168
    Likes Received:
    936
    The 2 working ports show 11.5V but the non-working port shows 12.1v? Maybe a short on that port upstream?

  4. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    That's right, multimeter shows 12.1V for that motor's connector but does not start any of the other motors if I switch them manually on while plugged onto that particular port.

  5. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438

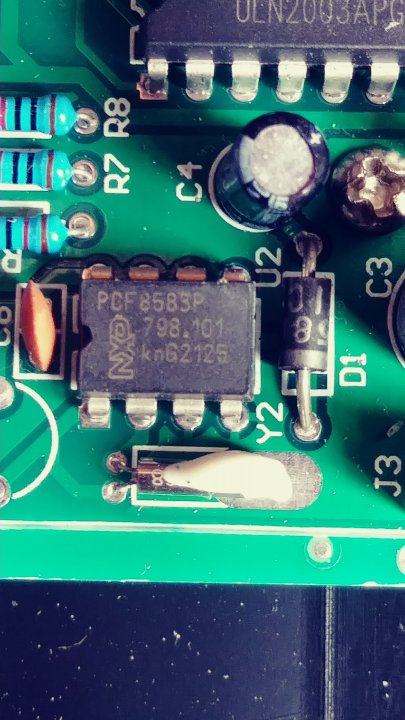

    Testing an IC, I get some of the trminals to read OL open line; think this is the culprit
    IC PCF8583P
    Now to remove it and get a replacement.

  6. Coral reefer

    Coral reefer Past President

    Joined:
    Mar 26, 2010
    Messages:
    8,404
    Likes Received:
    1,317
    I have a couple non working if you need parts?

  7. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    Yes please, called San Mateo electronics and they are not familiar with that particular IC


  8. Coral reefer

    Coral reefer Past President

    Joined:
    Mar 26, 2010
    Messages:
    8,404
    Likes Received:
    1,317
    I don't know what that part means. I did order a replacement main board from seaside aquatics once.

  9. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    The booger with the numbers on, PCF8583


  10. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    3,168
    Likes Received:
    936
  11. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    Yeah, I was reading on that; tested all three IC and this particular one might be the culprit; bigger IC's test fine.

  12. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    3,168
    Likes Received:
    936
    Check with Anchor Electronics in Santa Clara or Halted Electronics. They may have them.


    Sent from my iPhone using Tapatalk Pro

    xcaret likes this.
  13. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    Read a PDF from Phillips, seems this chip is also an event counter.
    next time I'm south, will check both places for the IC
