In the beginning...

Discussion in 'Tank Journals' started by Flagg37, Mar 19, 2016.

  1. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,331
    Likes Received:
    676
    Pretty slick.
    A thought though : Leaks and condensation.
    A few coats of exterior paint may not hurt.

  2. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920
    It should be taped and textured, then primed and painted still. It has its own condensation drain line that goes to the drain that the washer and the rodi uses.

    Coral reefer likes this.
  3. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,669
    Likes Received:
    1,144
    Nice work! Gonna make water changes, cleaner, faster, easier, and more likely to get done

  4. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920

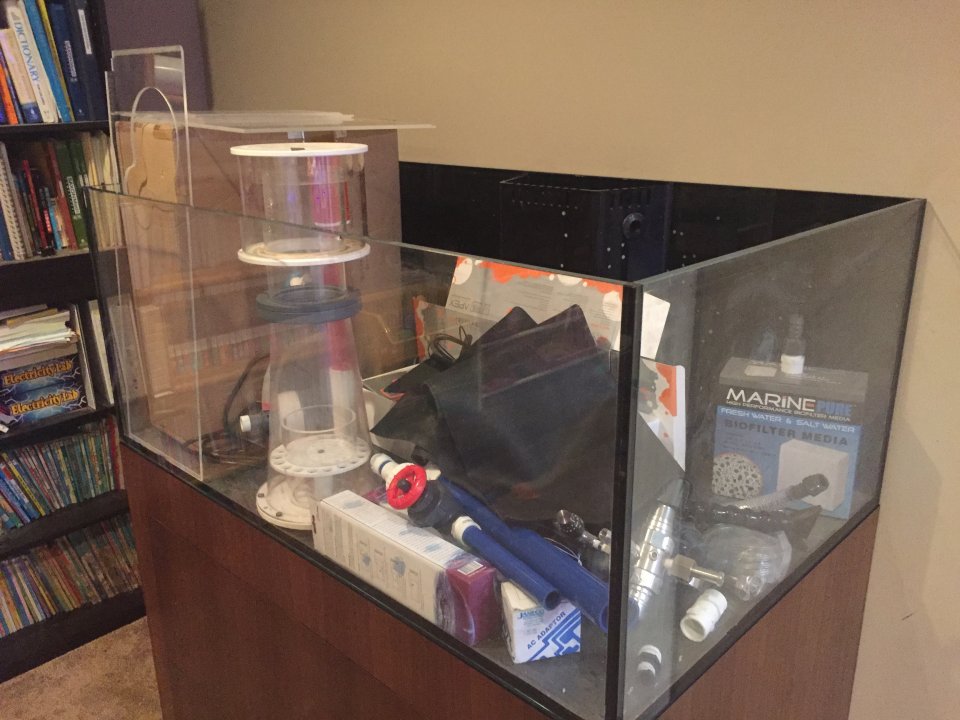

    I'm excited, I've got @jestersix coming to do my scape in less than 2 weeks. I guess I've got to get the tank cleaned out then. IMG_3884.JPG

    Oh yeah, he's also doing @Vhuang168's scape the same day so he should finally have some progress again too. ;)

    coral4me likes this.
  5. Calde0920

    Calde0920 Guest

    Joined:
    Sep 18, 2016
    Messages:
    359
    Likes Received:
    54
    Look at all that eye candy lol

  6. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920
    It all gets hidden in a box under the primary display. :)

  7. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920
    I've been thinking lately about the height I'll place my lighting at. About how high do you guys have your lights above your tank? In my current setup they're hanging about 10" above the water but I can move them. The design I'm looking at building is more of a fixed height. Is there a prime height that you've found that is close to the water but also allows for maintenance?

  8. RandyC

    RandyC Supporting Member

    Joined:
    Aug 20, 2016
    Messages:
    1,224
    Likes Received:
    542
    I don't know about the "prime" height, but for reference, the base of my two radion XR15w lights are about 7" from the water line using ecotech mounting arms. Allows me to still use a 2G bucket to cleanly pour in without a problem and reach all the corners of my tank without issue. But this is probably more of a factor of tank and physical light dimensions than anything.

  9. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,331
    Likes Received:
    676
    With rimless, you need very little space for simple maintenance, so as low as 6" can work. (10" is a lot better though)
    But you will always want the ability to move the lights out of the way for adding rock and serious work.
    My current lights have 0", and I always move them. That also keeps the jumpers in.
    Simple tilt up for maintenance, and removal for serious work.

  10. Joey Chen

    Joey Chen Guest

    Joined:
    Oct 12, 2016
    Messages:
    9
    Likes Received:
    0
    So jealous. This is amazing. You will never be out of work because your craftsmanship is amazing. You are a talent.

  11. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920
    Thank you so much. That's a great compliment.

  12. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,659
    Likes Received:
    983
    So is it done yet? pictures!! :D

  13. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920
    Inching closer. I should have the sump and plumbing done today. Routing all the electrical is going to take a little thought.

  14. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920

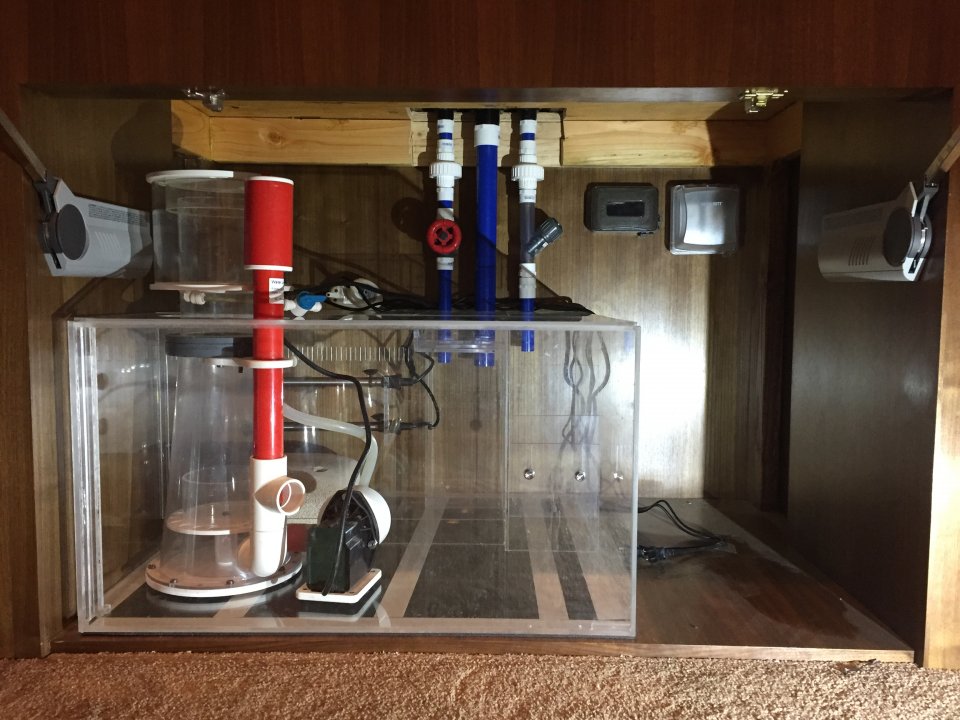

    Here's the latest. IMG_3895.JPG I removed the doors for better access and for the pictures.

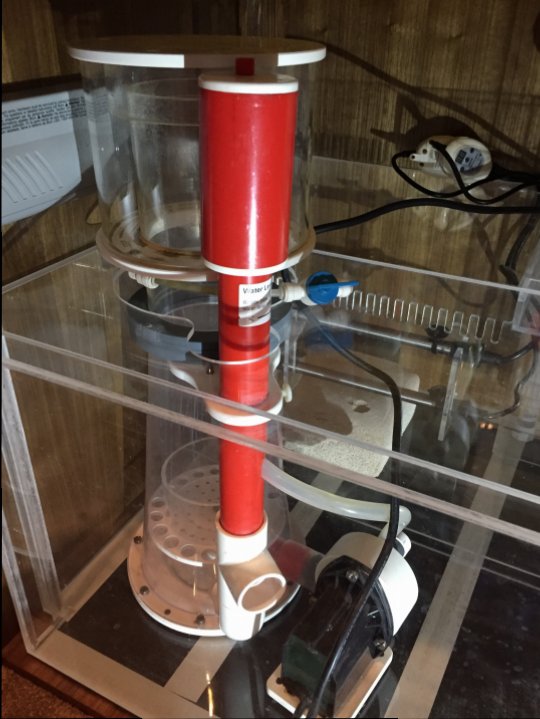

    Close up of the skimmer section. I cut out the lid so it fits nicely. The collection cup is easily removed without having to remove the lid.

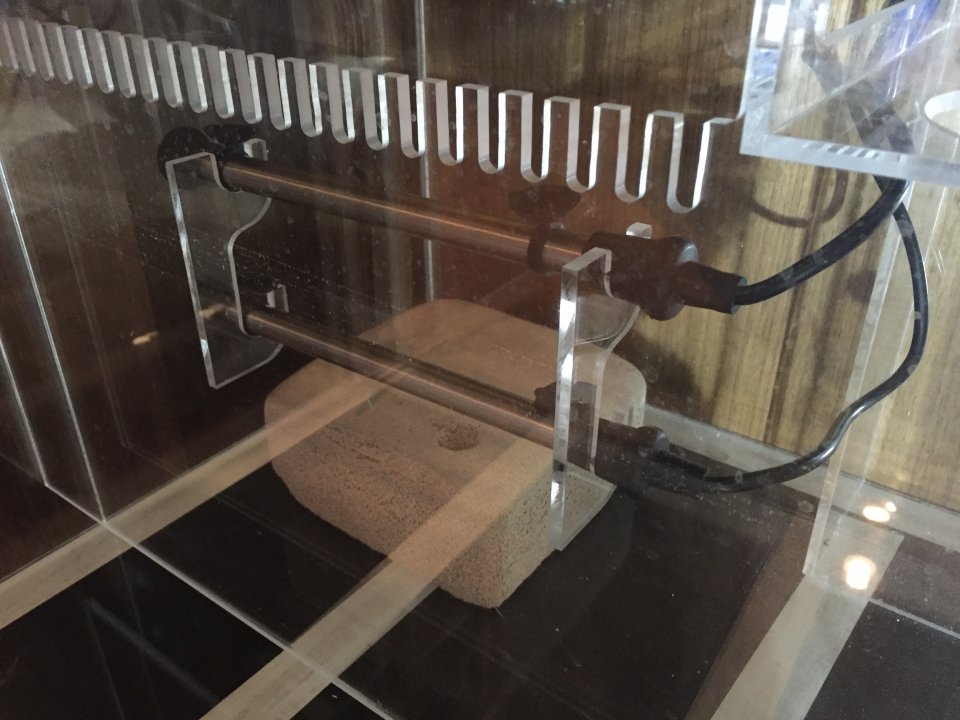

    This is the refugium section. It's got the 4" Marine Pure block in it for added biological filtration. The two 200w heaters are mounted on the wall just under the weir so there's always a good amount of flow going around them. There's also the pH and salinity probe that are held in place by the lid.
    Here's the plumbing. Left most is the main drain with the gate valve, middle is the emergency drain, and the right one is the return with the chech valve. The COR hasn't come out yet so it's incomplete (Grrr). The temperature probe is in the very first chamber so that it reads the display tank's temperature before it flows into the refugium where the heaters are.

    Each of the chambers has a lid for it that has been recessed so that it fits in place and has holes drilled for the plumbing, probes, and such to hopefully keep down on evaporation.

    coral4me and Coral reefer like this.
  15. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,331
    Likes Received:
    676
    > The temperature probe is in the very first chamber so that it reads the display tank's temperature before it flows into the refugium where the heaters are.
    You don't really want that.
    If return pump stops, heaters and sensors are in disconnected areas.

    Newjack likes this.
  16. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920
    If the return pump stops then the temperature of the first chamber where the probe is will slowly drop causing the apex to turn on the heaters. The refugium chamber where the heaters are will get warmer but the internal thermostat of the heater itself will be set a degree or so above what the apex sets it at so that it will turn off the heater on its own.

  17. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,447
    Likes Received:
    920

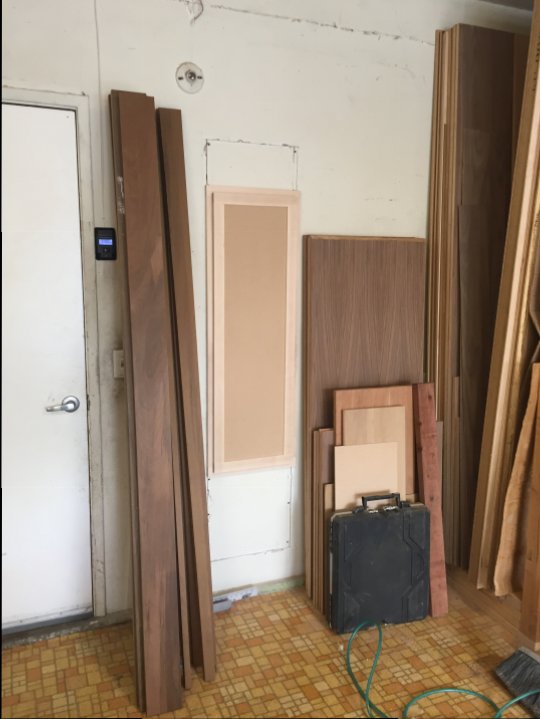

    I got the door mounted today over my access panel. Before it was just open. So now it won't get nearly as much dust in there while I'm working.

    I also got some equipment mounted. I think I'll have to enclose that electrical box since I've got the DOS in there. Before it was only cables but now there's water in there. I'm glad I've been able to get this stuff out of my stand where it was originally slated to go. This makes it so much more accessible. The DOS barely fit. It has an extra 1/16" between the front of it and the back of the door when it's closed.

    coral4me and Coral reefer like this.
  18. jestersix

    jestersix Sponsor

    Joined:
    Feb 12, 2010
    Messages:
    531
    Likes Received:
    102
    Pretty excited about this 'scape!

    Flagg37 likes this.
  19. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    452
    Likes Received:
    161
    Everything is look great! Can't wait to see what @jestersix pull out of his hat for you. Should be awesome!

  20. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,331
    Likes Received:
    676
    Nice woodworking as usual.
    If nothing else, clean up the electrical box so it looks nice.
    Have you tried closing the door with big clunky plugs in the Apex? That seems tight also.
    Legal garage fire resistance rating? It was a pain for me when I went through the wall.
