Nly04's tank

Discussion in 'Tank Journals' started by nly04, May 16, 2015.

  1. nly04

    nly04 Guest

    Here is my new set up:

    Tank: 125 gallons Starphire glass tank (3 sides), center overflow, 1/2" thick glass, originally rimless but i add an acrylic Euro brace, 48x30x20" tall.
    Stand: home made 40"high with doors on three side, Java stain, light stand and small canopy.
    Sump: Kritter 38x24x18. 70gallon
    ATO container is home made: 25x19x7, 14gal
    3 Ecotch Radion Gen3 pro as main light.
    1 AI prime as sump light.
    2 Ecotech Vortex MP40Wes as circulation
    2 jager 300w heaters
    SRO-XP3000i skimmer.
    DC-9000 as main pump.

    I will add on reactor and other stuff later when tank come along.
    I have the Apex full neptune but still not sure i will use it, any suggestion?

    neuro likes this.
  2. jonmos75

    jonmos75 Supporting Member

    Why wont you want to use it?

    BTW...nice set up pics would be cool too...but I am one not to talk as I have not started my tank journal ....lol

  3. nly04

    nly04 Guest

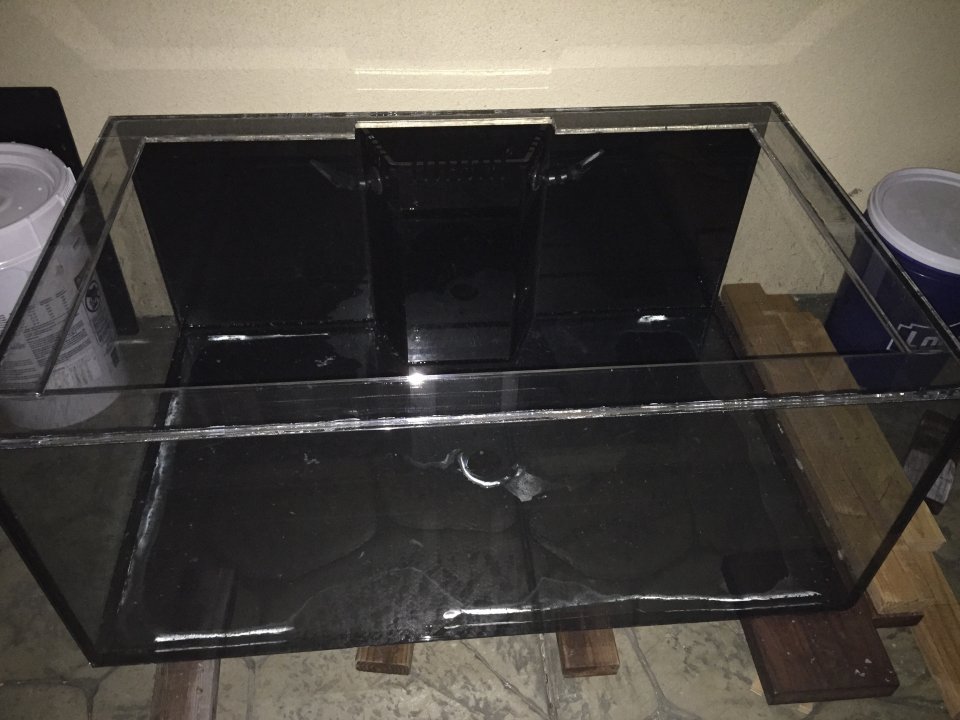

    Tank


    Attached Files:

    jonmos75 likes this.
  4. nly04

    nly04 Guest

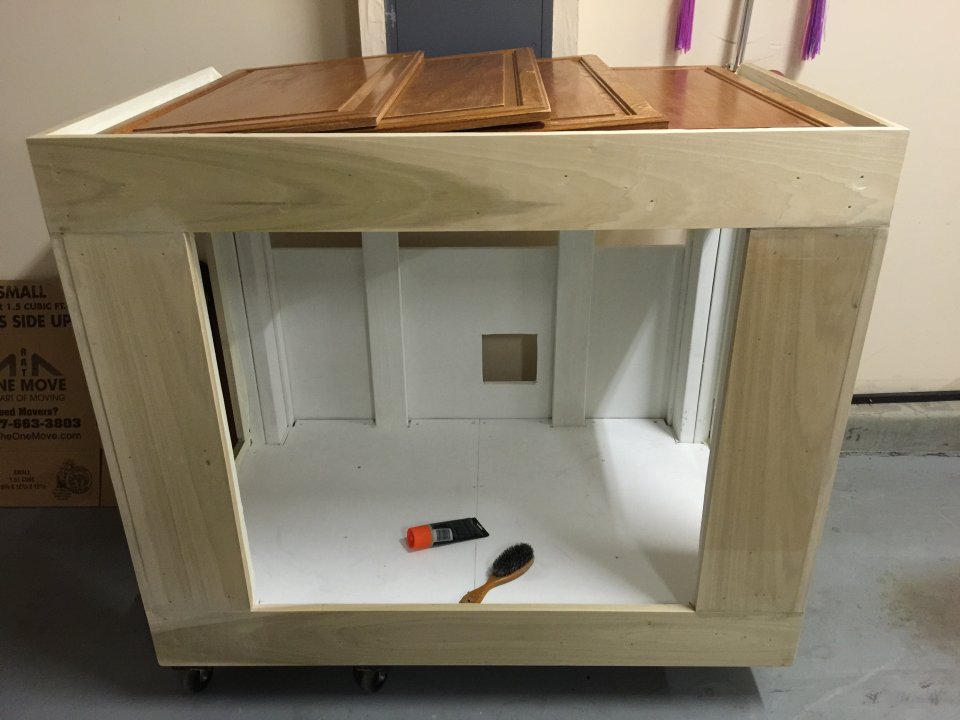

    Stand.


    Attached Files:

    Nav and jonmos75 like this.
  5. jonmos75

    jonmos75 Supporting Member

    looks good.

  6. nly04

    nly04 Guest

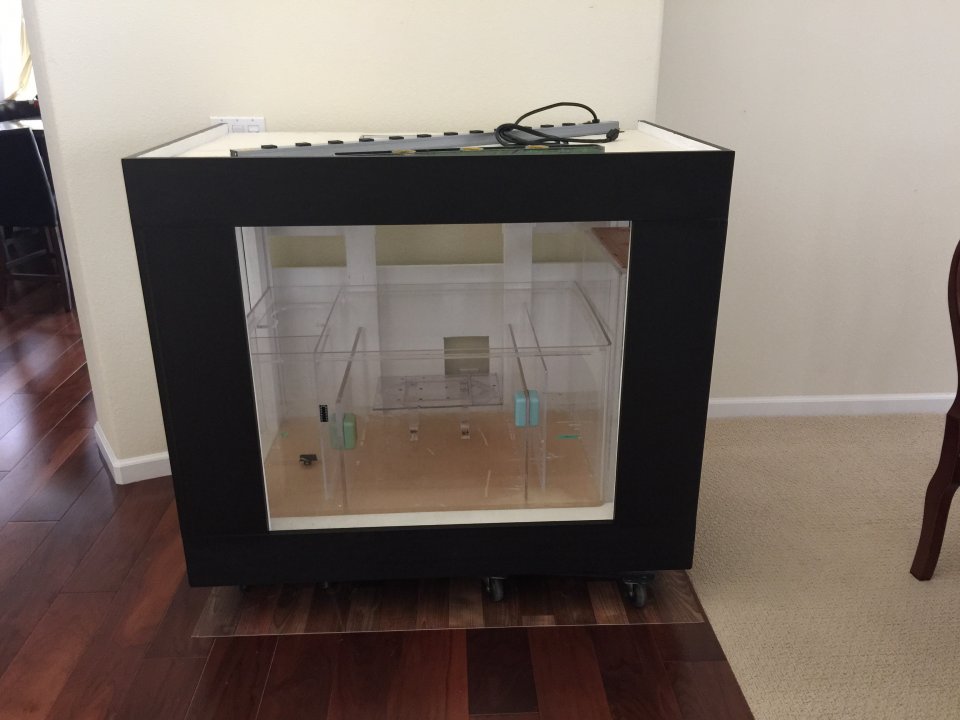

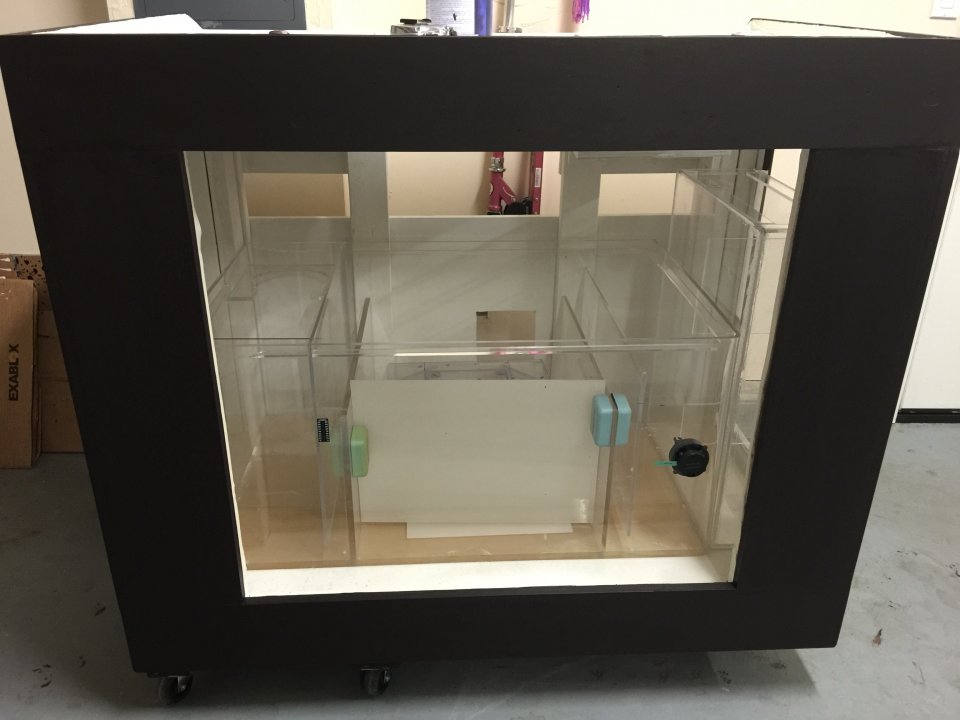

    Sump and ATO


    Attached Files:

  7. nly04

    nly04 Guest

    Im need some help to bring the tank inside.
    I just got some rock from Jesstersix today, he did an imazine work on the rock.

  8. rygh

    rygh Supporting Member

    New setup is looking good.
    I am just down the road if you need help. Call me. PM if you do not have my number.

  9. nly04

    nly04 Guest

    Thanks Mark, i will call you when i get enough help. Need at least three people.

  10. nly04

    nly04 Guest

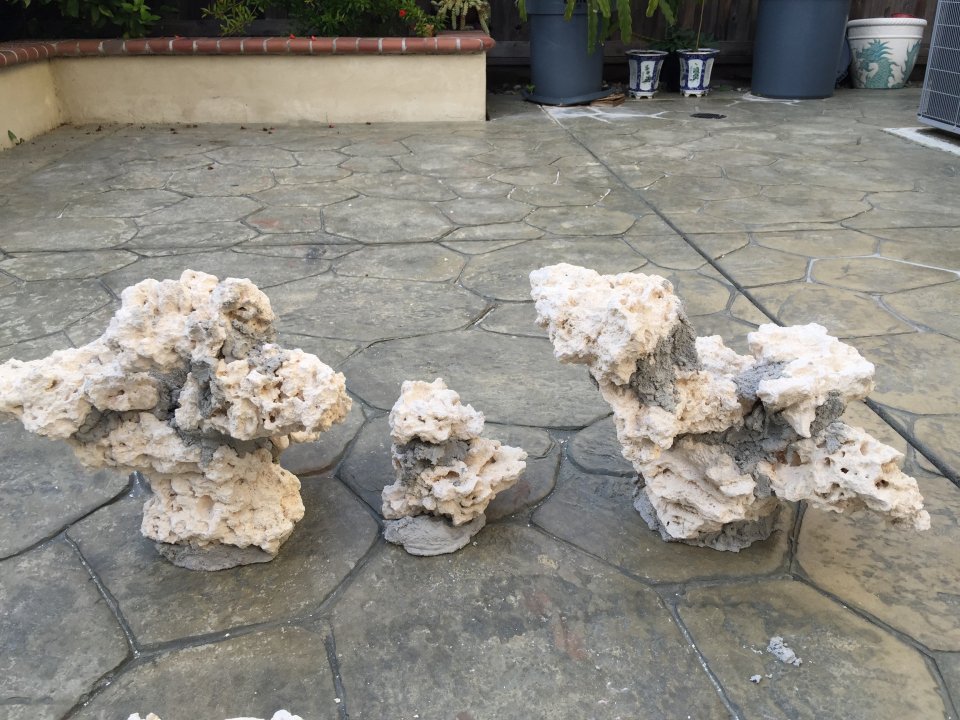

    Rock from Jesster.


    Attached Files:

  11. nly04

    nly04 Guest

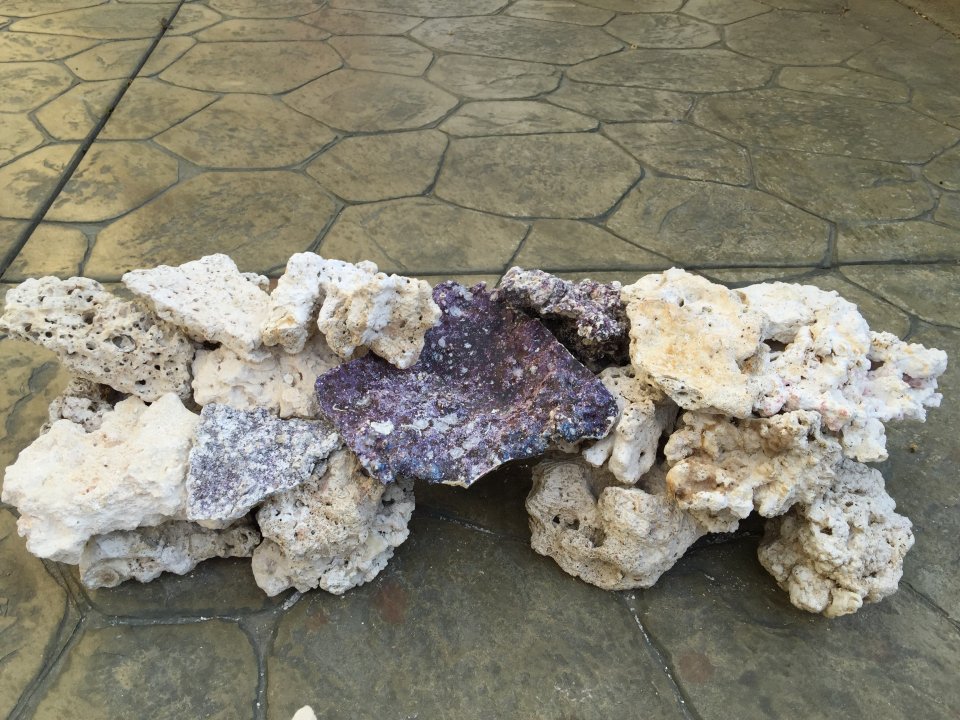

    Rock left from last build. I will use rock from Jesster for this tank and may add few peices from last build.


    Attached Files:

  12. bee505

    bee505 Supporting Member

    I really like the dimension on this tank. How did you end up repairing the tank? The rock work from Jesster is amazing.

  13. nly04

    nly04 Guest

    I took off the inside silicon and reseal it. Then i remove the old glue that fix the crack on the top conner and re-glued it. I planned to install starphire glass Euro brace but end it do acrylic Euro brace. I mess up a little bit when install Euro brace but able to fix it. I will have an up close picture when the tank inside the house. Tank had been water test for few weeks.

  14. Jonny Lam

    Jonny Lam Guest

    How much was jesters rock service? How many lbs was that? Tank is looking great nhan!

  15. Enderturtle

    Enderturtle Volunteer

    Maybe @jestersix can answer your questions.

    He will also be at the upcoming NVR swap this Saturday.

  16. nly04

    nly04 Guest

    Hey Johnny, price is very reasonable. Jesster is super nice person too work with. In my case, he can turn around quick and able to drop off. Very happy with the rock scape.

  17. jestersix

    jestersix Sponsor

    Thanks for the compliments - can't wait to see this build with water and corals! If anyone has questions you can PM or stop by and visit at the NVR swap.

  18. nly04

    nly04 Guest

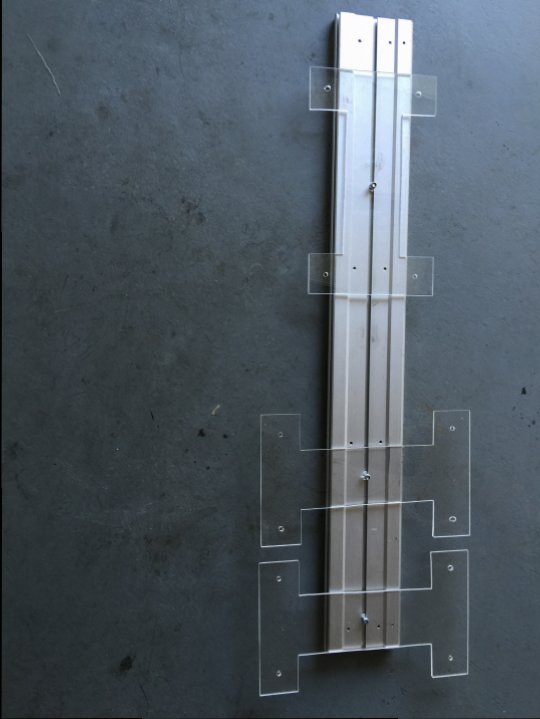

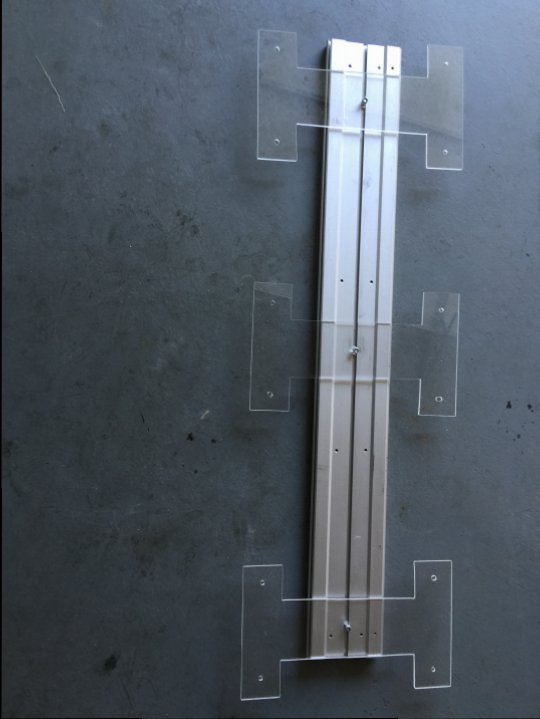

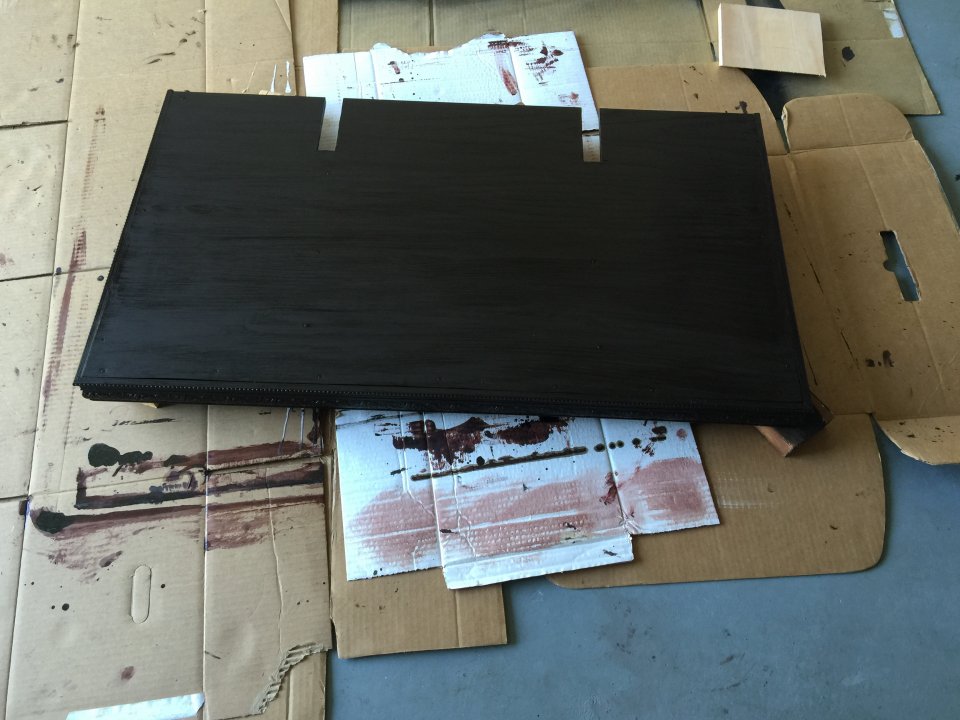

    Have some free time today, make the canopy and the adjustable Radion light rail. This ligh rail will allow me easily adjust the light from left to right and spin the light around if have too. Im still thinking on how to make the rail to adjust low and high. Any idea are welcome.


    Attached Files:

  19. nly04

    nly04 Guest

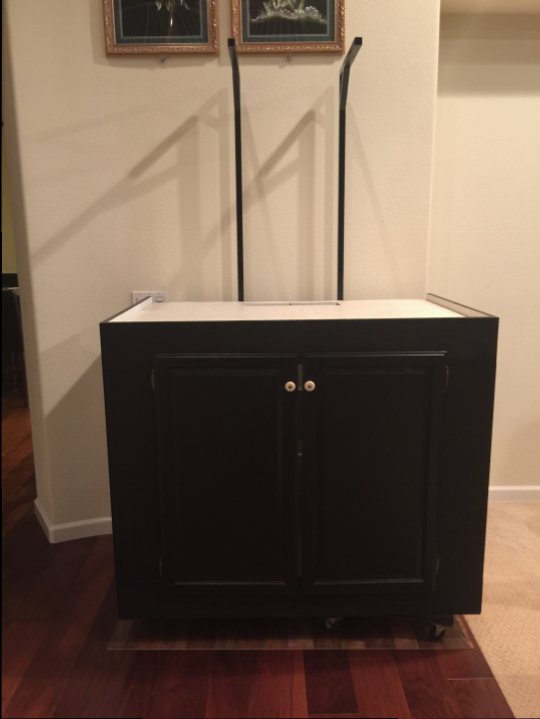

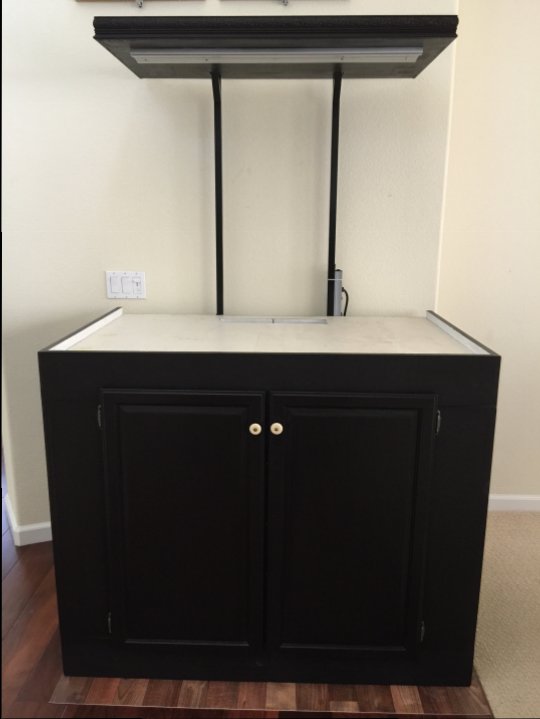

    Stand with canopy and light rail.


    Attached Files:

  20. jonmos75

    jonmos75 Supporting Member

    looking like a really nice clean setup!!!:)
