Our DSA Neo 105 Build

Discussion in 'Tank Journals' started by coral4me, Dec 1, 2016.

  1. Flagg37

    Flagg37 Officer at large

    That is sweet. Now I want to remake mine. Well, maybe not. It was a lot of work.

    Ashalye, Newjack and coral4me like this.
  2. coral4me

    coral4me Supporting Member

    Lol, I know what you mean. I spent about two months working on my sump design and build after work and on weekends. Had it just about done, when I saw the Roller Mat go on sale for Black Friday. I was thinking, should I build a whole new sump with roller mat design? Too much work went into the first one not to use it. For the time being, I decided against building another new sump, but I ordered a roller mat anyways. Figured if I didn't, I'd probably kick myself later.


    Sent from my iPhone using Tapatalk

  3. Flagg37

    Flagg37 Officer at large

    That's so funny, I almost bought that roller mat too with the same thinking.

    coral4me likes this.
  4. sfsuphysics

    sfsuphysics Supporting Member

    How tall are those 7" socks? I might have to bug you to use your jig when/if I get my sump going.

  5. coral4me

    coral4me Supporting Member

    Sorry for taking so long to reply. Sure you can use the jig. The advertised sock dimensions are 7" x 17", but they are closer to 16" deep.

  6. coral4me

    coral4me Supporting Member

    I decided that I wanted a side door on the stand with an inner wall to help keep electronic separated from sump section. So I cut a hole in the side of my stand, yay, fun.

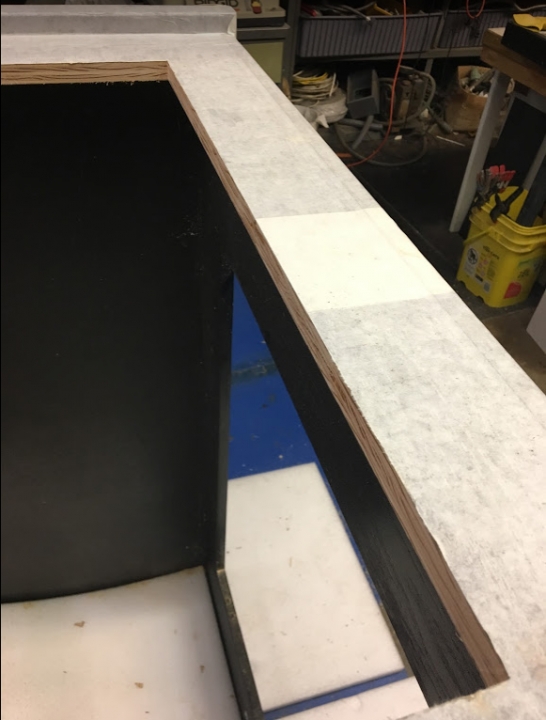

    First I masked the stand to protect from scratching. Then used a skillsaw along a straight edge jig to cut as much as possible without over cutting the corners. Then finished cutting the corners with a jigsaw.

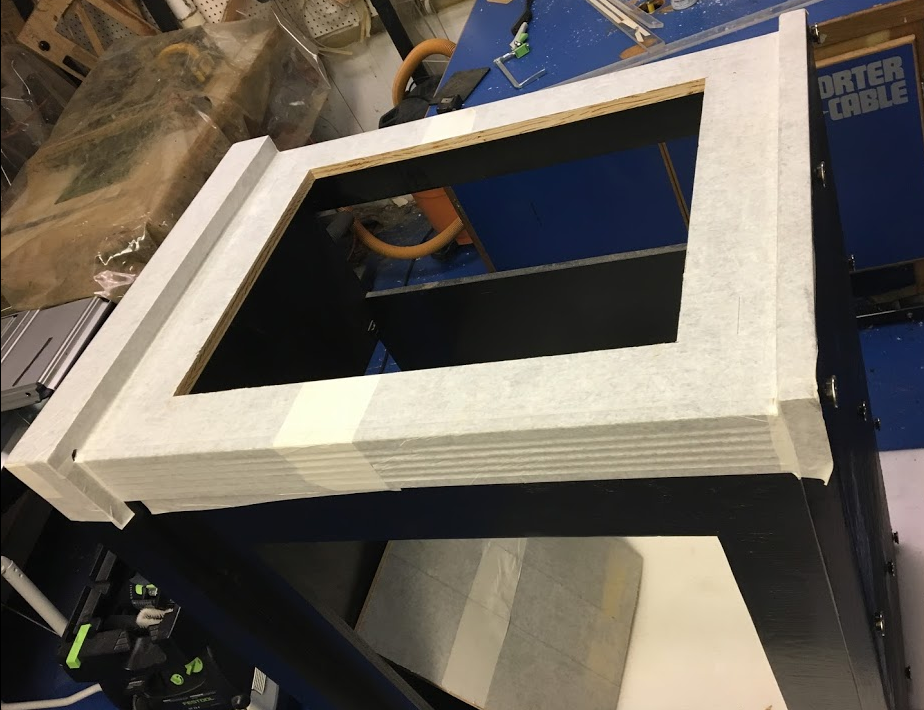

    Screen Shot 2016-12-15 at 3.26.40 PM.png

    It came out pretty clean. Love Festools!
    Screen Shot 2016-12-15 at 3.27.06 PM.png

    Next, I cut oak strips to line the inside of the cutout and the outside of the door.
    Screen Shot 2016-12-15 at 3.28.20 PM.png

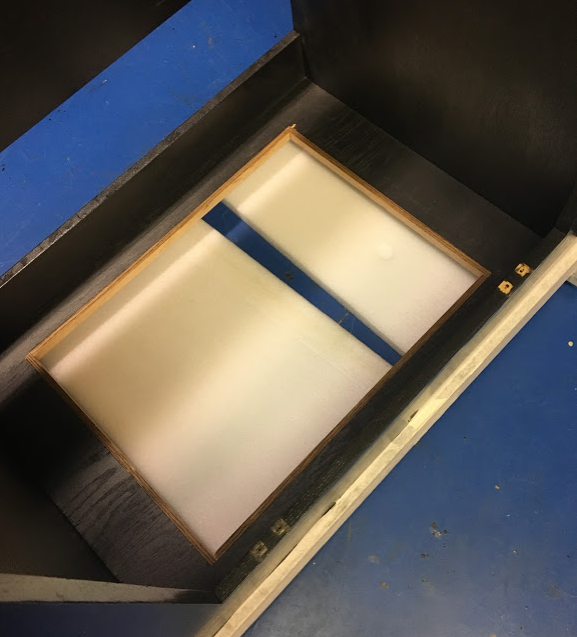

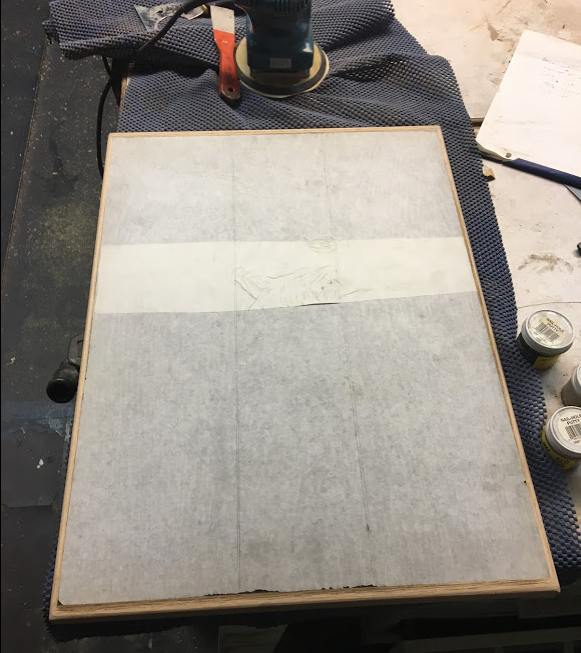

    Oak trimmed door with masking still applied from when I cut it out of the side of the stand.
    Trim was attached with wood glue and pin nails.
    Screen Shot 2016-12-15 at 3.29.42 PM.png

    To strengthen the side of the stand I decided build and inner face frame to reinforce the side. I got to use my domino cutter to make these mortise and tenon style joints.
    Screen Shot 2016-12-15 at 3.27.21 PM.png

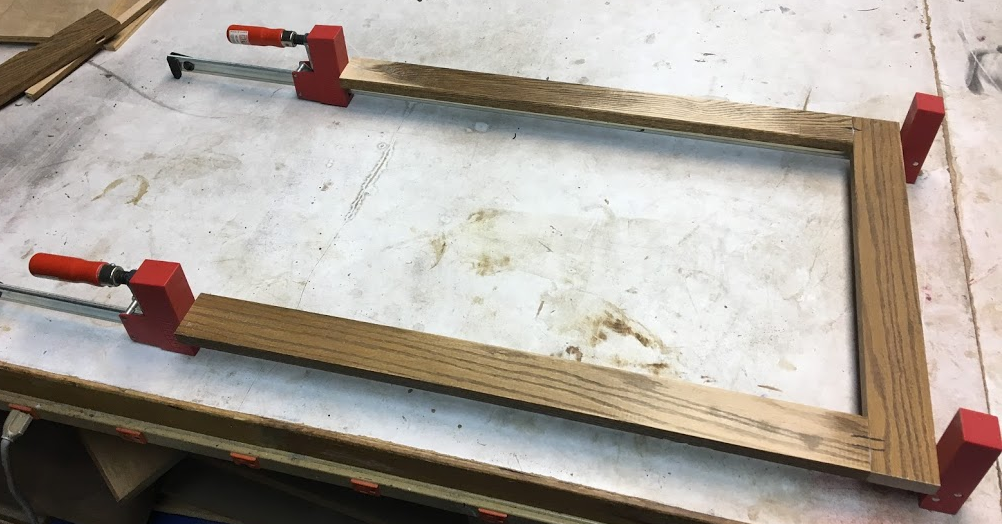

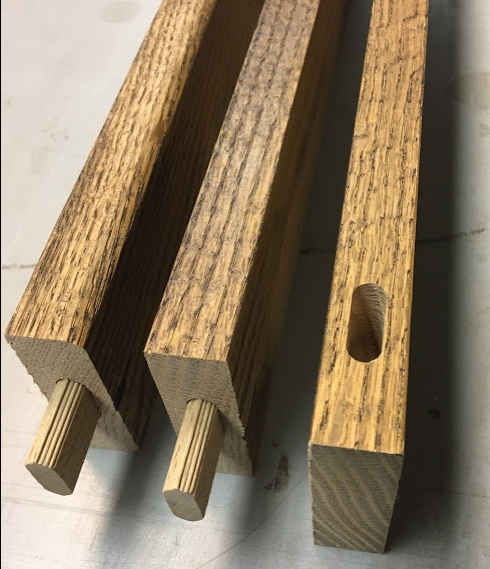

    Dominoed, glued and clamped
    Screen Shot 2016-12-15 at 3.27.37 PM.png

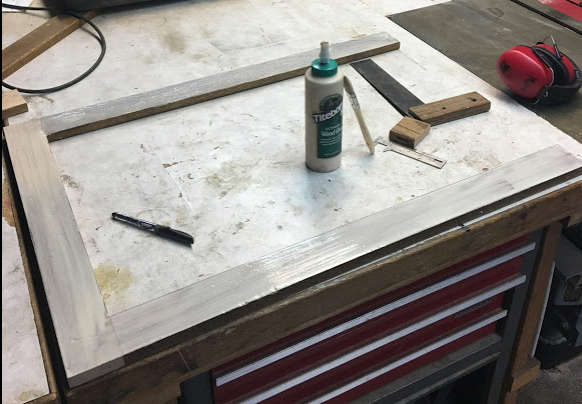

    Here you can see the frame is covered in glue and ready to be installed in the stand. I cut Kreig Jig pockets for screws into the opposing side of the piece. See next pic.
    Screen Shot 2016-12-15 at 3.27.58 PM.png

    Frame installed in the stand. There are screws in every oval slot and a couple extra screws straight in across the top and near the top sides.
    Screen Shot 2016-12-15 at 3.28.40 PM.png

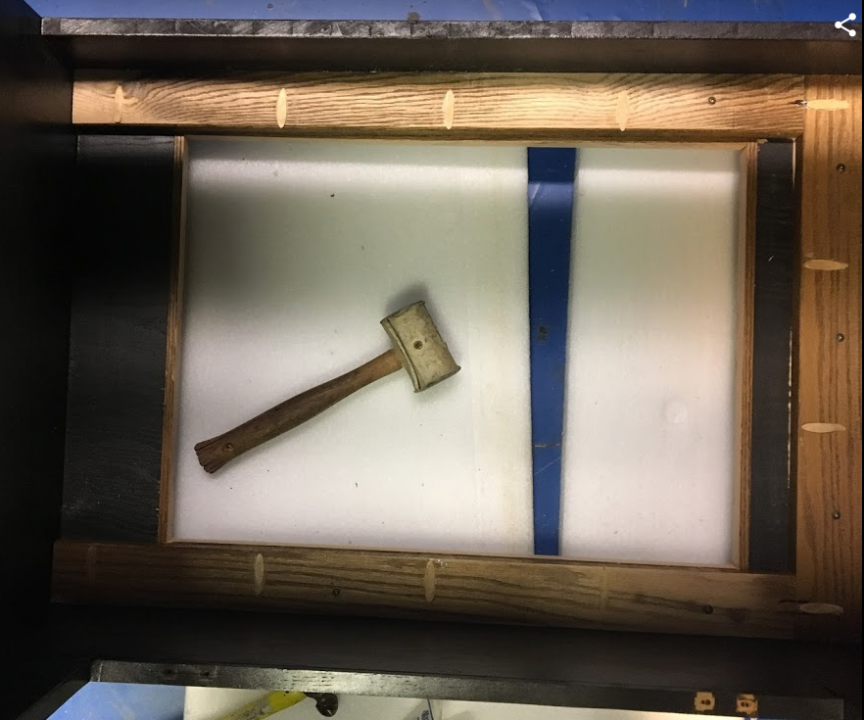

    Here I've glued angle cut dowels in all the screw slots. I'll trim and sand them once dry.
    Screen Shot 2016-12-15 at 3.28.56 PM.png

  7. Flagg37

    Flagg37 Officer at large

    Festool skilsaw and domino; you've got expensive taste in tools.

  8. roostertech

    roostertech reef noob

    I want to get some Festool stuff, just because, but so far I can't justify going beyond Dewalt/Milwaukee lol. Nice work as always. Why 3 sides and not all 4?

    Chromis likes this.
  9. coral4me

    coral4me Supporting Member

    Good question. My main goal was to reinforce the top of the stand under the tank after the section of wall was removed. So the top piece is essentially a header like you'd find over a window or door. The two sides support and hold the header from the ground up. Although, it would be stronger with a forth piece across the bottom. I decided it would be strong enough without it. I wanted to have more floor space inside the dry section of the stand for equipment and storage.

  10. wpeterson

    wpeterson Webmaster

    Congrats to you and @Ashalye on the imminent arrival! I'm also jealous of this tank in a big way - the DSA 105 is a great size/layout and they're out of business now.

    This sump design looks very cool and the quality of work here is impressive.

    Keep the thread updated, I'm excited to see how it goes.

    coral4me likes this.
  11. MolaMola

    MolaMola Supporting Member

    I am enjoying your build journal and thought I'd stop lurking. I also have a DSA 105 and love its dimensions since I was limited to 4' length. I am NOT pleased to hear DSA went out of business along with my warranty, but that would be a different thread. I look forward to more updates about your tank build

    coral4me likes this.
  12. Ashalye

    Ashalye Webmaster

    Matt has made good progress on the sump and plumbing lately. Our baby arrived before the tank was finished though. Today we went to Neptune Aquatics and got some lighting tips from Robert, so baby M got his first visit to our LFS.

    [​IMG]

  13. sfsuphysics

    sfsuphysics Supporting Member

    Congrats guys, figured something was coming when you both went quite :D

    Cherish these moments, my guy is a few weeks away from his first birthday and it didnt seem that long ago I was chatting you guys up at MACNA while mine was not even crawling at the time

    You did good mom

    Newjack and Ashalye like this.
  14. Newjack

    Newjack Supporting Member

    Congratulations Asia & Matt!
    I have to agree, "you did good mom"
    Enjoy motherhood

    Ashalye likes this.
  15. Flagg37

    Flagg37 Officer at large

    I see you've got him in front of the sps tank.

    Chromis likes this.
  16. coral4me

    coral4me Supporting Member

    Picking up where I left off with the build thread.

    I decided to paint the inside of the stand white and make an interior wall for the electronics.

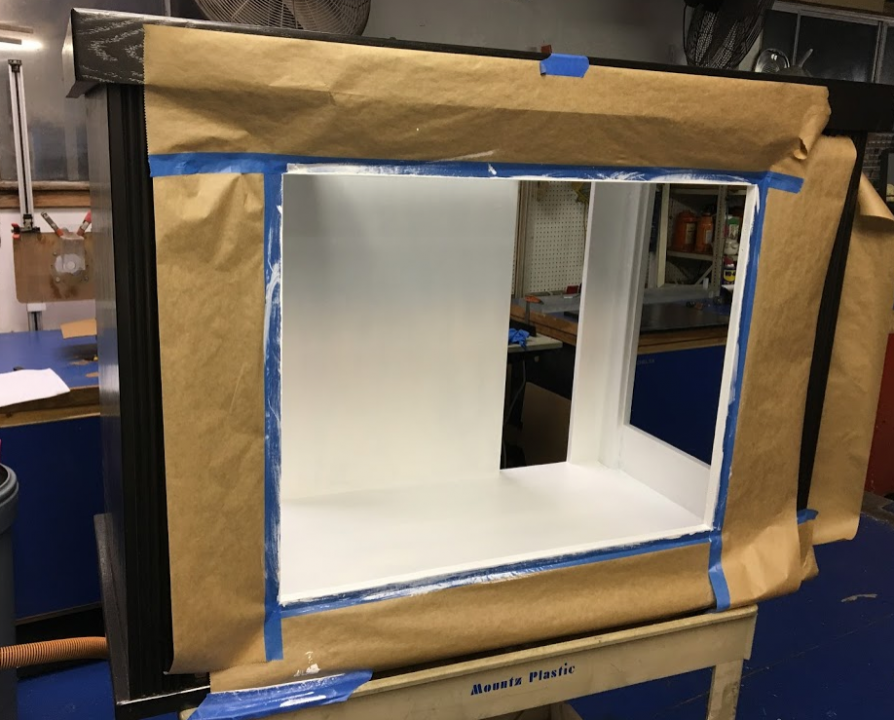

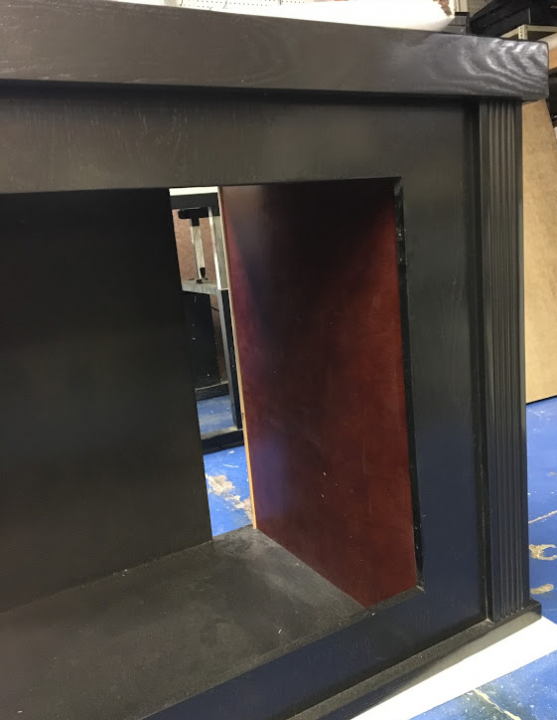

    Screen Shot 2017-03-28 at 12.48.12 PM.png
    Screen Shot 2017-03-28 at 12.52.39 PM.png
    Screen Shot 2017-03-28 at 12.48.41 PM.png

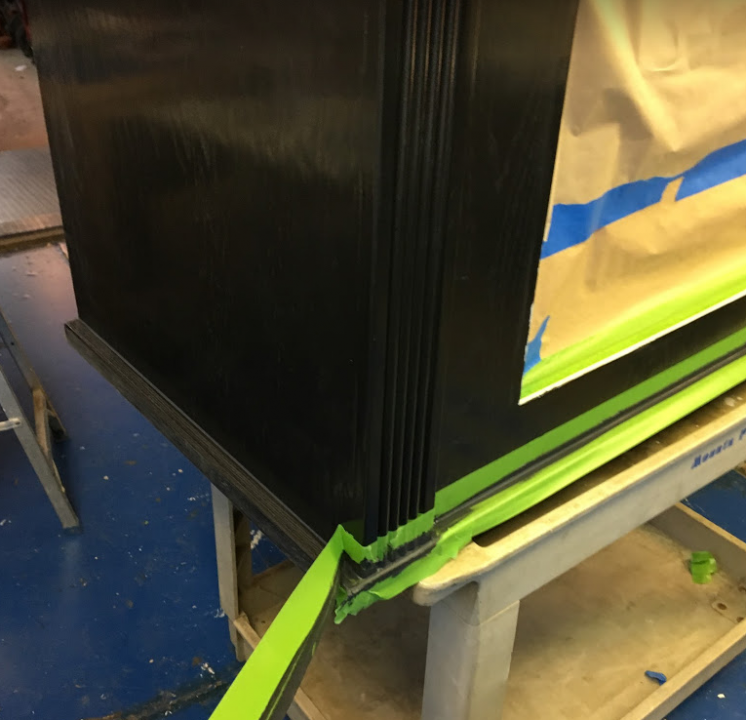

    Apply black caulk around lower trim to keep out water.
    Screen Shot 2017-03-28 at 12.54.36 PM.png
    Screen Shot 2017-03-28 at 12.54.20 PM.png

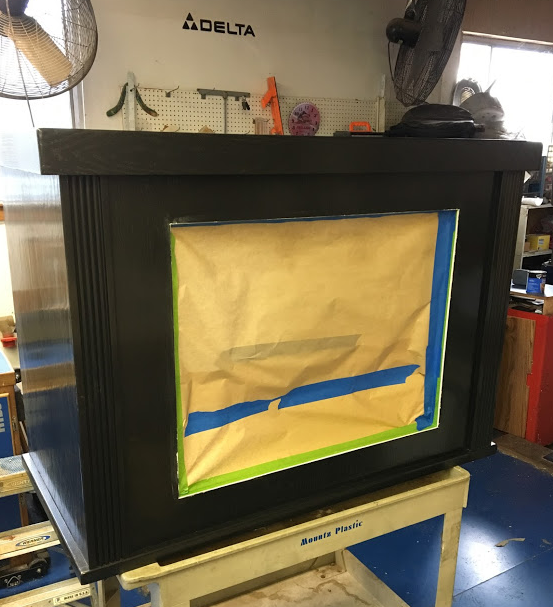

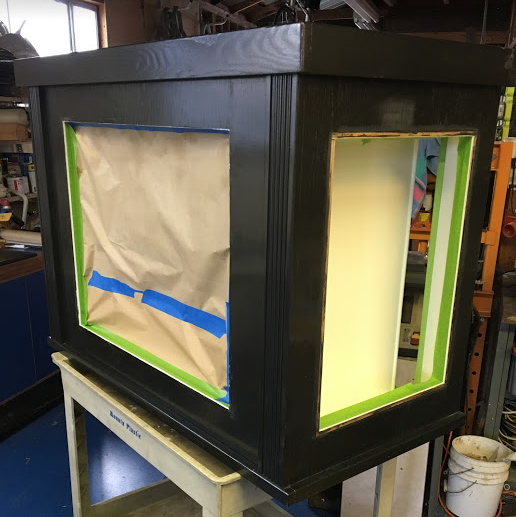

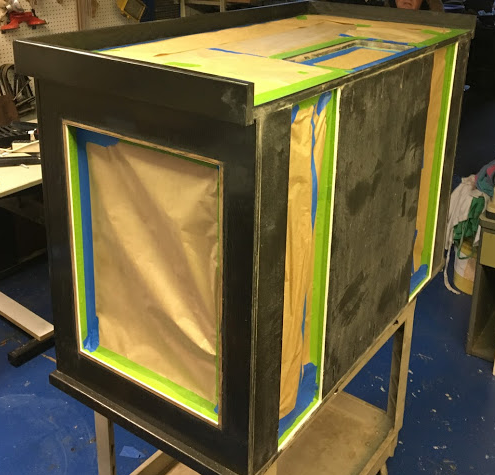

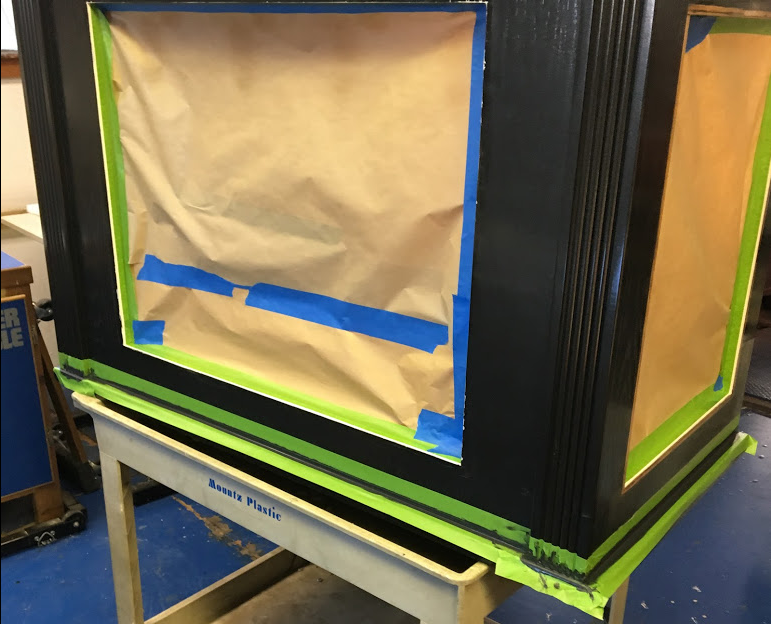

    Now to prep for final coat of paint
    Screen Shot 2017-03-28 at 12.54.01 PM.png
    Screen Shot 2017-03-28 at 12.53.31 PM.png
    Screen Shot 2017-03-28 at 12.53.10 PM.png

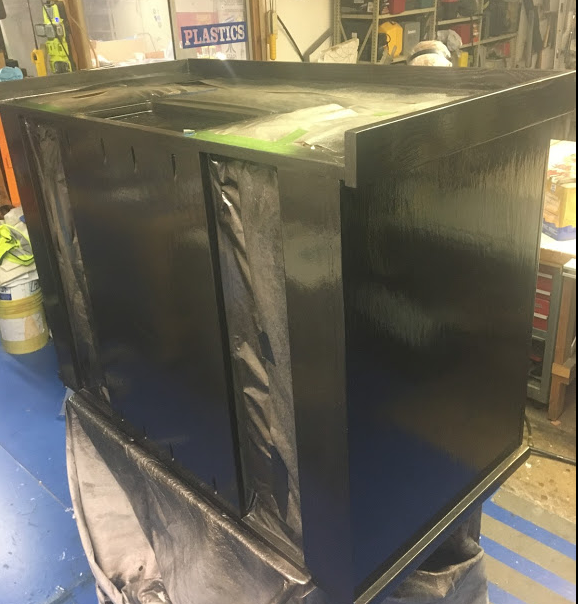

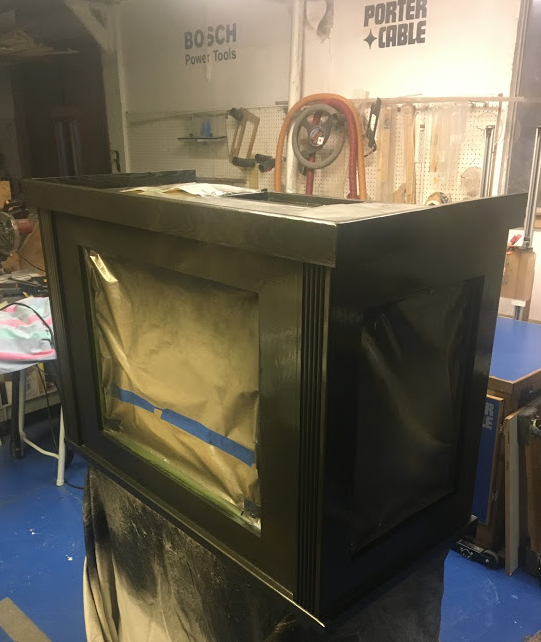

    After painting
    Screen Shot 2017-03-28 at 12.55.59 PM.png
    Screen Shot 2017-03-28 at 12.55.40 PM.png

  17. coral4me

    coral4me Supporting Member

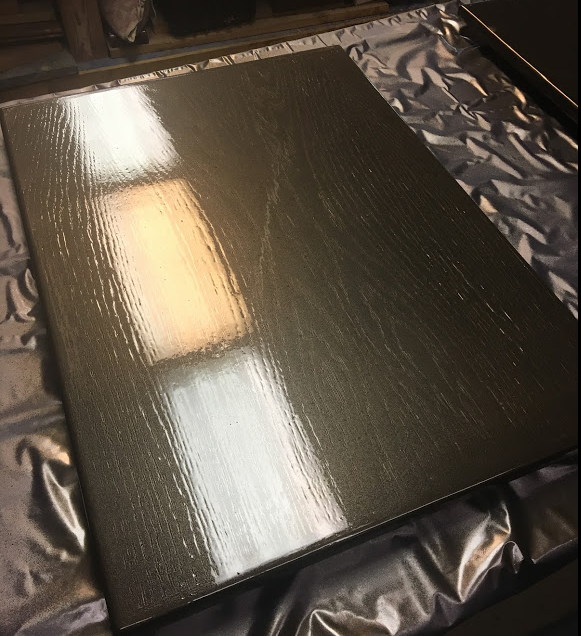

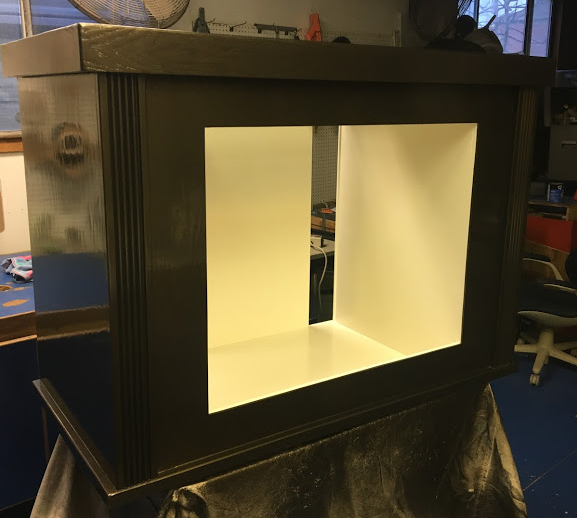

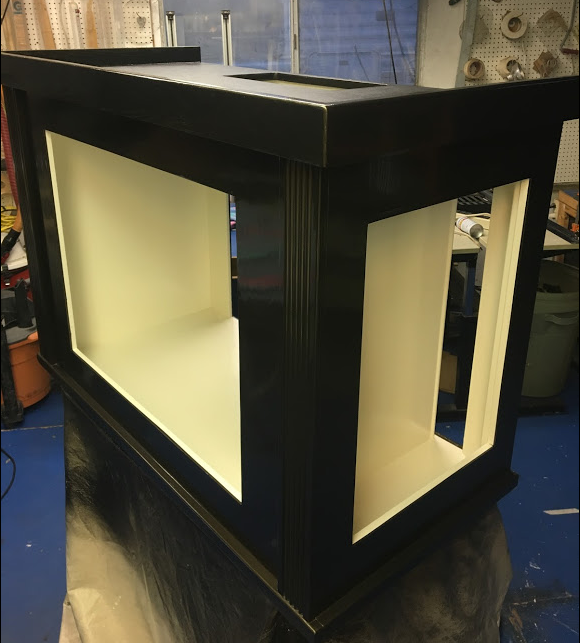

    After the paint was dry
    Screen Shot 2017-03-28 at 12.56.40 PM.png
    Screen Shot 2017-03-28 at 12.56.30 PM.png
    Screen Shot 2017-03-28 at 12.55.15 PM.png

    rygh and Newjack like this.
  18. roostertech

    roostertech reef noob

    Shiny!

    How are you planning to mount the electronics? On the wall? Or there will be another control panel?

  19. coral4me

    coral4me Supporting Member

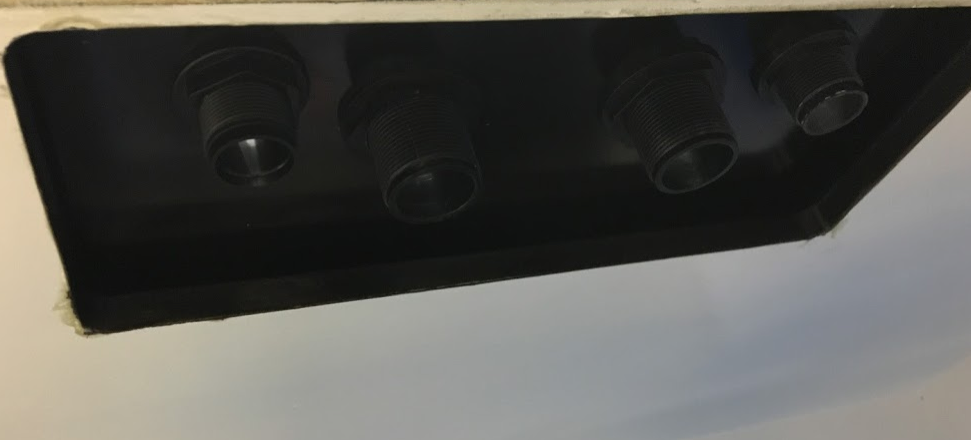

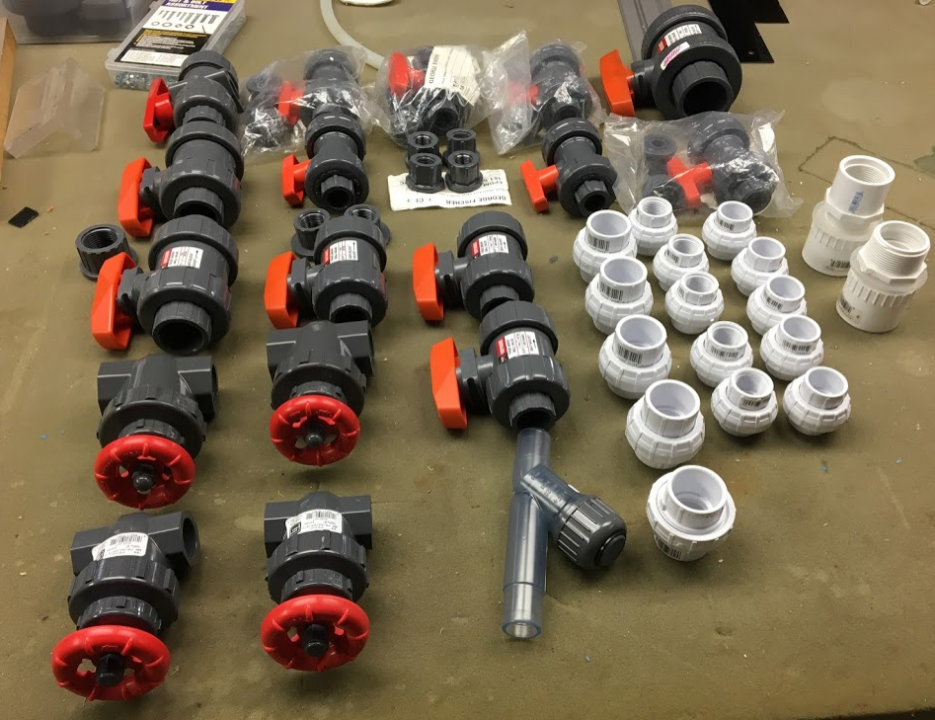

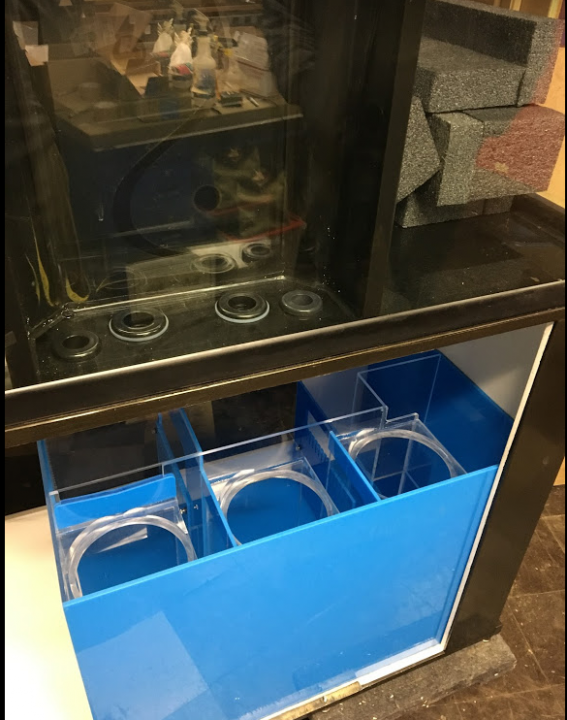

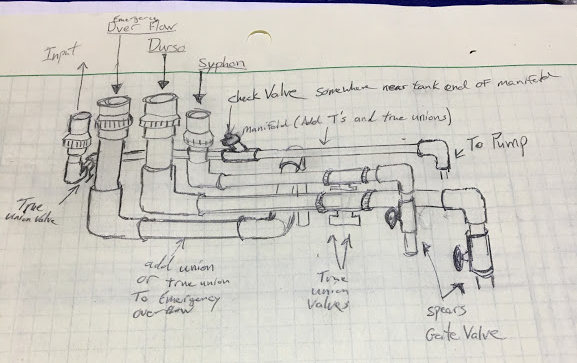

    Who's ready for plumbing?
    Screen Shot 2017-03-28 at 1.14.33 PM.png
    Screen Shot 2017-03-28 at 1.14.57 PM.png Screen Shot 2017-03-28 at 1.15.19 PM.png Screen Shot 2017-03-28 at 1.15.07 PM.png

  20. coral4me

    coral4me Supporting Member

    Not sure, I haven't got that far. I was just going to attach the electronics with stainless steel screws to the wall and run a wire manager down the middle. Let me know if you have some other ideas.
