Our DSA Neo 105 Build

Discussion in 'Tank Journals' started by coral4me, Dec 1, 2016.

  1. Paratore

    Paratore Guest

    Joined:
    Feb 19, 2017
    Messages:
    21
    Likes Received:
    7
    I really like your sump and the stand looks really good, nice work!

    coral4me likes this.
  2. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    It would have been neat to do a control panel on the side window and run wire into grommets. But since you'll have a little one going around touching every knobs soon that won't work so your original plan would be best. What kind of door are you putting on the side?

  3. Ashalye

    Ashalye Webmaster

    Joined:
    Mar 11, 2015
    Messages:
    245
    Likes Received:
    174
    Yea. We're going to have to put the magnet latches on the doors like you did!

    coral4me likes this.
  4. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    I made the side door out of the same piece that I cut out from the side of the stand. Then I trimmed it with oak to build the dimensions out larger than the hole and painted it to match the stand. It looks just like the doors on the front. In the post above, I think the picture of the painted door is actually the side door.

    Last edited: Mar 28, 2017
  5. Kmooresf

    Kmooresf Supporting Member

    Joined:
    Nov 16, 2011
    Messages:
    1,397
    Likes Received:
    427
    Beautiful build. Very well thought out.


    Sent from my iPad using Tapatalk

  6. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,832
    Likes Received:
    1,023
    Good call on the side panel for electrical. Was/am going to do that with my tank (if I ever get around to getting one)

    Your "siphon" pipe looks impossibly drawn at the end, seems to go behind and in front of the "durso" pipe :D

  7. Ashalye

    Ashalye Webmaster

    Joined:
    Mar 11, 2015
    Messages:
    245
    Likes Received:
    174
    I thought that too, but I think it's actually above/in front of the other 2 pipes. The perspective is weird.. :p

  8. Ashalye

    Ashalye Webmaster

    Joined:
    Mar 11, 2015
    Messages:
    245
    Likes Received:
    174
    Actually, looking at the drawing again now I don't know. Hahaa. It's like a MC Escher drawing. :D

  9. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,554
    Likes Received:
    951
    Time to break out SketchUp.

  10. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175

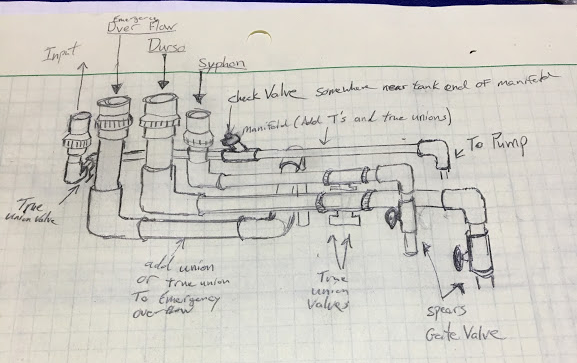

    The drawing is actually correct, but it does play with your eyes if you don't know that the two smaller bulkheads on the outside are in front of the two larger ones in the center. The outer ones are closer to you and they form a trapezoid. Doesn't really matter I just needed to draft out something before starting the plumbing. The actually plumping went in slightly different than my drawing but most of the design and valve placement was retained.


    Sent from my iPhone using Tapatalk

    Last edited: Mar 30, 2017
  11. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,460
    Likes Received:
    718
    Why do you have 2 valves each on Durso pipe + Siphon pipe?
    Seems like you might want a union in spots for disassembly, but only one valve needed.
    For that matter, why are there any valves on the Durso pipe?

    Nice cabinetry work. You sure like pocket holes. :)

  12. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    Set the desired flow rate with the gate valves, then use the ball valves to shut on/off without having to change the gate valve settings. In the upcoming plumping posts you'll see that I did add unions as you suggest. Good eye for design!

  13. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,460
    Likes Received:
    718
    Ok, except for those pipes, there is really nothing to shut off.
    If you are working on the drains, you will have to shut off your return pump anyway.
    Once that happens, water stops on its own.
    Extra valves generally do not hurt, just trying to simplify.

  14. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    Maybe over kill, but they have been helpful especially in testing the system to simulate a clogged drain. I have unions between the gate valves and the ball valves. When I service the sump and take the gate valves off at the union, it's nice to close the rest of the drain line at the ball valve just in case something happened, like the return pump started or the stand pipe in the overflow box got pulled out while the plumbing to the sump wasn't connected.


    Sent from my iPhone using Tapatalk

  15. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175

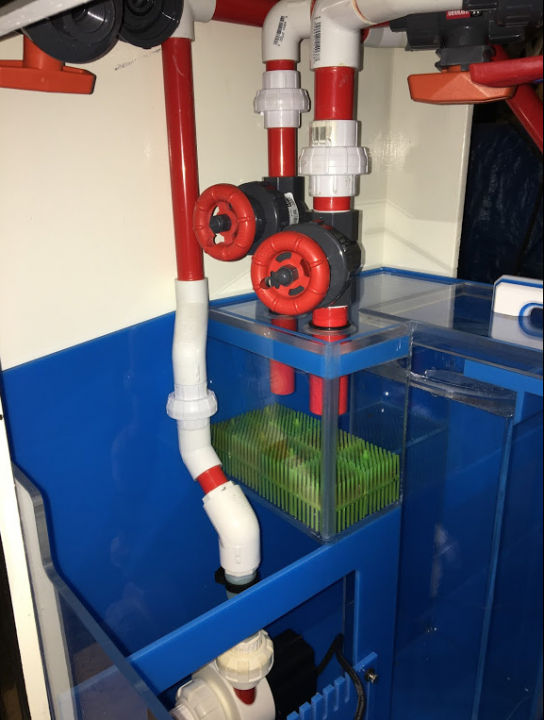

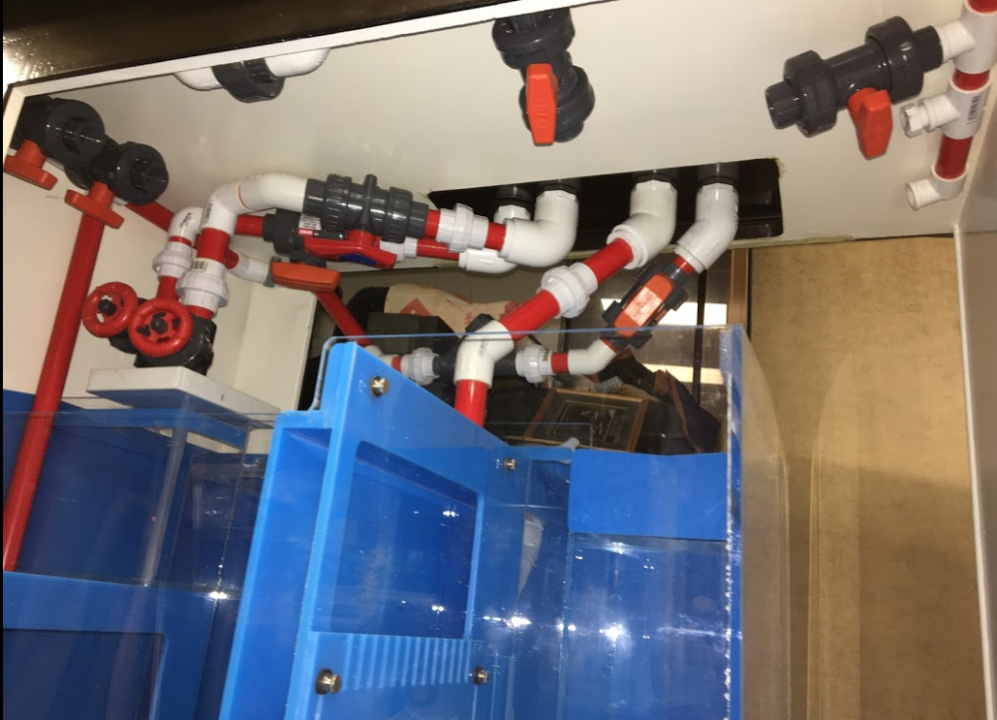

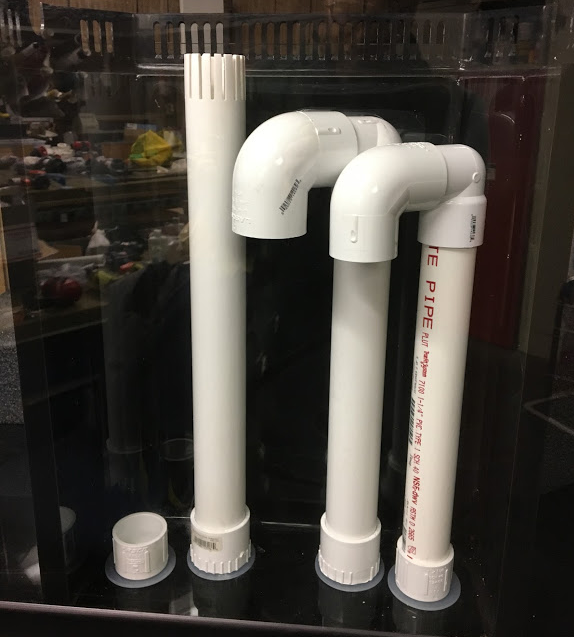

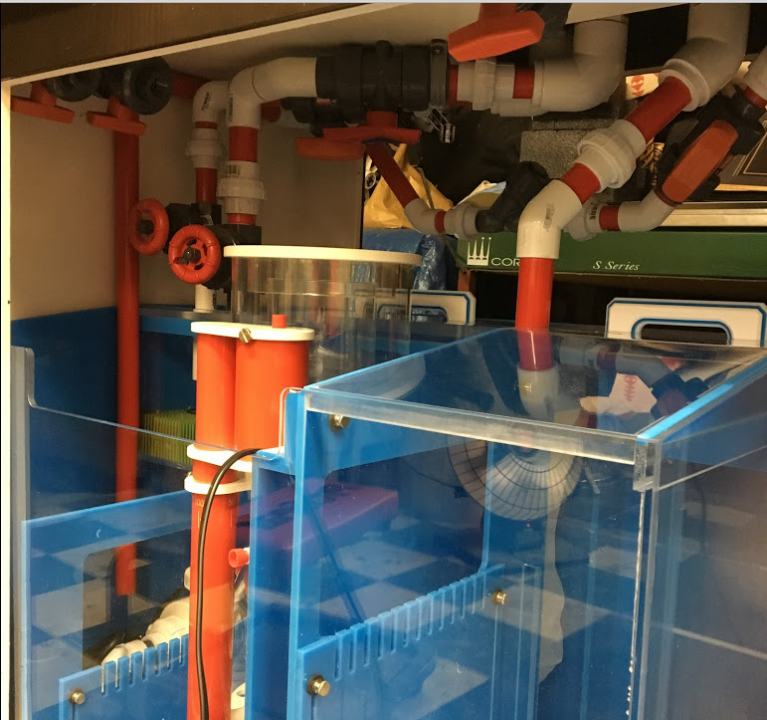

    Sorry to keep you waiting, here are a few pics of the plumbing.
    Screen Shot 2017-03-28 at 1.20.17 PM.png Screen Shot 2017-03-28 at 1.19.53 PM.png Screen Shot 2017-03-28 at 1.19.17 PM.png

    Screen Shot 2017-03-28 at 1.18.47 PM.png

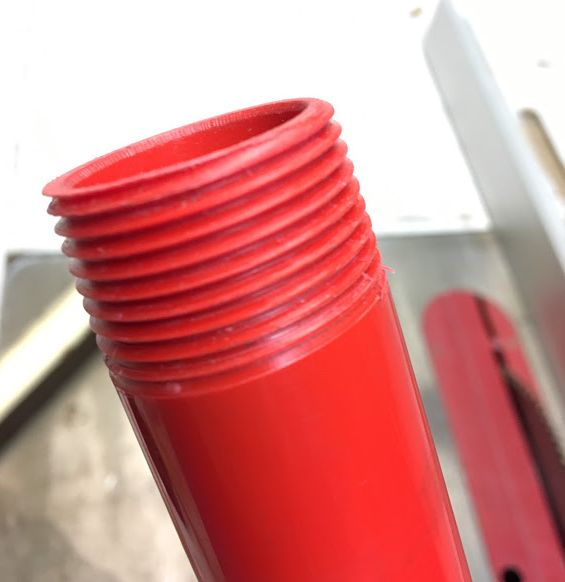

    One of my Spears Gate Valves was threaded, so I had to thread the Red PVC. It wasn't easy but it came out nicely.
    Screen Shot 2017-03-28 at 1.18.16 PM.png

    livingwaterplanet likes this.
  16. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    The pipe inside the wier is not RED?! Redo!

  17. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    LOL, yeah I considered painting it, but it can't be seen now that it is against the wall.


    Sent from my iPhone using Tapatalk

    Last edited: Mar 30, 2017
  18. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,832
    Likes Received:
    1,023
    Can't see it, but you'll know it's not red!!!!

    Great work Matt, I swear that sump craftsmanship rivals most professionally made sumps, except the Dreambox, that thing is just in another class by itself (but then again you pay for it!)

    Newjack and coral4me like this.
  19. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,460
    Likes Received:
    718
    Very nice!!
    A maze, but a well organized and colored maze.
    I must admit, my white pipes with random purple splotches from the primer just do not compare.

    Now lets see - which threaded joint is hardest to get to... probably the back one on the left.
    Yep, that will be the one to drip.
    :)

  20. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175

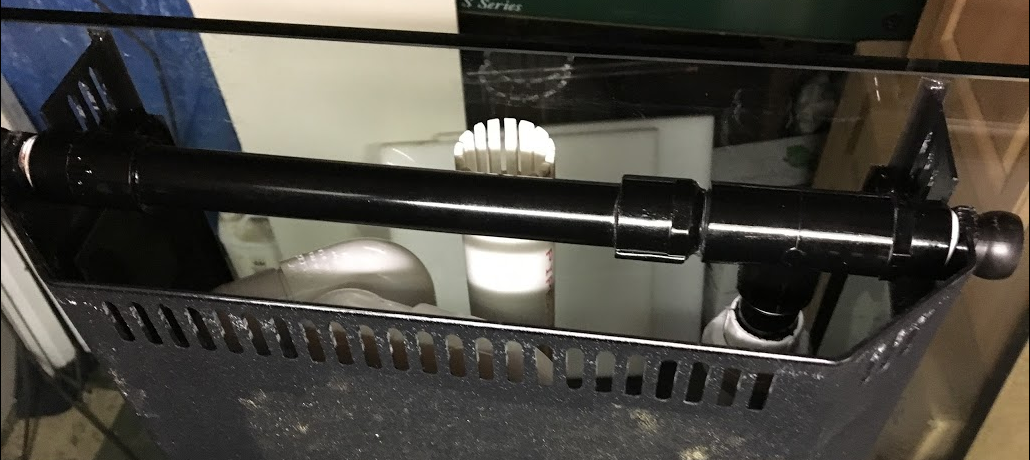

    Finished up the plumbing for the return (painted black to match Lok-Line). Installed a union to make for easy access to the drains if needed. It has been a real hope. Love the union there, it can be seen easier in the next photo.
    Screen Shot 2017-04-04 at 4.05.10 PM.png

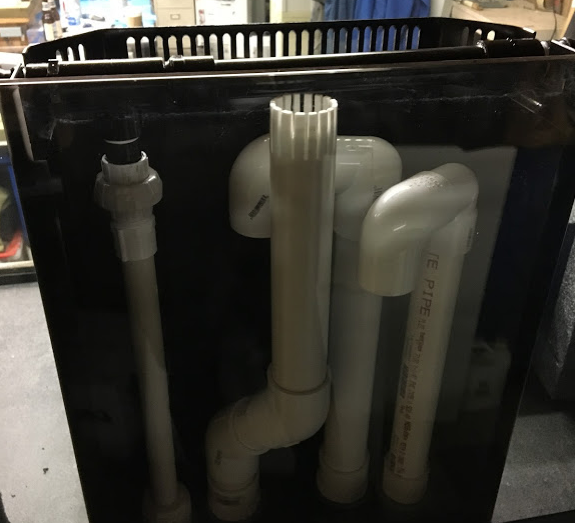

    Added 45 elbows to the emergency standpipe, to provide more room to run the return to both ends of the overflow box.
    Screen Shot 2017-04-04 at 4.05.52 PM.png

    Screen Shot 2017-04-04 at 4.06.35 PM.png

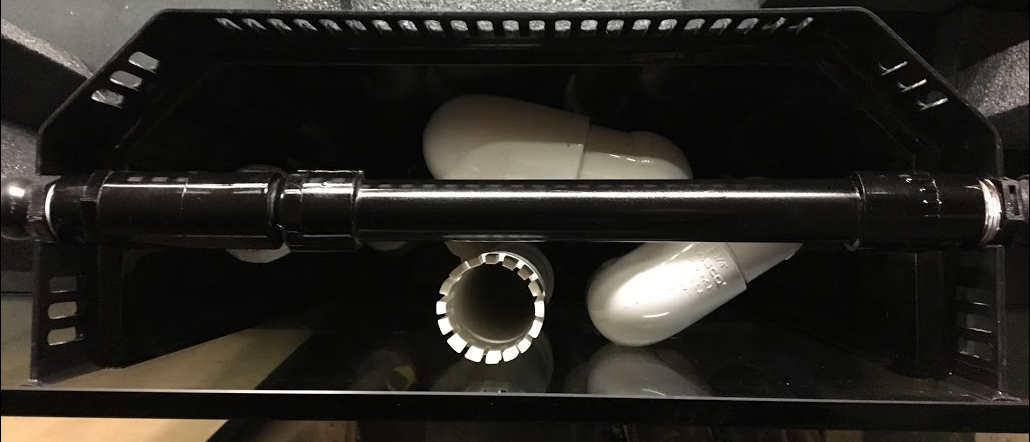

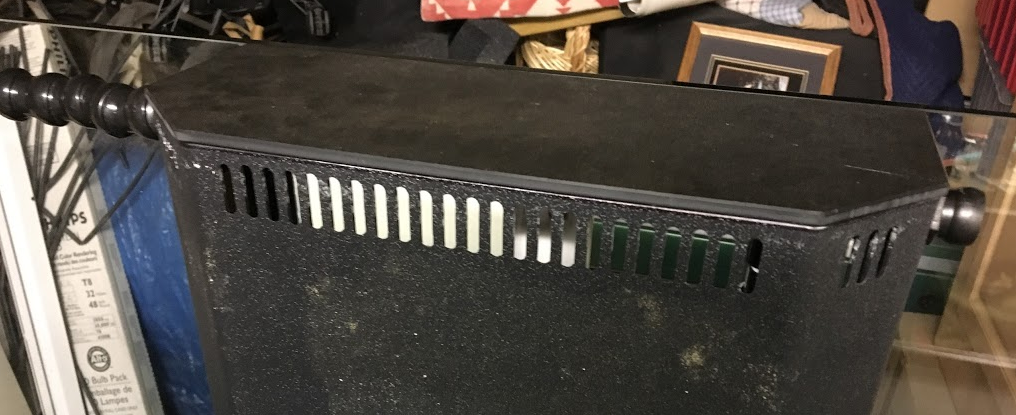

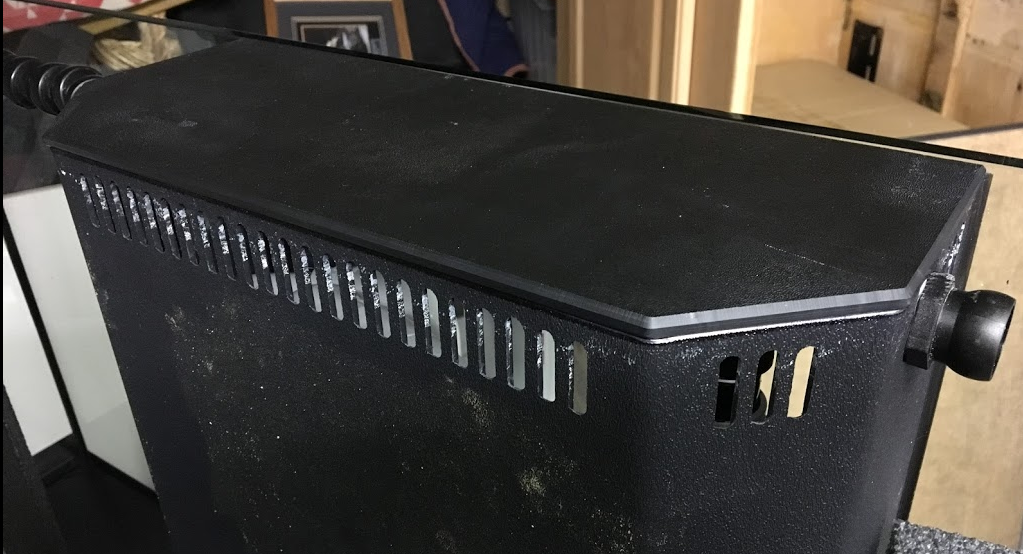

    I made a lid for the overflow, doubles as a nice shelf while working on the tank or acclimating a coral.
    Screen Shot 2017-04-04 at 4.09.11 PM.png

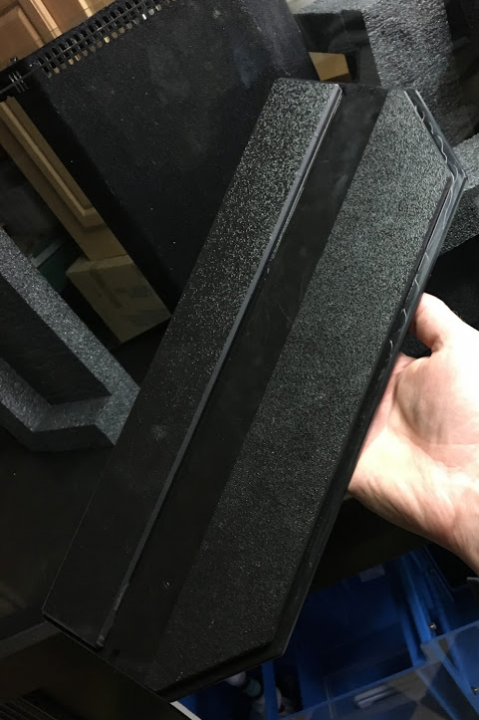

    Bottom of lid, center channel allows the lid to nest in around the return pipe that runs across the top of the overflow.
    Screen Shot 2017-04-04 at 4.09.21 PM.png

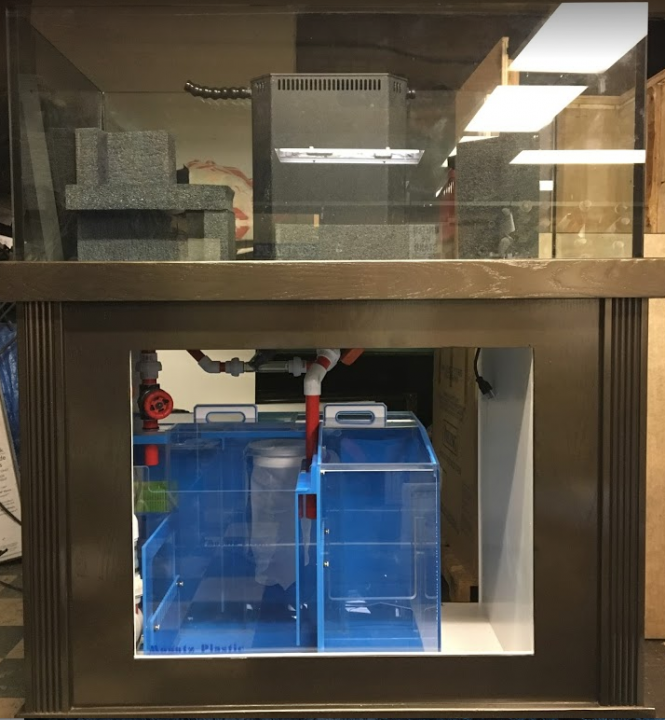

    Note you do not see a lot of plumbing when you look at the tank and stand straight on. The majority of the plumbing is routed as high up in the stand as possible to allow for maximum access to filter socks and to get equipment like skimmers and reactors in and out with ease.
    Screen Shot 2017-04-04 at 4.08.08 PM.png
