Overflow build for a non-drilled tank

Discussion in 'DIY' started by coral4me, May 19, 2016.

  1. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    449
    Likes Received:
    157

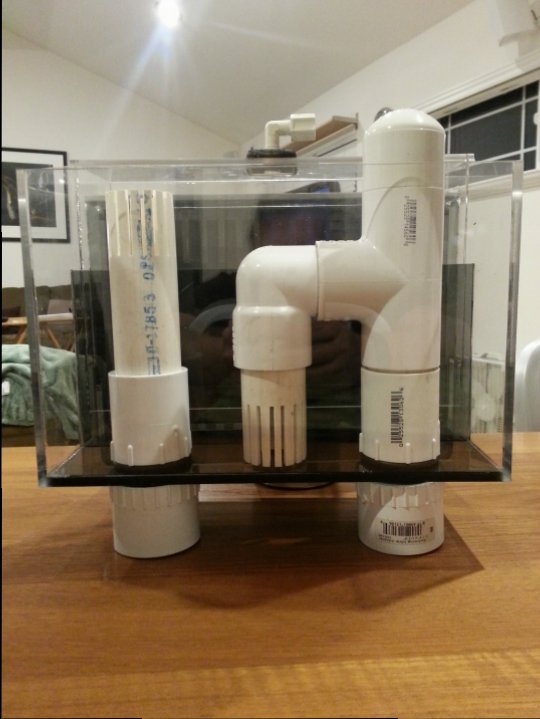

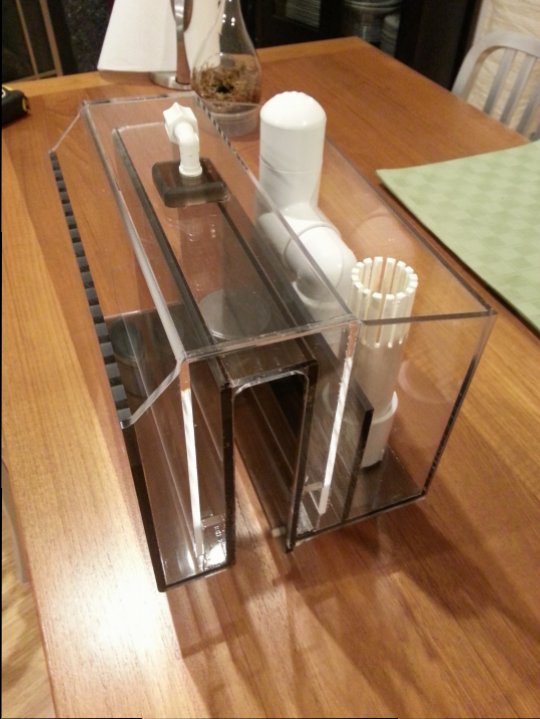

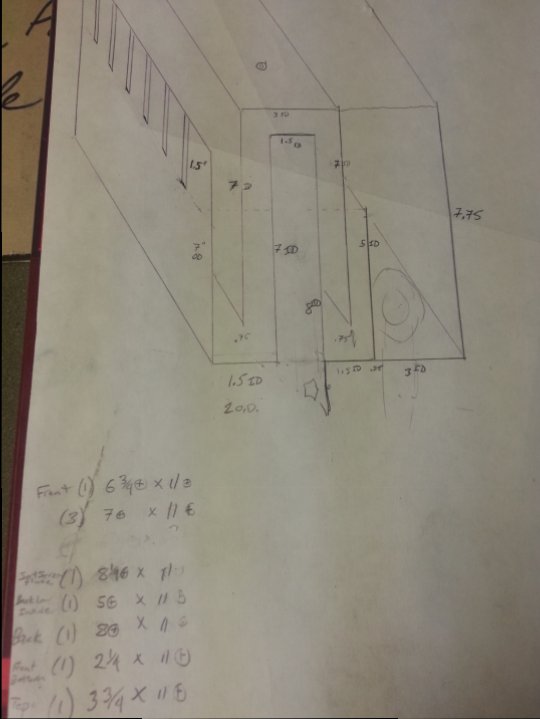

    A friend of mine bought a DIY sump kit off Amazon and then tried to make a DIY overflow out of PVC pipe. To say the least, it was a serious headache of constant fine tuning to keep it running. So one week I decided to make him a hang-on the back overflow.

    IMG_20150916_204553.jpg IMG_20150916_204532.jpg IMG_20150919_025857.jpg IMG_20150919_025923.jpg IMG_20150919_030013.jpg

    wpeterson likes this.
  2. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    Very nice, how do you cut the acrylic? Laser cutter?

  3. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    449
    Likes Received:
    157
    Thanks!

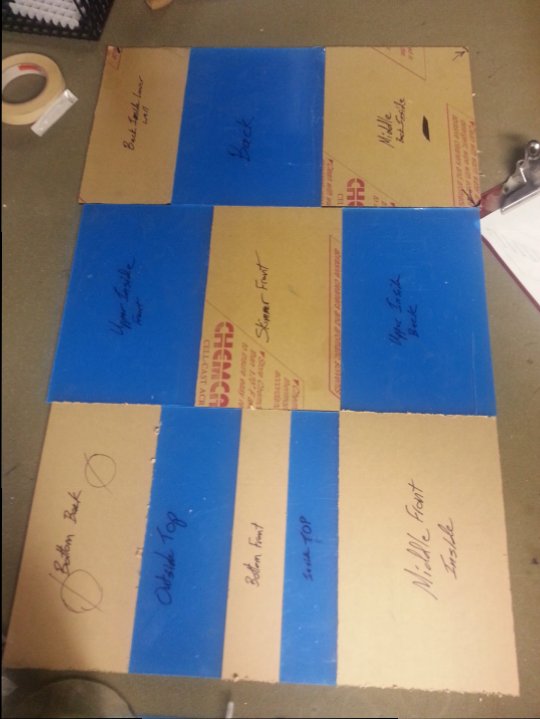

    Initial pieces are sized on a 10" tablesaw using a 60 - 80 tooth triple-chip carbide blade. All edges to glued are trimmed with a fence and router. After gluing, the remaining saw cut edges are trimmed with a flush trim router bit (router bit with bearing on top). I chose not to flame polish, because it actually stresses the acrylic and can ultimately lead to crazing (stress cracks).

  4. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    I could use a friend that can work acrylic. :p

    Man I need to carve out some space to set up routing table. I've been trying to trim route stuff by hand and it never turn out well lol.

  5. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    449
    Likes Received:
    157
    I could probably help, or at least give you some advice to what's going wrong.

  6. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,857
    Likes Received:
    820
    I'm assuming you have to have an external pump to keep it primed?


    Sent from my iPhone using Tapatalk

  7. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    For the teeth part, did you run a few cut each on the table saw? How did you make the inner edge clean.

  8. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    The connector at the top.

  9. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    449
    Likes Received:
    157

  10. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    449
    Likes Received:
    157

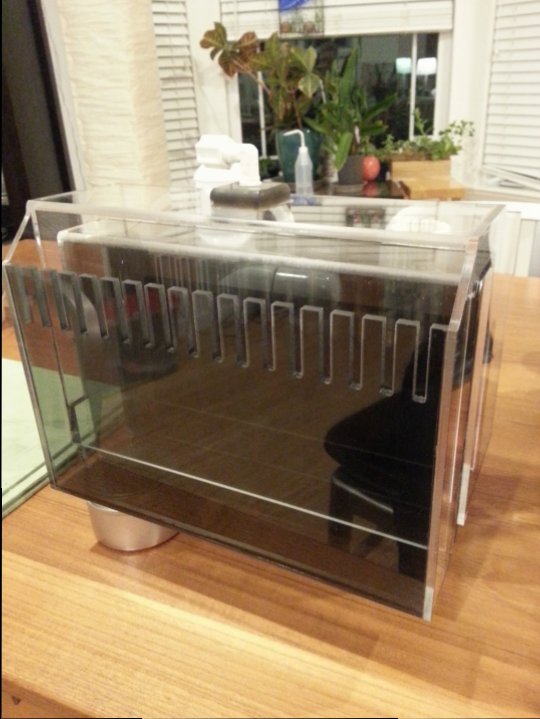

    For the teeth I used a 1/4" dado. How I made it clean? Lots of practice.

  11. Newjack

    Newjack Supporting Member

    Joined:
    May 27, 2015
    Messages:
    601
    Likes Received:
    202
    practice makes perfect! I can't believe you DIY'd that. Looks freakin bad a**.

    wpeterson likes this.
  12. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,565
    Likes Received:
    1,123
    Looks crazy nice, very impressed! Is it a glass tank? Otherwise why not drill it.

  13. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    449
    Likes Received:
    157
    Yeah, it was a glass tank that was already setup.

  14. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,349
    Likes Received:
    906
    So how exactly does it get water up and over the edge? I know the thing on top was referenced but how does it work?

  15. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,857
    Likes Received:
    820
    Should be like the CPR hob overflow box


  16. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    449
    Likes Received:
    157
    Sorry I missed the seeing the question. Thanks Vince for answering the question and providing the video.
