Plumbing mock up...

Discussion in 'Equipment' started by Klems, Jan 8, 2017.

  1. Klems

    Klems Supporting Member

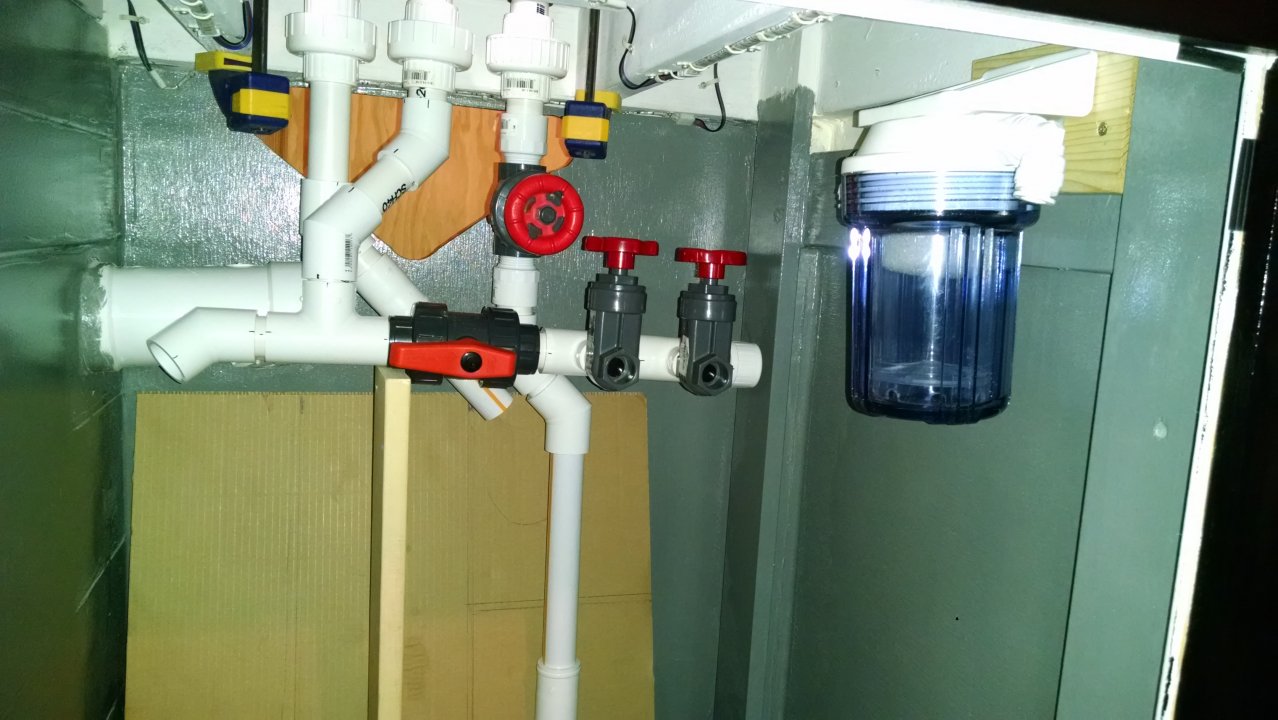

    Here is the test fit of the plumbing...How does it look? Left is emergency drain... Middle is return and right is main drain... Will be adding another union to both return just above pump and also on the main drain above where filter sock will be... One gate on the manifold for the reactor and other is for future need. Am I missing anything, should I make any changes?

    Thanks
    Ken
