reef-pi 1.0 release

Discussion in 'DIY' started by Ranjib Dey, Dec 12, 2017.

  1. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160
    Hello Bay Are Reefers,
    I am excited to announce the immediate availability of first public release of reef-pi, a DIY opensource reef tank controller based on Raspberry Pi. Over the past one year reef-pi several community reefers have built and provided valuable feedback to improve this project, and currently it offers following features

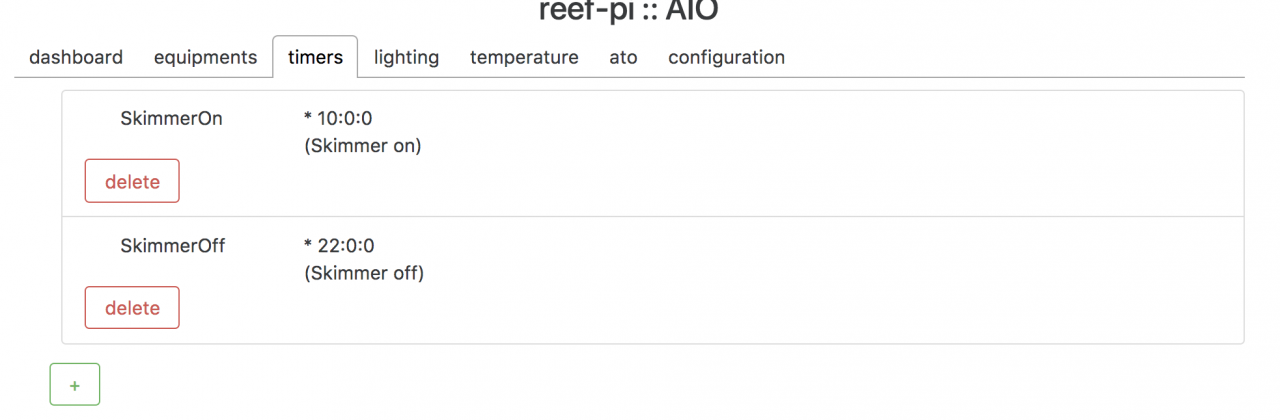

    1. Equipment control (power bar) and timers [upto 16 outlets and any number of timers]
    2. LED light control (day light cycle)
    3. Auto Top Off (using photoelectric sensor or float switches)
    4. Temperature control
    5. A dashboard of all the above-mentioned features and alerting.

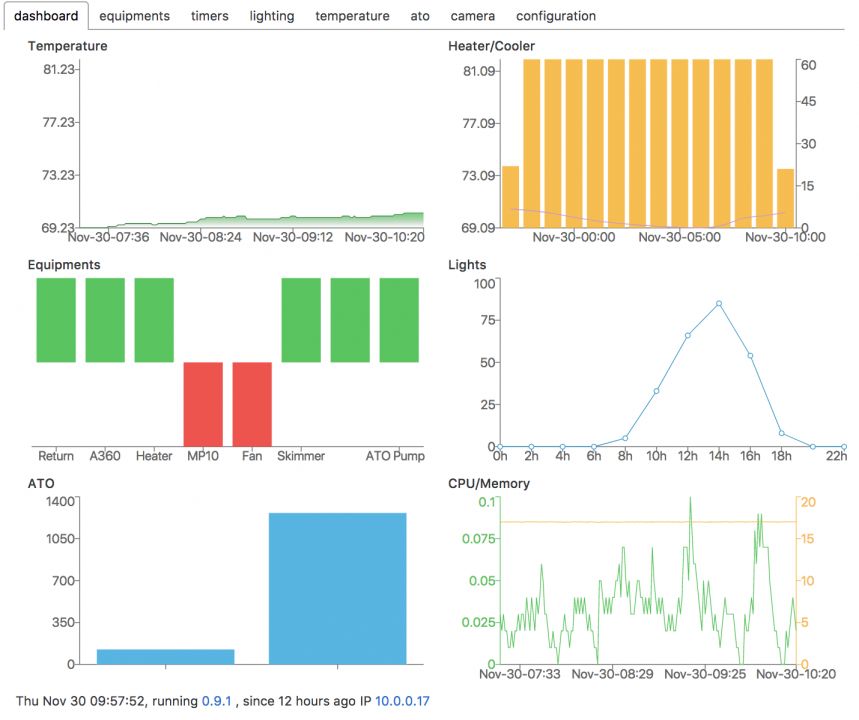

    Following is a screenshot of reef-pi dashboard

    Detailed build instruction and documentation can be found here: http://reef-pi.com
    best
    ranjib

    daddio, rygh, roostertech and 2 others like this.
  2. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,485
    Likes Received:
    724
    If you ever want to build an Alkalinity-Tracker into that, send me a PM.
    Not a direct alkalinity "measurement" per se, but something fairly crude that tells if your Alk goes up/down too much.
    Which is really all you need.

    Back when I was on a DIY-Controller kick, I had a decent plan for one, but never got around to it.
    Of course, plan != working.

    Ranjib Dey likes this.
  3. daddio

    daddio Supporting Member

    Joined:
    May 14, 2017
    Messages:
    1,735
    Likes Received:
    559
    Congrats!

  4. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160
    I'll keep you posted. I have pH, doser, wave maker planned up for 2.0 release (will have two milestone, 2018 Makerfaire & X-Mas). Then I'll try to take a stab at Alk, I know certain ways to do that, but I need the doser module nailed first. Alk/Ca monitoring will involve automating the titration bits, which in turn involves a doser/peristaltic pump. I know we can get a hacked up version going quicker, but I want to be throrough, come up with something reliabile and maintainable, and back it up with proper docs and bill of materials.Hopefully the community will also grow a bit more by then.

  5. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160
    Thank you :)

  6. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160
    got my 1.0 build done yesterday, dashboard
    Screen Shot 2017-12-26 at 6.51.37 PM.png

    ashburn2k likes this.
  7. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,853
    Likes Received:
    1,030
    Out of curiosity how are you detecting/changing(?) power cycles on your equipment? You say power bar, but is this just one of the "name brand" (Neptune, etc) power bars that you hack with the Pi?

    Ranjib Dey likes this.
  8. capescuba

    capescuba Supporting Member

    Joined:
    Jan 14, 2005
    Messages:
    1,615
    Likes Received:
    71
    Looks sweet - I might poke around with this when I get some time!

  9. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160
    its a DIY powerbar. Which is basically a wooden housing with bunch of receptacles mounted and a relay. The realy in turn is controlled by Raspberry Pi. The reef-pi software provides timer functionalities , and temperature controller style equipment on/off


  10. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160

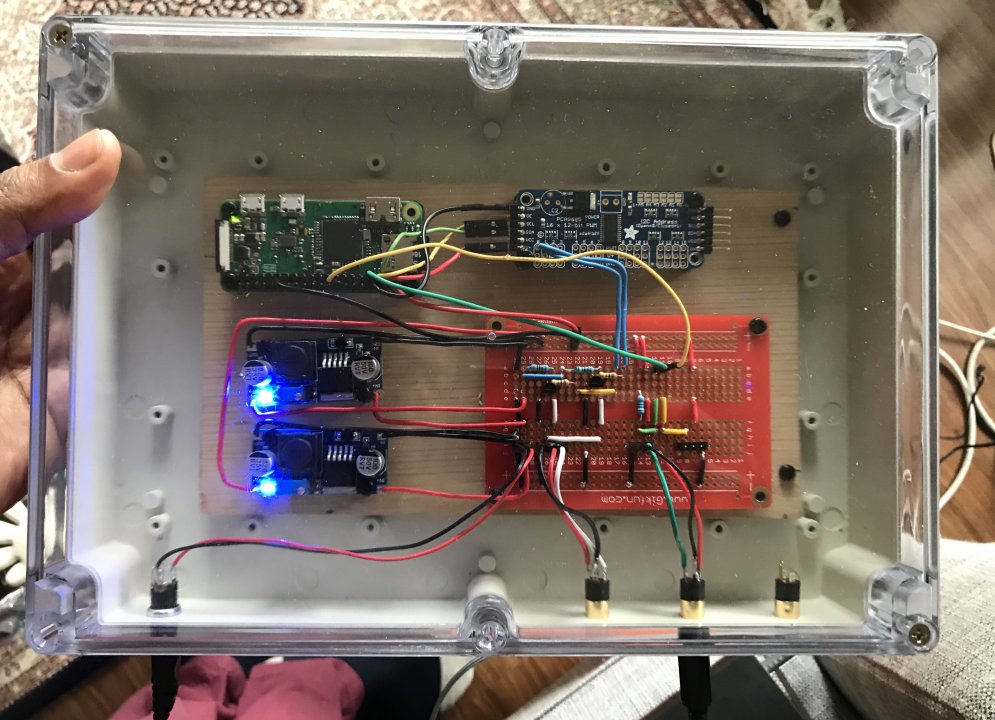

    Controller unit

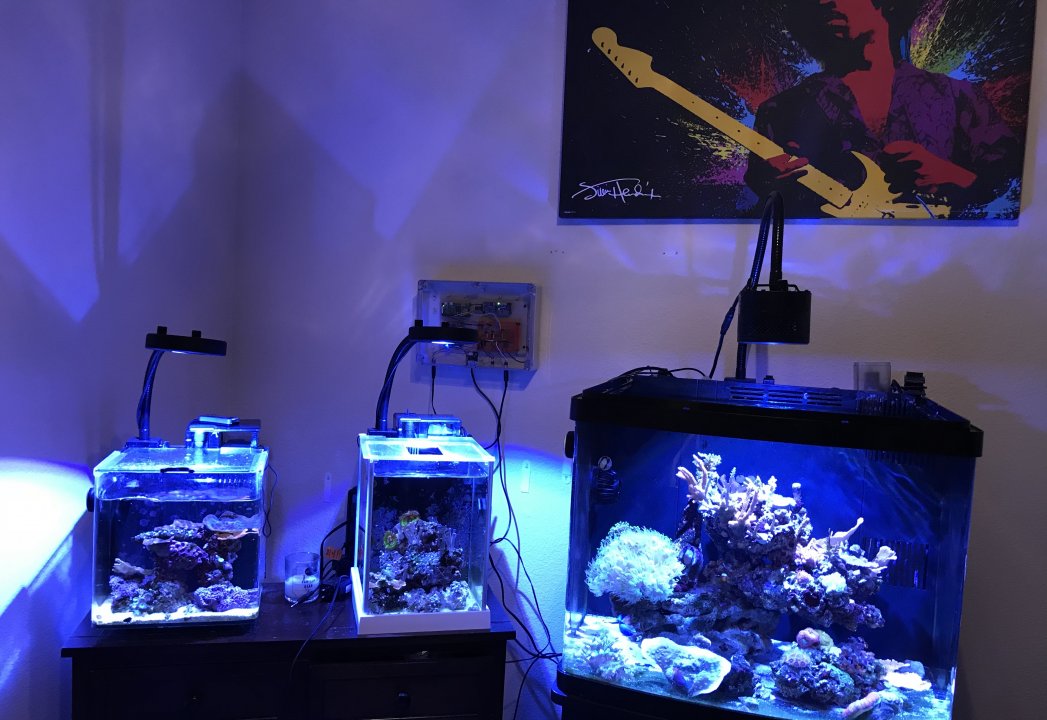

    In service

    rygh likes this.
  11. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,853
    Likes Received:
    1,030
    That's super cool.

    Well except the "wooden housing" for your power bar? That's a big no-no.

    Ranjib Dey likes this.
  12. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160
    Yeah, I need to do a better job for that housing. I am thinking of modding a triplite power strip with individual switches.

  13. RandyC

    RandyC Supporting Member

    Joined:
    Aug 20, 2016
    Messages:
    1,267
    Likes Received:
    566
  14. daddio

    daddio Supporting Member

    Joined:
    May 14, 2017
    Messages:
    1,735
    Likes Received:
    559
  15. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160
    I have used the single outlet version of these. They are good. But very inconvenient, you'll have wires connected to them. The single ones are particularly interesting, you can stick a 10$ pi zero and have a controllable (digital timer, web interface etc) outlets.
    The one that @Mark B suggested is better. I am looking for something wallmounted/hob style.. not something that i can mount inside my stand., since its relatively small, 29G biocube stand.

    I am not very sure if its too risky for me. My tanks are nano or pico, and I really dont have way too many equipments. Each tank is powered by separate outlet/powerstrip al together. Some equipments (like LED) are not at all connected to the controller unit. I am looking for mostly DC equipment in future (like dc returns,wave makers etc), and I think I can just do away with something similar to a compute SMPS.. we'll see. for the time being something similar to what mark shared is my first choice. I am hacking with this one, as we speak

    https://www.homedepot.com/p/Tripp-L...rve-Energy-Surge-Protector-TLP76MSG/203796169

  16. daddio

    daddio Supporting Member

    Joined:
    May 14, 2017
    Messages:
    1,735
    Likes Received:
    559
    I have a bunch of tools (and garage) if needed? I am down by Whipple Ave.

  17. Ranjib Dey

    Ranjib Dey Webmaster

    Joined:
    Mar 27, 2016
    Messages:
    395
    Likes Received:
    160
    Thanks for the offer :) . If you are interested, I'll be giving away at least couple of reef-pi builds during 2018 maker faire.

    I have a dremel, a scroll saw, few other tools (drill bits) .. but my challenge has been to find a powerstrip inside which i can mount a 8 channel relay. Something like this: https://www.sainsmart.com/products/8-channel-5v-relay-module

  18. daddio

    daddio Supporting Member

    Joined:
    May 14, 2017
    Messages:
    1,735
    Likes Received:
    559
    Ranjib Dey likes this.
  19. JVU

    JVU Supporting Member

    Joined:
    Feb 12, 2017
    Messages:
    669
    Likes Received:
    287
    I do like logical operator symbols :)

    Ranjib Dey likes this.
