Trying to fix a broken kessil

Discussion in 'Equipment' started by grizfyrfyter, Jan 11, 2019.

  1. grizfyrfyter

    grizfyrfyter Supporting Member

    Joined:
    Jul 19, 2013
    Messages:
    546
    Likes Received:
    88
    I picked up an A360we that wasn't working. Not much info on why it stopped.

    Power supply shows 19v but drops to less than 1v shortly after.

    Took a risk and plugged the light into one of my power supplies and the fan kicked on for a second but no light output. Fan shut off after a little more than a second.

    Obviously, something is really wrong and there are signs of excess moisture.


    I sent a message to kessil but it's the weekend now.

    Anyone have any skills with this stuff? I know just enough to get in trouble but I like projects like this.

  2. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    Open it up and give it a good clean; if there’s some sort of builup, that might cause the electronics to short.

    grizfyrfyter likes this.
  3. grizfyrfyter

    grizfyrfyter Supporting Member

    Joined:
    Jul 19, 2013
    Messages:
    546
    Likes Received:
    88
    I pulled it apart and cleaned everything. Enough moisture that the dust on the heatsync was almost muddy.

    I didn't see any obviously failed components but I am impressed with the build quality. The boards are all coated to avoid moisture damage.

  4. iCon

    iCon Supporting Member

    Joined:
    Apr 28, 2010
    Messages:
    1,940
    Likes Received:
    177
    I have one that just stopped one day for no reason at all. Investigtors welcome!
    I also have a brand new one that I dropped in the tank while swapping out the one that died...Haven’t tried firing it up yet.

  5. grizfyrfyter

    grizfyrfyter Supporting Member

    Joined:
    Jul 19, 2013
    Messages:
    546
    Likes Received:
    88
    I just bought two of them a few days ago. When I was hanging them over the tank., my wife kindly let me know if I drop it in the tank, I'm fucked.

  6. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    Not sure how the Kessil guts are put together but moisture, specially from saltwater, might seep and corrode electronics badly. A quick rinse in freshwater and drying throughly, can save the electronics

  7. MolaMola

    MolaMola Supporting Member

    Joined:
    Dec 16, 2014
    Messages:
    914
    Likes Received:
    276
    Eeek, I am so very long overdue for deep cleaning mine. For those who do not know, there is a 45-min YouTube video called Kessil University to walk you thru it.

  8. Wlachnit

    Wlachnit BOD

    Joined:
    Jun 3, 2016
    Messages:
    1,231
    Likes Received:
    373
    Over the past couple of years, I've had 3 die on me. I have followed with Kessil to understand this and they told me that they had shorted out most likely due to dust buildup and moisture. So, as I have learned it is important to clean them regularly.

  9. iCon

    iCon Supporting Member

    Joined:
    Apr 28, 2010
    Messages:
    1,940
    Likes Received:
    177
    In other words - Oops, Sorry for the poor design?

  10. jonmos75

    jonmos75 Supporting Member

    Joined:
    Nov 12, 2014
    Messages:
    888
    Likes Received:
    278
    Here is a good video on how to do a deep clean on a Kessil

  11. Bruce Spiegelman

    Bruce Spiegelman BOD

    Joined:
    Mar 12, 2016
    Messages:
    3,818
    Likes Received:
    1,422
    Eek! I've never cleaned mine! Didn't now I had to beyond wiping them down.

  12. Flagg37

    Flagg37 Supporting Member

    Joined:
    Nov 29, 2015
    Messages:
    3,856
    Likes Received:
    1,006
    My ap700’s we’re resting on a piece of glass so I think it was pretty well protected from moisture, but dust is another thing.

    Like @Bruce Spiegelman I only ever dusted them off.

  13. Kensington Reefer

    Kensington Reefer Supporting Member

    Joined:
    Feb 3, 2008
    Messages:
    3,059
    Likes Received:
    361
    I’ve only used cans of spray air to blow them out
    I’ve replaced several.....more than I should IMHO
    Honestly the main reason I stay with the brand is they are geographically desirable

  14. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    13,334
    Likes Received:
    1,138
    Erin, that's been my experience with Ecotech pumps (MP series), I replaced more than I should ... IMHO with what should be a high end pump, meanwhile I got Tunze stream pumps that are 20 years old, and about the only thing that really needs to be replaced on them is the impellers from being a bit "gnawed up" over the years.

  15. grizfyrfyter

    grizfyrfyter Supporting Member

    Joined:
    Jul 19, 2013
    Messages:
    546
    Likes Received:
    88
    I think it's hit or miss with a lot of the stuff. I wish they were more consistent.

    One of my MP-40 is 8 years old, has the old style box controller, and hasn't had any problems. My other one has had the wet side and dry side replaced in the last two years.

  16. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
    Maintenance is a key in equipment failing; evaporation causes condensation and then there's trouble.

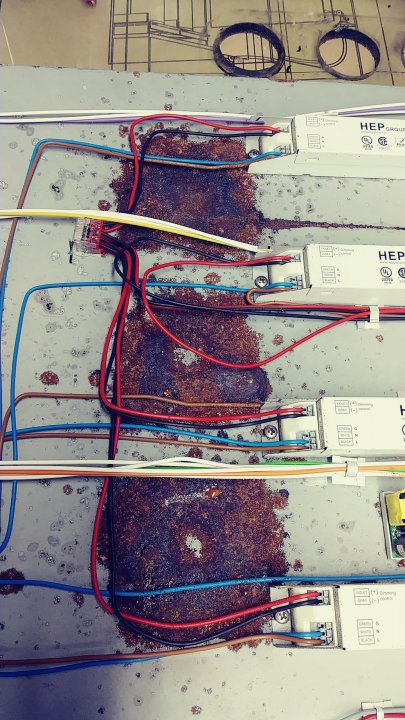

    A light fixture that recently was serviced, had some surface rust; while the fixture is running lamps on, it creates heat so stays mainly dry during those hours of run-time. As the luminaire cools, moisture condensates and is where trouble starts. I detected a "stream" mark running towards a lamp connector but didn't do much about that since the fixture (ATI) kept tripping the GFCI and we were aware two ballasts needed replacement.

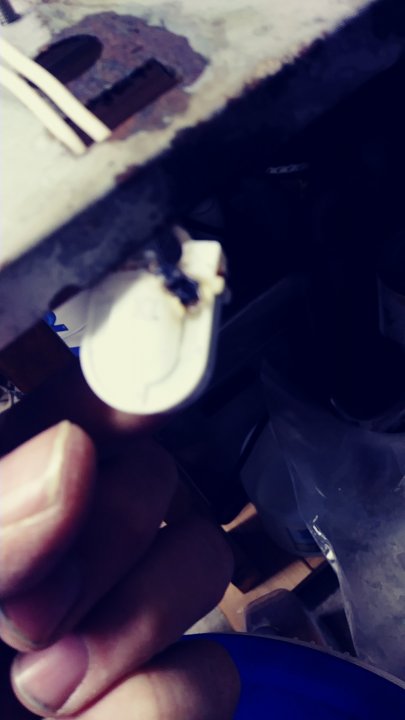

    While the ballasts arrived, I started removing some of the rust and detected some moisture dripping and started to take more things apart; a lamp holder had some greenish buildup, cleaned that (that's the stuff you don't want to fall into your tank and kill all your corals) another lamp socket was black on the outside and BINGO, it had some moisture inside which triggered arching and caused a short between the metal body and the lamp holder. Cleaned it and added some insulation between the socket and metal housing. turned the fixture on and no more tripping of the GFCI; all ballasts worked, and they are the expensive dimming units.
    removed rust with the drill and a wire-brush and the surface was primed; now fixture should be back in use.

    grizfyrfyter likes this.
  17. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,826
    Likes Received:
    438
  18. grizfyrfyter

    grizfyrfyter Supporting Member

    Joined:
    Jul 19, 2013
    Messages:
    546
    Likes Received:
    88
    I exchanged a few emails with kessil. They offered to take a look at it but that alone is $50, not to mention any replacement parts.

    They did offer a new light at a discounted price with a two year warranty.

    Just replaced my return pump though so I probably won't pull the trigger on that for a while. It would be nice to have another a 360 to use on the frag tank and tie in with the display tank kessil program.
