Jeff's 75 gallon Reef Tank Build

Discussion in 'Tank Journals' started by Jeff Rehling, Aug 22, 2016.

  1. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    Hello sage advisors of the reef. Thanks already, and in the future for all your guidance and assistance. This is a difficult and pricey hobby to get started, and I read on these forums..."Ask 10 reefers for their opinion and you get 20!

    75 gallon MarineLand reef ready tank with overflow and return in the bottom. Back painted black per instructions on Marine Depot website.

    Will be adding photos when the sun comes up. Waiting for civilization to awaken so I can sand and paint the stand.

    Handmade stand...about $185 including a new miter say and paint. I think it will hold around 3,000 pounds! Photos to come.

    Adding:

    Sump: Likely DIY from 20L if i can find one cheap.

    Skimmer...no idea yet

    Return Pump: No idea

    Lights and heater...no idea

    Power heads...no idea

    So excited...

  2. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,579
    Likes Received:
    965
    Sump, figure out your foot print you can actually get into your stand first. Sometimes people forget with doors, the opening, etc that you can't fill the entire stand's internal foot print. If you do a sump, look at some of sumps at bulk reef supply to get an idea of a good make up. Before you think of getting a sump (whether store bought or DIY) get a skimmer first because you want to make sure that fits in the sump.

    As to everything else, DC pumps tend to be quieter than AC pumps, plus you can throttle them down without putting any undue head pressure. But AC pumps have many more options. Just make sure you get a pump that is made to pump water vertically, i.e. no maxijets.

    You'll figure everything else out though :)

  3. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    what makes this more exciting to me is the fact that I lived on Guam for two years and did just over 200 scuba dives

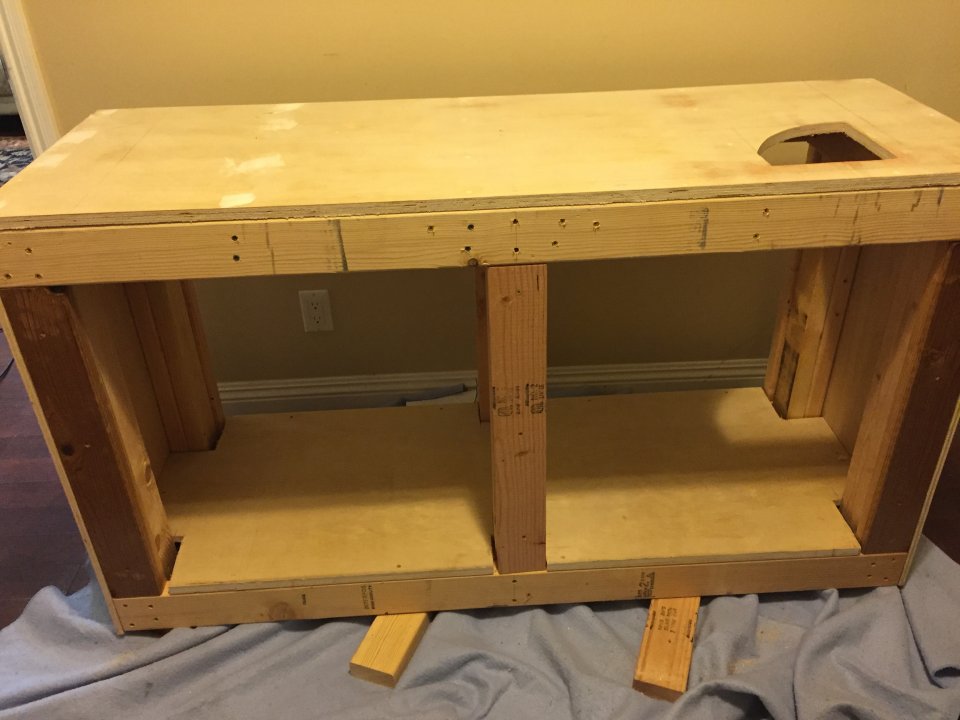

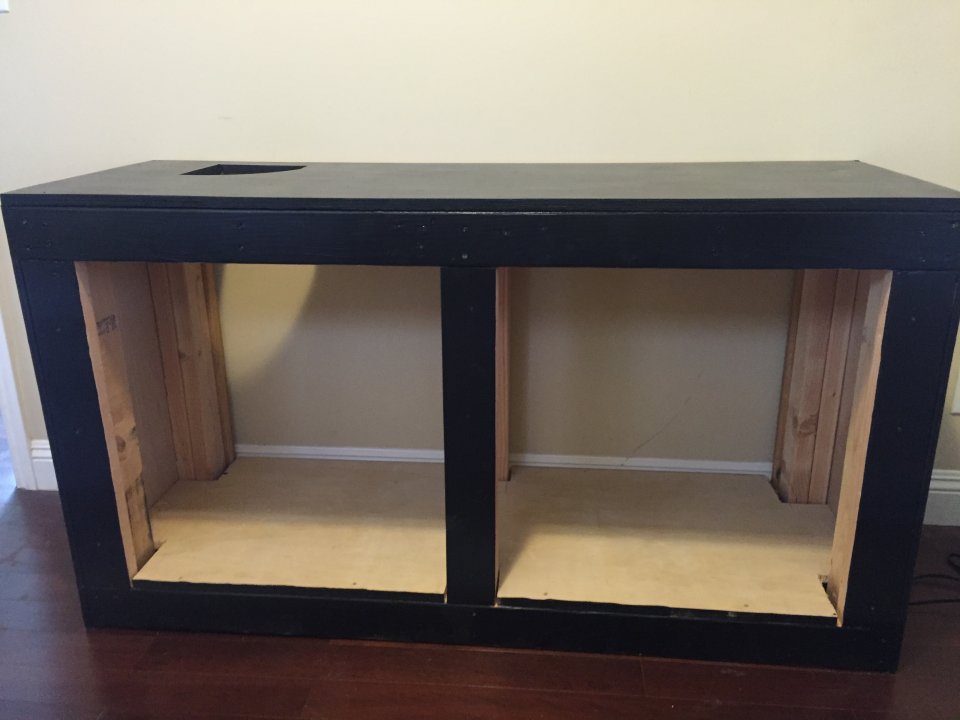

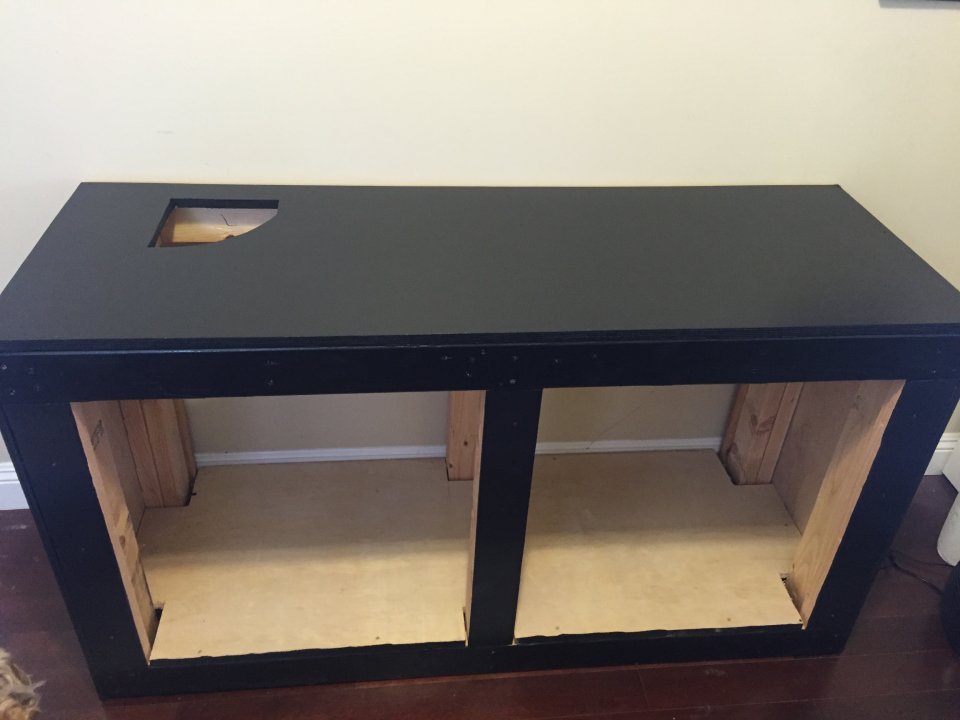

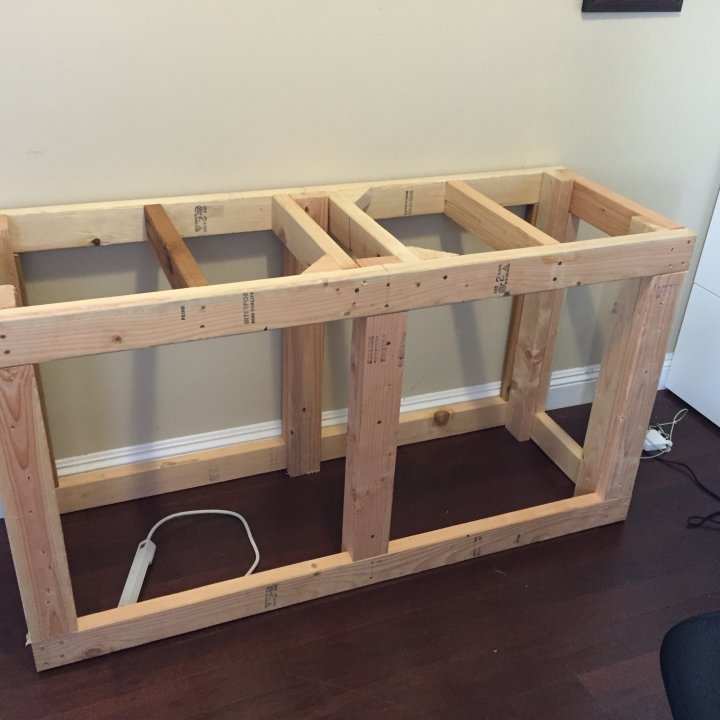

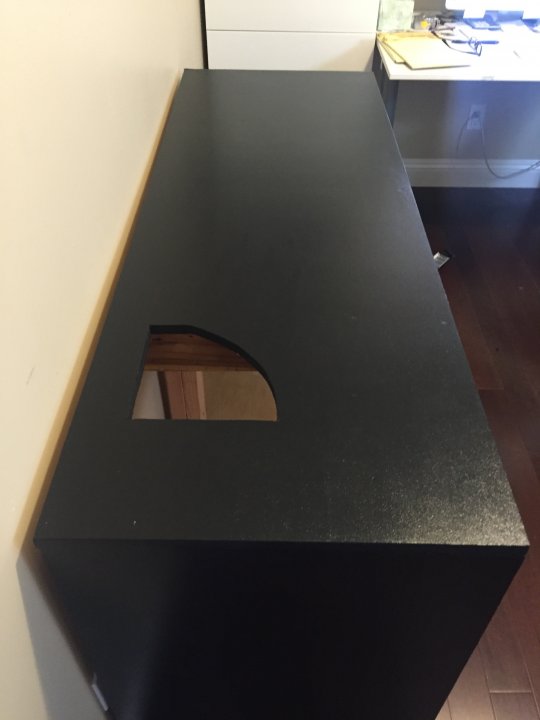

    My tank stand...from incubation to ready to perform


    Attached Files:

  4. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,579
    Likes Received:
    965
    might want to paint the inside of your stand too, tends to be quite a bit of humidity and what not in there

  5. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    Yes, you are correct. that's this weekend's chore. Planning on paint and polyurethane.

    going to face frame the stand with SF Giants orange. Doors will be black with the SF emblem on each one.

  6. Vincerama2

    Vincerama2 Evil Overlord

    Joined:
    Nov 22, 2005
    Messages:
    1,823
    Likes Received:
    82

    EXACTLY! I bought a used stand and it was overbuilt, to the point that there was wood where there didn't need to be which SIGNIFICANTLY reduced the size of the sump I could use. I plan to one day custom make one that fit.

    Here's a tip too ... Get a large piece of cardboard and cut it into a rectangle about the size of whatever tank you think you want to use as a sump (just the footprint of it), then try and maneuver that rectangle into the sump area through the doors you want to use. I did this to find the MAX footprint I could use for a sump, though I've not built it yet.

    Or else if you are good with acrylic, you could build a sump IN PLACE under the stand...but you'll never be able to remove it ... but if you build it well, who cares, you will never move it!

    V

  7. Vincerama2

    Vincerama2 Evil Overlord

    Joined:
    Nov 22, 2005
    Messages:
    1,823
    Likes Received:
    82
    Ah, you used similar plans to how my stand was made. The inside 2x4 or 4x4 or doubled 2x4 pinches in the "waist" of the stand and (in my stand) made it really hard to fit in a sump of the size I want. On mine, even though it supports a 180g tank, I feel is way overkill. I feel A single 2x4 would have sufficed.

    I painted the inside of my stand with white exterior paint, to make it more water resistant and to reflect back in refugium light.

    V

  8. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    I need to get it painted inside and the top poly'd

  9. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    the stand would support Trumps ego

  10. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,579
    Likes Received:
    965
    Is the stand larger than the tank? It looks like that from where you cut the overflow hole in the top. Just make sure your tank is supported by the horizontal 2x4s in at least one direction on both sides of the tank (long way or short)

  11. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    I'm bracing the 2x4's under with joist hangers.

  12. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    Update on my build...found the following for $225:
    Flame Angel
    Goby
    100 pounds live rock wet and in a tank
    25 pounds dry live rock
    Brand new MarineLand 48" white LED
    several water jugs
    powerhead
    heater
    chemicals and test kit

    Still need:
    Skimmer
    Sump (bidding on 30 gallon rimless) for DIY sump
    return pump
    better heater
    live sand

    It's coming together.

    Today second coat of paint on bottom of stand and additional bracing for my 2x4 supports under the top.

    Accepted an elementary school kindergarten position yesterday so times limited. Also swamped with homework for my K-5 credentialing class.

    Updates to come

  13. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    Question...where do we place the heater in the sump? skimmer compartment, refug, or return?

  14. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21

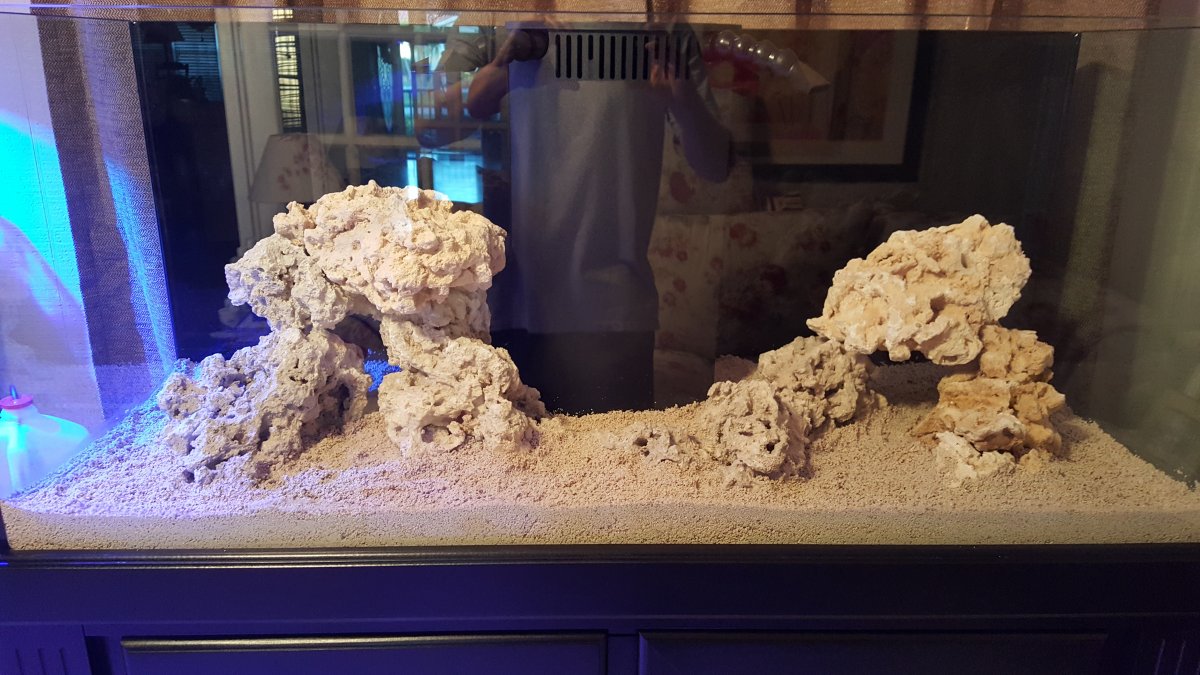

    I'm leaning towards this as my scape, with a bit more rock


    Attached Files:

  15. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,857
    Likes Received:
    820
    Did you buy that rockwork or are you planning something similar?

    Where are you holding the flame angle and goby?


    Sent from my iPhone using Tapatalk

  16. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    I asked the Fish Doctor, Michael in Pacifica for an AirBnB for the two.

    I am will be using the rock from the purchase above to scape.

  17. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,857
    Likes Received:
    820
    If you already have the rockwork, I would try and cycle it and get any phosphates out of it. Trashcan or any plastic container, fill with saltwater and add a powerhead.


    Sent from my iPhone using Tapatalk

  18. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    So I'm getting around 100 pounds of wet live rock from the tank I advertised yesterday, and there is a lot of coraline (spelling??) purple algae on it, which I'm told is good?

    There is another 25-ish pounds of dry. I'm a tad worried about the critters on the rock, but it's cycled and in a healthy tank with 3 fish. I was going to put it in a bin and aerate it until i have my tank ready to go. What's your feeling about using the tank water in the tank for sale for my tank? Also, whats your opinion on using his rock. I'm saving a ton of money on this deal. Do i need to worry about temperature with the live rock?

  19. Jeff Rehling

    Jeff Rehling Supporting Member

    Joined:
    Aug 5, 2016
    Messages:
    343
    Likes Received:
    21
    so another question is if i get the tank, can i set it up on my back deck outside and run a powerhead to keep the rock alive? when I'm ready to scape, can the rock be dried out, or does it have to stay wet?

  20. Vincerama2

    Vincerama2 Evil Overlord

    Joined:
    Nov 22, 2005
    Messages:
    1,823
    Likes Received:
    82
    "Live Rock" is in theory, already full of A-N-N processing bacteria, and may have extras like nice pods, brittlestars, ... aiptasia, etc. So yes, it makes sense to keep the live rock alive in a HEATED saltwater filled tub/holding tank.

    Now, here's my thought though. You REALLY don't want aiptasia.... Any dry rock will magically re-animate into live rock given time. It won't have any extra critters which is good and bad. However, you can always seed the tank with the critters you want.... but if you get bad critters (ie aiptasia) you will curse the rock.

    The only way you can really tell if you have aiptasia or not is to leave the live rock in the heated saltwater tub for quite a while.

    You can, cycle your other completely dry and dead rock in your main tank after you have aquascaped it. Then after (seriously) a few months, you can evaluate if your still-living rock has pests or not and selectively move them to the main tank to seed the main tank with pods or whatever.

    Be warned that your beautiful tank will soon look horrible, and then it will look nice.

    I am recommending starting with completely dead dead dead dry rock. I did this for my 180 and it was nice, but I had to move corals/rocks from my 58G which I was taking down. Then the aiptasia storm hit and the aquascaping went to crap as I moved out rocks trying to kill all the aiptasia.

    Just my thoughts.
