Matt's 60 gallon Frag Tank

Discussion in 'Tank Journals' started by coral4me, May 20, 2016.

  1. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    I have several tanks I want to start tank journals for. I need to start somewhere, so I decided to start with this one. My wife @Ashalye and I bought this from @gimmito back in September of 2015.

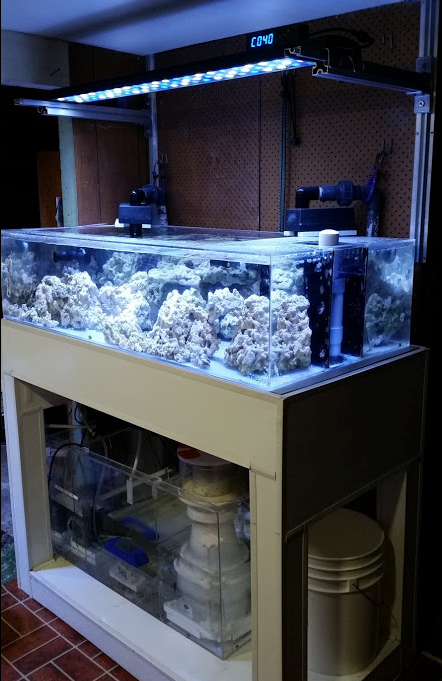

    Here's one of the first pictures of it setup in October of 2015.
    Screen Shot 2016-05-20 at 11.26.45 AM.png

  2. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,781
    Likes Received:
    1,192
    Nice! Is that a stand alone system? What light is that?

  3. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    One of the first things I made for the tank was an adjustable light mounting bracket out of some aluminum scraps. It can be seen in the picture above.

  4. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    This was a stand alone system at that time. Since then, I've connected a display tank to it on the other side of the wall. You'll have to wait a little bit, I'm not there yet in the progression of this journal. ;)

    The light is a HouYi Aqua System, you write the program for it in a text file named hy.txt and upload the program with an SD card. It works fair, I have nothing bad to say about the light. If anyone has a similar light and is having issues with the SD card program not behaving, I could probably help you fix it.

    Last edited: May 20, 2016
    Coral reefer likes this.
  5. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    I drilled new holes in the top back corners to get the Sea-Swirls out of the way and made a cover for the overflow box.

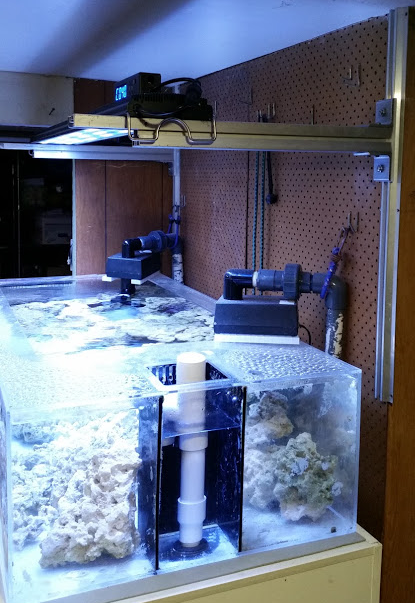

    Before:
    Screen Shot 2016-05-20 at 11.50.11 AM.png

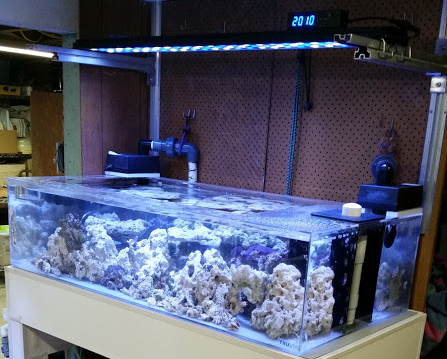

    After:
    Screen Shot 2016-05-20 at 11.51.40 AM.png

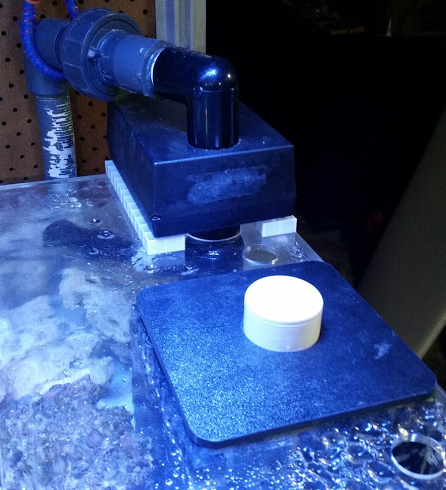

    Right Side:
    Screen Shot 2016-05-20 at 11.53.48 AM.png

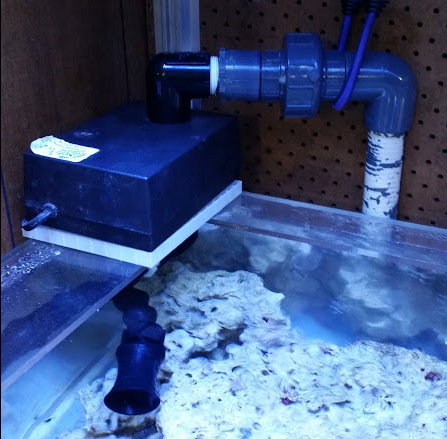

    Left Side:
    Screen Shot 2016-05-20 at 11.53.34 AM.png

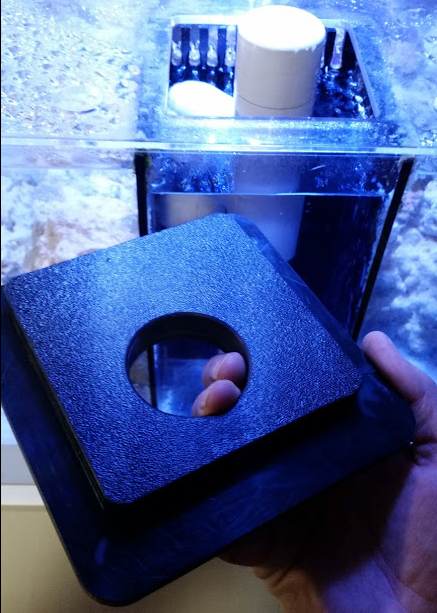

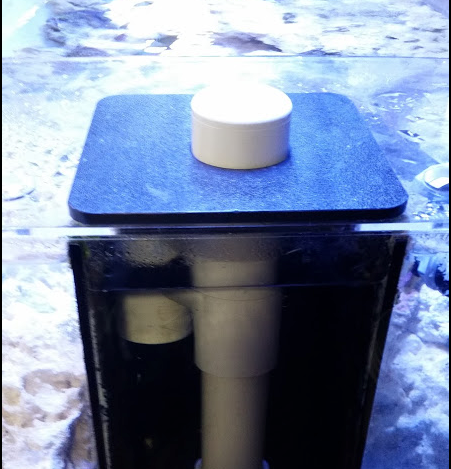

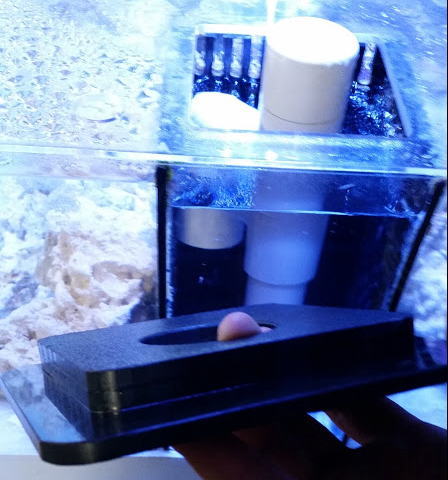

    Overflow Lid
    Screen Shot 2016-05-20 at 11.52.43 AM.png
    Screen Shot 2016-05-20 at 11.52.25 AM.png
    Screen Shot 2016-05-20 at 11.53.03 AM.png

    Enderturtle likes this.
  6. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175

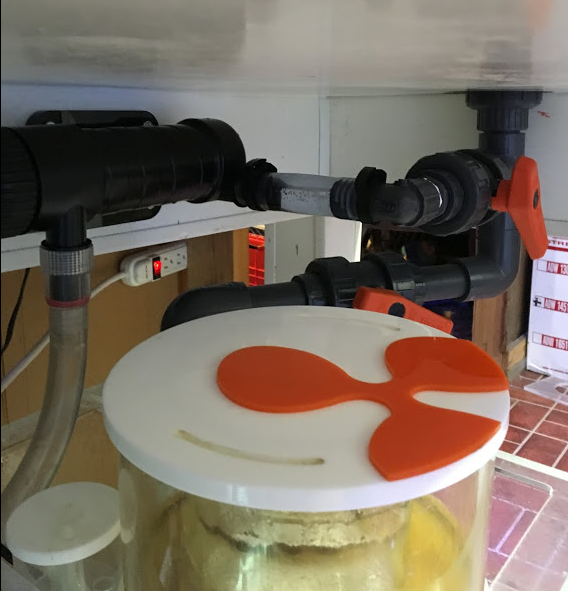

    Made a custom mounting bracket and installed a UV sterilizer.
    Screen Shot 2016-05-20 at 3.02.40 PM.png

  7. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175

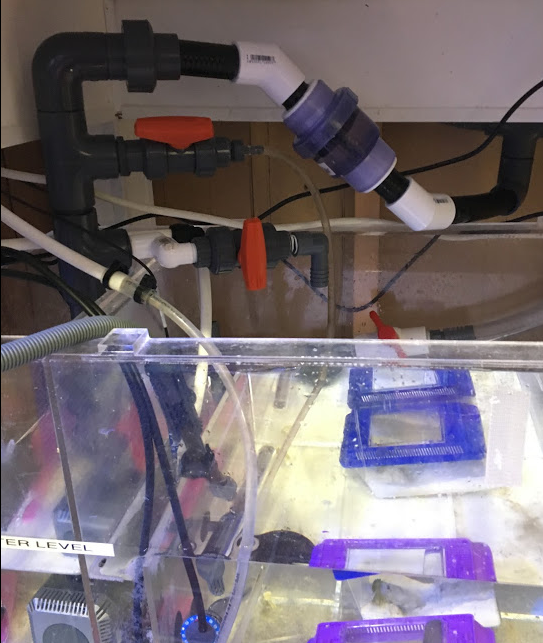

    I cut the flex pvc on the original return plumbing and installed a serviceable anti-siphon valve to prevent the return pipe from back flowing into the sump in the event of a power failure or feed cycle.
    Screen Shot 2016-05-20 at 3.06.20 PM.png

  8. Newjack

    Newjack Supporting Member

    Joined:
    May 27, 2015
    Messages:
    628
    Likes Received:
    215
    are you gonna continue to use that light to grow out the frags? How do the corals like it?

  9. tankguy

    tankguy BOD

    Joined:
    Dec 10, 2011
    Messages:
    2,780
    Likes Received:
    500
    thats the cleanest Ive ever seen that tank look

    coral4me and Coral reefer like this.
  10. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    Even though the rocks were starting to color up by November, I was concerned that it might not be enough light. So I decided to add some T5s and reflectors that I had laying around. I had to construct a way to mount them which you'll see in the pics below.

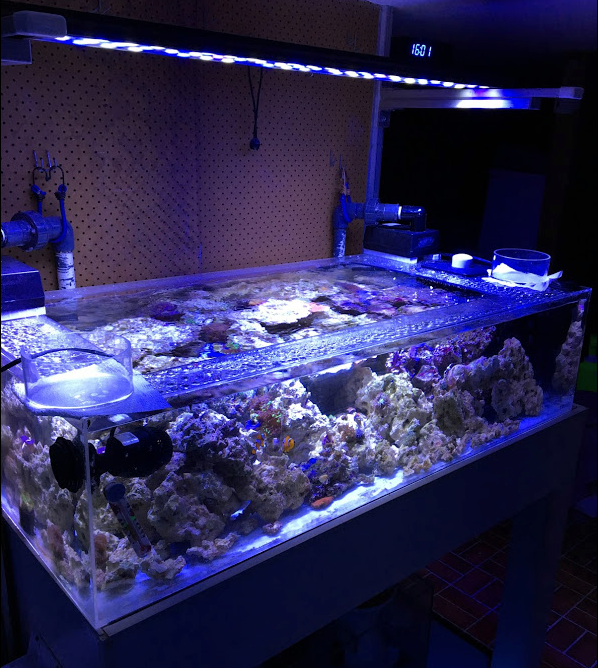

    A few weeks before implementing the light upgrade. ( November 20, 2015 )
    Screen Shot 2016-05-20 at 3.35.58 PM.png

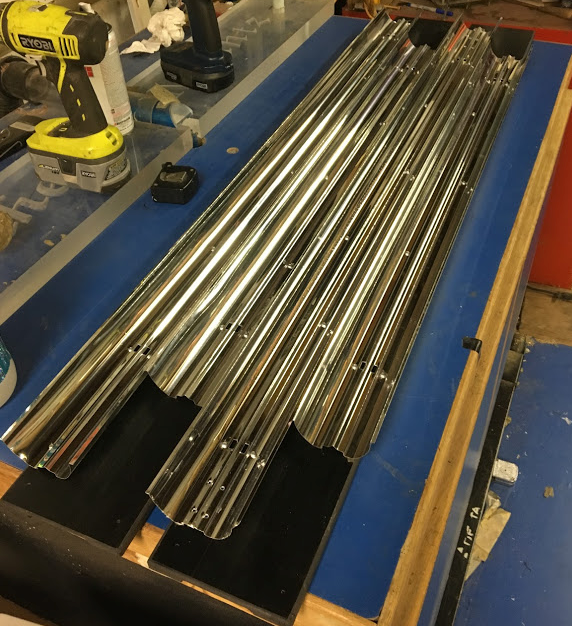

    Screen Shot 2016-05-20 at 3.34.33 PM.png Screen Shot 2016-05-20 at 3.33.17 PM.png

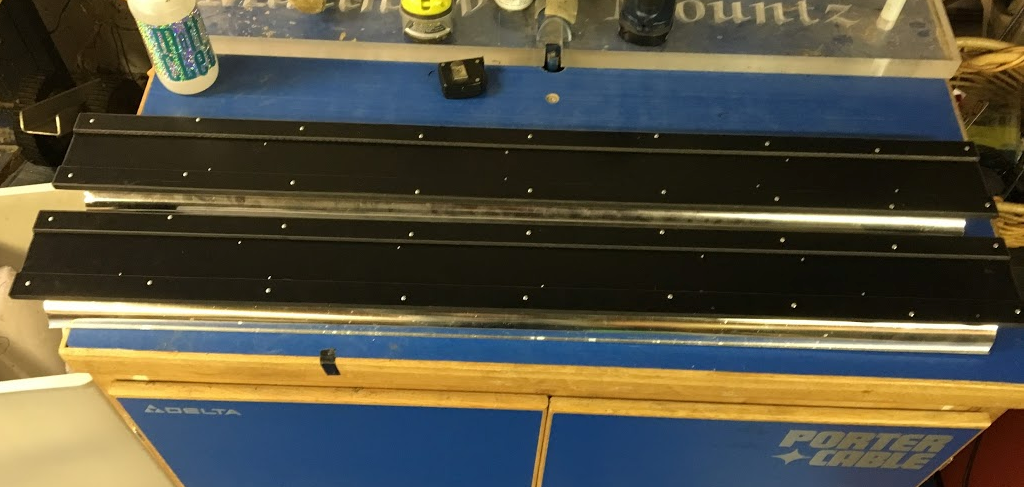

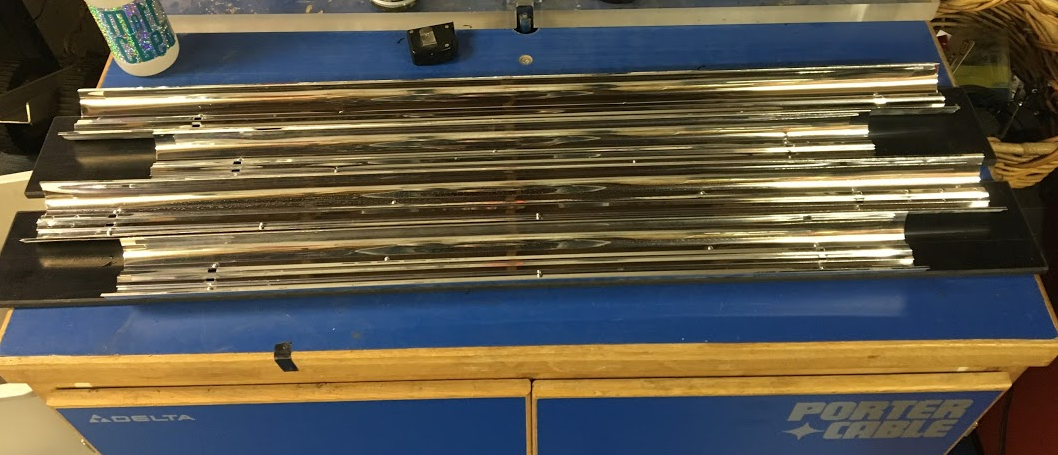

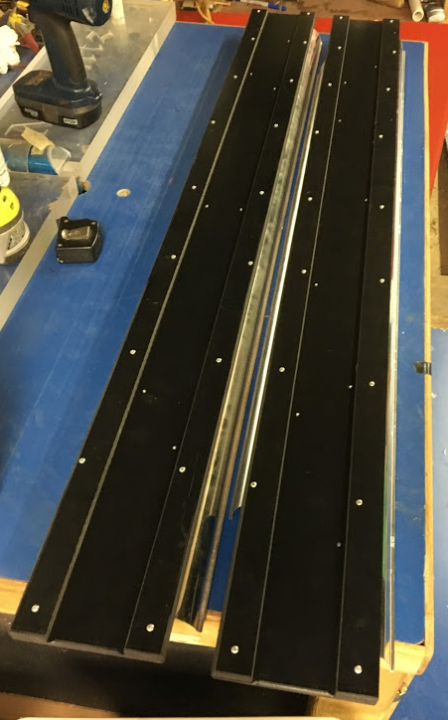

    The black material is called Centra. It is a foamed PVC and is light in weight but more flexible than I would like for this application. To increase rigidity I doubled the thickness by adding an extra strip to each side. From past experience, I've found the skin on the surface of Centra does not glue well, so I attached the strips with screws.
    Screen Shot 2016-05-20 at 3.33.40 PM.png Screen Shot 2016-05-20 at 3.32.50 PM.png

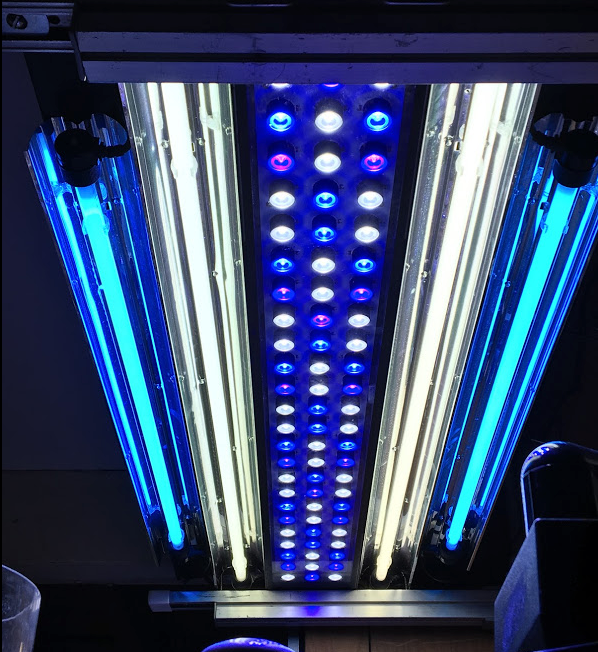

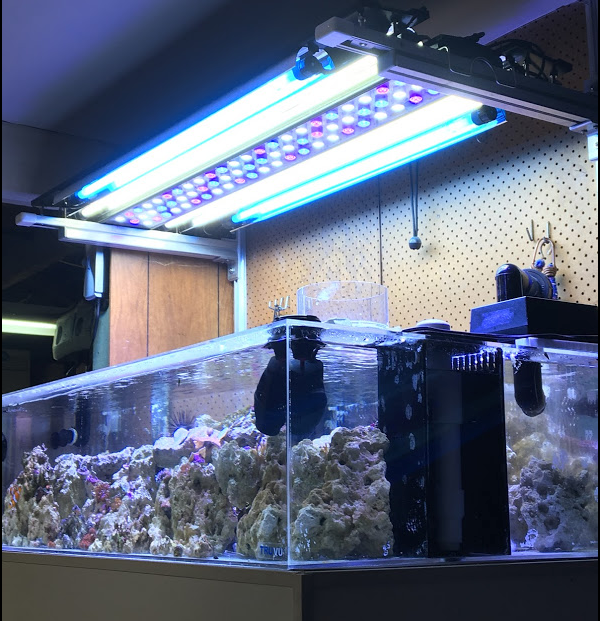

    T5 Light Upgrade Installed December 2, 2015
    Screen Shot 2016-05-22 at 8.15.00 AM.png Screen Shot 2016-05-22 at 8.15.43 AM.png

    Last edited: May 22, 2016
  11. Newjack

    Newjack Supporting Member

    Joined:
    May 27, 2015
    Messages:
    628
    Likes Received:
    215
    sweet!
    You're the perfect kind of Buddy to know.... "man of MANY skills, Master of none". o_O
    or is that "Jack of all trades, master of none". lol

    Last edited: May 22, 2016
    Coral reefer likes this.
  12. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,553
    Likes Received:
    950
    I'm sure he's a master of at least one.

  13. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    466
    Likes Received:
    175
    Just in case there wasn't enough light already or a broad enough spectrum of light, I add a pair of Kessil A150s and a white foam square to the back wall as a reflector. Now I need to barrow the clubs PAR meter to see what kind of levels I'm actually getting.

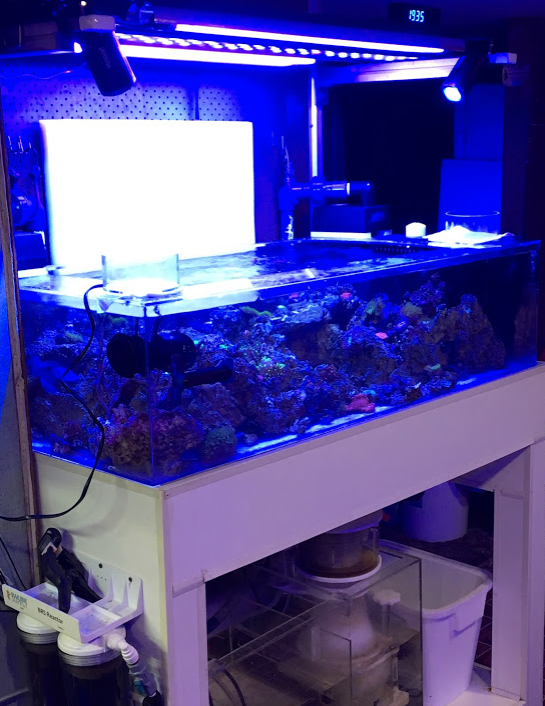

    January 20, 2016 - Added Two Kessil A150 lights
    Screen Shot 2016-05-23 at 9.49.54 AM.png

    Kmooresf and Coral reefer like this.
  14. Scott Esters

    Scott Esters Guest

    Joined:
    Mar 30, 2016
    Messages:
    1
    Likes Received:
    0
    Thanks for sharing your build experience!
