TGunn's First 37g in the Bay Area

Discussion in 'Tank Journals' started by tygunn, Mar 16, 2014.

  1. tygunn

    tygunn Webmaster

    I was fortunate enough to get one of the tanks XCaret was giving away, so it looks like I'll be able to get something up and running sooner rather than later (I'm still planning to do the fabled balcony tank -- I am slowly learning SolidWorks and modelling the stand, canopy, tank, etc and will do a full scale thermal transfer analysis)....

    So, without further adieu, here is the tank:
    Tank Length = 24 inches
    Tank Width = 18 inches
    Tank Height = 20 inches
    Tank Volume: 37.4 Gallons


    XCaret did an amazing job retrofitting a hidden sump into the bank of the tank:

    Unlike the all in one sump on my old Solana, this one has lots of room for the equipment. Only downfall is it makes the usable tank area a bit on the smaller side, but it's a small price to pay for it being so turnkey.

    I'm still cleaning up the stand. Other than some dust and cobwebs it looks to be in excellent shape, so no issue there.

    Okay, on to the equipment list; I happen to have a big 'ol box of reef gubbins from my last tanks, so here is what I will start this tank off with:
    - Tunze Osmolator ATO
    - Tunze Nano DOC 9002 skimmer
    - Maxijet 1200 return pump
    - Koralia 1s and 4s for main circulation -- I have an assortment. I have a couple Tunze 6100s kicking around but those would turn the tank into a tornado.
    - 250w titanium heater -- used to be one of those Won Bros dealies until the heater controller died. I've got an STC-1000 temperature controller I bought off ebay that I will use instead.
    Once I get a feel for calcium and alk demands, I'll determine if I want to run a small calcium reactor, or dose 2-part. I've got a single-head Cole Palmer dosing pump that will be perfect for feeding a Ca reactor, and I can get a double-head unit if I choose to dose 2-part.

    For lighting I'm thinking I'll look into a Kessil LED light. A 150w LED - 15000k, would likely be enough illumination.

    Planned contents:
    - Micro and macrofauna.. LOTS of it. I am a HUGE fan of a tank with loads of pods, worms, etc...
    - The obligatory clown, and some other small fish
    - SPS primarily (I'd like to start growing out some of the amazing frags I've seen at Neptune).
    - Zoas and ricordea down below (again, so many of those I saw).
    neuro likes this.
  2. gimmito

    gimmito Guest

    Sounds like a good plan. Kudos to Mario for being the generous dude that he is !
  3. tr1gger

    tr1gger Keyboard Cowboy

    When you do the MJ return, make sure you get the cobalt version of the MJ. A lot quieter and only a few dollars more.
  4. iCon

    iCon Supporting Member

    Glad the tank found a good home. AIO is nice for smaller systems!
  5. tygunn

    tygunn Webmaster

    Yes very generous. I'll have to dig through my aquarium box and find some stuff to give away to return the favor.

    I've still got a pile of Maxijets so I'll use an existing one. I find my tunze skimmer is much louder than the Maxijets anyway.

    I figure it's a nice way to finally get some corals growing out while I undergo the flow process of figuring out my next larger tank.

    Sent from my Nexus 5 using Tapatalk
  6. tygunn

    tygunn Webmaster

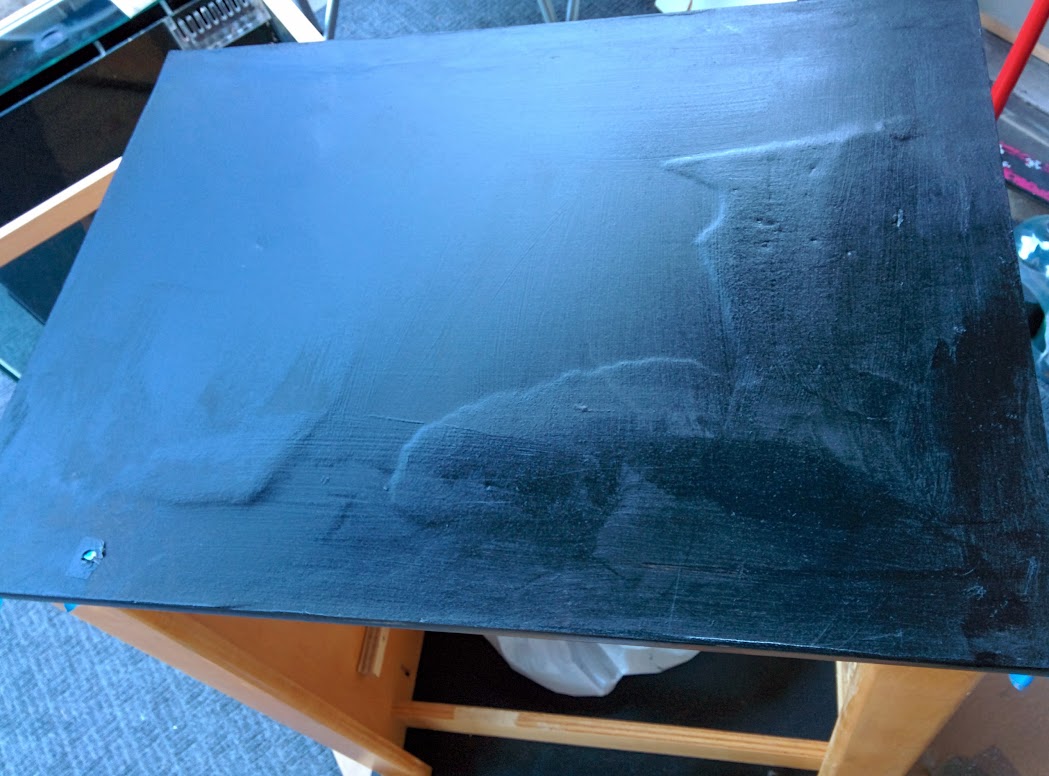

    The stand is in great shape (glass door is not mounted in pic, and stand is upside down). I decided I'd put a few coats of black gloss paint on the bottom of the stand. The bottom appears to be MDF and knowing how I do things I'll end up with my share of spills. So I figured its best to seal it up.

    Actually, it looks like I'm not the first one to have spilled water around the stand:

    In any case, the black paint will seal that up nicely and prevent me from turning the bottom of the stand into a swollen mess.
    tr1gger likes this.
  7. aqua-nut

    aqua-nut Supporting Member

    Don't count on it being a perfect seal. Paint really sheds water but over time it will get in!

    With a big flat (at least before the other owner's spills) bottom like that I wonder what the floor would look like wet for a long time. Hard to tell in pics - are you putting this on carpet?
  8. tygunn

    tygunn Webmaster

    Yes that is true. It is sitting on a tiled concrete floor. Maybe I'll get some of those big Teflon furniture sliders and put a whole bunch on the bottom. Then it will be slightly elevated. Good point.

    Sent from my Nexus 5 using Tapatalk
  9. tygunn

    tygunn Webmaster

    Alright, the first of the supplies needed is on order.
    - BRS 75gpd RO/DI unit
    - Add on pressure tank and tap (yay for drinking water)
    - Salifert Nitrate kit (already have ammonia and nitrite)
    - Hanna Checker Ca and Alk kits

    Looking through my bin 'o' stuff I found the lighting setup from an 10g nano tank I had in the past; a RapidLeds light set. I think I'll give a go at re-wiring the lights on that and using it as it fits nicely over the usable area of the tank.

    I'll just need to build an acyrlic "fixture" to house it so that my ghetto soldering job is hidden away. :)
  10. tr1gger

    tr1gger Keyboard Cowboy

    I love the hanna kit for alk but for calcium I prefer the salifert kits. The hanna checkers for calcium are just a huge PITA to get correct each and every time with RO water and then adding the tank water and packets.
  11. aqua-nut

    aqua-nut Supporting Member

    +1000 to that! I ran out of packets and switched to Salifert.

    Anybody want to buy a Hanna CA kit? Slightly used, heavily cursed! :) (I should have gone into marketing!)
    tr1gger likes this.
  12. tygunn

    tygunn Webmaster

    Hmm, I didn't really read up on them enough I guess. Well I'll give it a shot. Worse case I go back to Salifert. I always did have good luck with those well.
    tr1gger likes this.
  13. tygunn

    tygunn Webmaster

    Hmm, sounds like I may have bought into the hype too soon!
    tr1gger likes this.
  14. tr1gger

    tr1gger Keyboard Cowboy

    I would like it to use in comparison to my salifert if you are giving it away :p. Unless Tygunn needs it and is on a budget and could use it more. ;)
  15. tygunn

    tygunn Webmaster

    HAha, no worries about budget here. :) People from Winnipeg (Canada) are notoriously cheap, so we always like freebies when we can get 'em. :)
  16. tygunn

    tygunn Webmaster

    Alright, the stand has been cleaned up and the door re-installed. I'm quite happy with the appearance of the complete package:

    Next step... everything else. :)
    tr1gger likes this.
  17. tr1gger

    tr1gger Keyboard Cowboy

    Looks great!
  18. tygunn

    tygunn Webmaster

    Thanks! This stand is also so much more sturdy than the one I had with my old Solana 34g. That one you could rock a good 1/2" before I reinforced it....
  19. tygunn

    tygunn Webmaster

    Okay, time to start working on the lighting.. I dug out my RapidLeds kits tonight. Somehow I thought I had a 50-50 mix of white and royal blues. Apparently I had a 60/40 split of white/blue. I tried to lay them out in a reasonable pattern, recognizing the center is where I'll likely need the most light.
    The "oddballs" in the mix (4 of them) are cheapie SatisLed RED emitters to use for nightime viewing. I've always loved seeing what creatures come out at night, and red light is a nice way to light things up without really alerting the creatures that you're spying on them.


    Now to order some hookup wire and solder flux, because some how I managed to get rid of that when I moved. Durrr.
  20. rygh

    rygh Supporting Member

    Hmm, 60/40 split of white/blue?
    Or is that 60-blue and 40-white?
    Hopefully the latter. You may not be happy with 60% whites.
    Make sure they are on a different circuit, for dimming.
