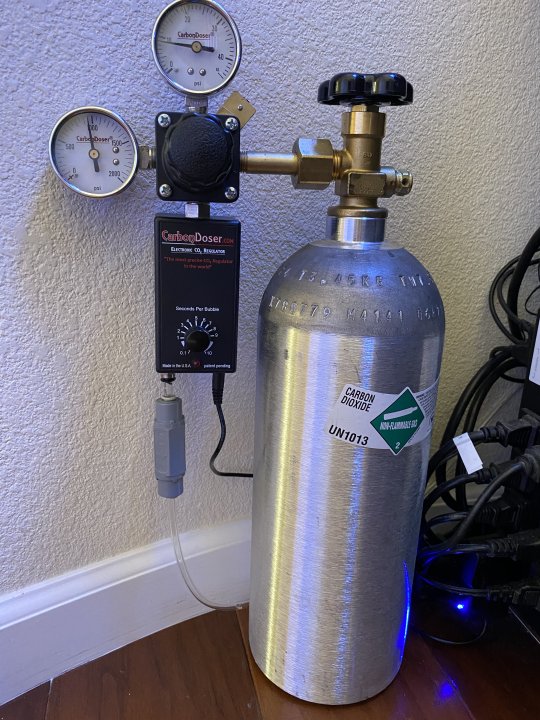

For those using carbondoser with your calcium reactor. Do you experience your carbondoser get wet when your co2 tank run out? I noticed my calx pH probe go high, then see water around the co2 tank, further notice I ran out of co2. When I remove my co2 tank and disassemble the carbondoser/regulator I noticed there are water in it. I shake it off, unscrew the controller knob and use air spray to blow out as much water as I can. I will go exchange the co2 tank tomorrow and hope it not damaged the carbondoser.
Carbondoser get wet
- Thread starter nly04
- Start date
RandyC
Supporting Member
Do you have a check valve to prevent the reactor water getting into the co2 line/regulator? If you do, inspect to make sure it is functioning correctly.
Last edited:

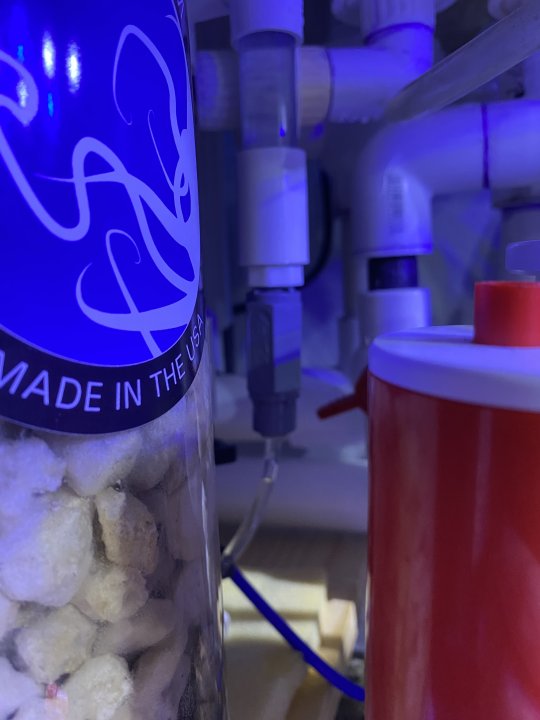

Good point, I install the check valve on the reactor chamber side, do you think I should put another valve at the carbondoser end?
RandyC
Supporting Member
You should have a check valve between your co2 regulator and the co2 input of the calcium reactor to prevent backflow of effluent into the regulator.
iani
Supporting Member
If you can, get a nice one. A swagelock 1/4" tube with a 1/3 poppet check valve is what you want.
You will also need tube end compression fittings for the soft tubing.
SWAGELOK SS-4C-1/3 / SS4C1/3, Poppet Check Valve - MINT CONDITION | eBay
Swagelok Poppet Check Valve, SS 4C 1/3. 316L Stainless Steel High Purity Bellows Sealed Valve, 1/4 in. Swagelok Tube Fitting, NC Actuator. How will my order be dispatched?.
www.ebay.com
You will also need tube end compression fittings for the soft tubing.
I | Tube Insert | Dual Ferrule | Titan Fittings
Titan Fittings I: Insert - Dual Ferrule Tube Fitting manufactured from premium 316L stainless steel, offering enhanced corrosion resistance and durability.
www.titanfittings.com
Last edited:
I don’t have those. I am using the cheap one that come with the doser and reactor. The one on the doser just installed today after swap out the co2 tank, while the other end already there at the beginning.
