Through wall plumbing advice

Discussion in 'DIY' started by capescuba, Nov 24, 2017.

  1. capescuba

    capescuba Supporting Member

    Joined:
    Jan 14, 2005
    Messages:
    1,615
    Likes Received:
    71
    I am looking to plumb my drains/returns through a wall into my garage. Any advice/recommendation/experience on this would be welcomed before I just dive in.

    I have 2 overflows, so do folks make 2 sets of holes or plumb them to use one single hole etc?

    Thanks!

  2. scuzy

    scuzy Supporting Member

    Joined:
    Mar 3, 2008
    Messages:
    1,993
    Likes Received:
    366
    Use one single larger hole. For instead you have two 1" then plumb using 1.5"


    Sent from my iPhone using Tapatalk Pro

  3. capescuba

    capescuba Supporting Member

    Joined:
    Jan 14, 2005
    Messages:
    1,615
    Likes Received:
    71
    I'm running 4 x 1" plumbing, so may either box it or use some larger diameter drainage pipe and push through this.

  4. Ibn

    Ibn Supporting Member

    Joined:
    Feb 20, 2007
    Messages:
    4,646
    Likes Received:
    563
    Your call on that. Just depends on how many holes you want to punch through the wall.

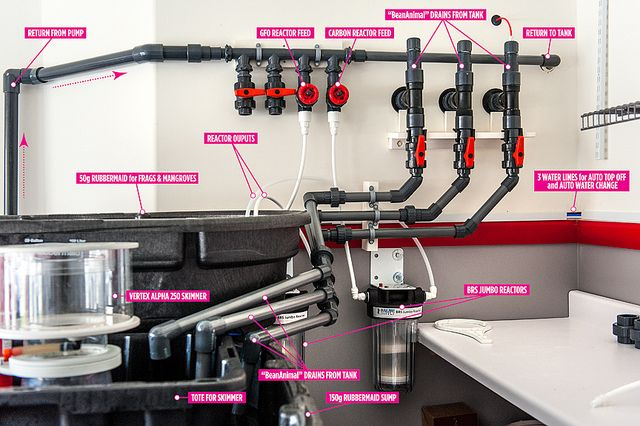

    Here's d2mini with the multiple through the wall.

  5. capescuba

    capescuba Supporting Member

    Joined:
    Jan 14, 2005
    Messages:
    1,615
    Likes Received:
    71
    Holy Cow - that looks awesome :eek: How many gallons is on the other side? 210 +??

  6. Ibn

    Ibn Supporting Member

    Joined:
    Feb 20, 2007
    Messages:
    4,646
    Likes Received:
    563
    200G on the other side.

  7. Gablami

    Gablami Supporting Member

    Joined:
    Sep 28, 2016
    Messages:
    1,444
    Likes Received:
    424
    Yeah I would keep them separate, through a larger hole. Merging them into one seems to defeat the purpose of an emergency drain...though it would take a lot to plug up a 1.5" hole.


    Sent from my iPhone using Tapatalk

  8. Gablami

    Gablami Supporting Member

    Joined:
    Sep 28, 2016
    Messages:
    1,444
    Likes Received:
    424
    That's a pretty slick fish room.


    Sent from my iPhone using Tapatalk

  9. capescuba

    capescuba Supporting Member

    Joined:
    Jan 14, 2005
    Messages:
    1,615
    Likes Received:
    71
    I meant running the plumbing lines together through one larger pipe, not combining them :)

  10. Bruce Spiegelman

    Bruce Spiegelman BOD

    Joined:
    Mar 12, 2016
    Messages:
    3,206
    Likes Received:
    1,197
    Most important thing is to send your wife or significant other for a nice spa weekend while you're doing this. Makes the project go much more smoothly.

    Flagg37 likes this.
  11. dswong01

    dswong01 Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    1,916
    Likes Received:
    43
    I would use a laundry room outlet box and punch hole in box to get pipe throug. These are typically found in your laundry room to bring water to your washer and also has drain for your washer. They can be found at Home Depot and fits between the studs for about $30 bucks.

  12. capescuba

    capescuba Supporting Member

    Joined:
    Jan 14, 2005
    Messages:
    1,615
    Likes Received:
    71
    LOL. Wise advice!

  13. capescuba

    capescuba Supporting Member

    Joined:
    Jan 14, 2005
    Messages:
    1,615
    Likes Received:
    71
    That sounds like a plan - I need to make sure it's still to code though, car fumes etc. need to be kept out + insulation ...

  14. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,848
    Likes Received:
    1,029
    I think Great Stuff sells an expanding form that is fire rated if you care about that sort of thing.

  15. dswong01

    dswong01 Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    1,916
    Likes Received:
    43
    3M also make a bunch of products for fire stop protection for wall penetrations. Available at granger.

  16. capescuba

    capescuba Supporting Member

    Joined:
    Jan 14, 2005
    Messages:
    1,615
    Likes Received:
    71
    Wouldn't the tank help out in that regard?? ;)
