Jestersix

60 Gallon Cube, All-In-One

Build thread over due, here are some pics of the build that began in April 2016. My son and I refurbished this rimless 60 gallon cube. The back wall that divided the tank from the filter was warped and the sealant was failing on the divider. It looked as if it had been re-siliconed several time with various colors. We decided to build a new divider wall and reinstall it. Here we go.

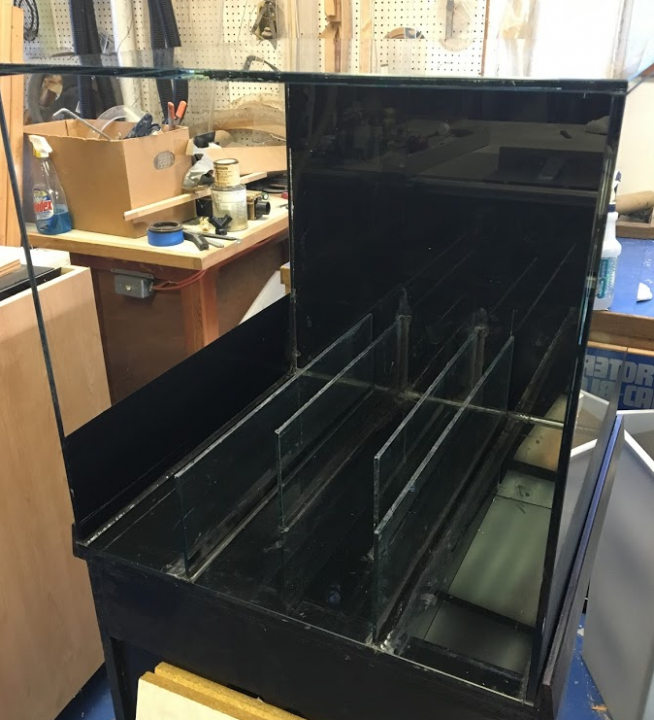

Divider wall removed while tank is laying on it's back.
Screen Shot 2018-04-10 at 12.34.16 PM.png


Old warped 1/4" wall
Screen Shot 2018-04-10 at 12.34.31 PM.png

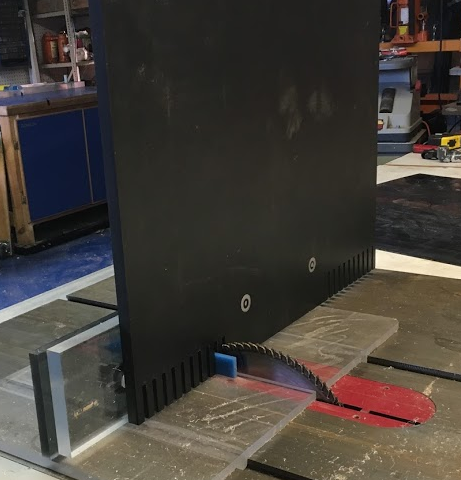

New 1/2" wall under construction. Cutting slots for overflow.
Screen Shot 2018-04-10 at 12.35.04 PM.png

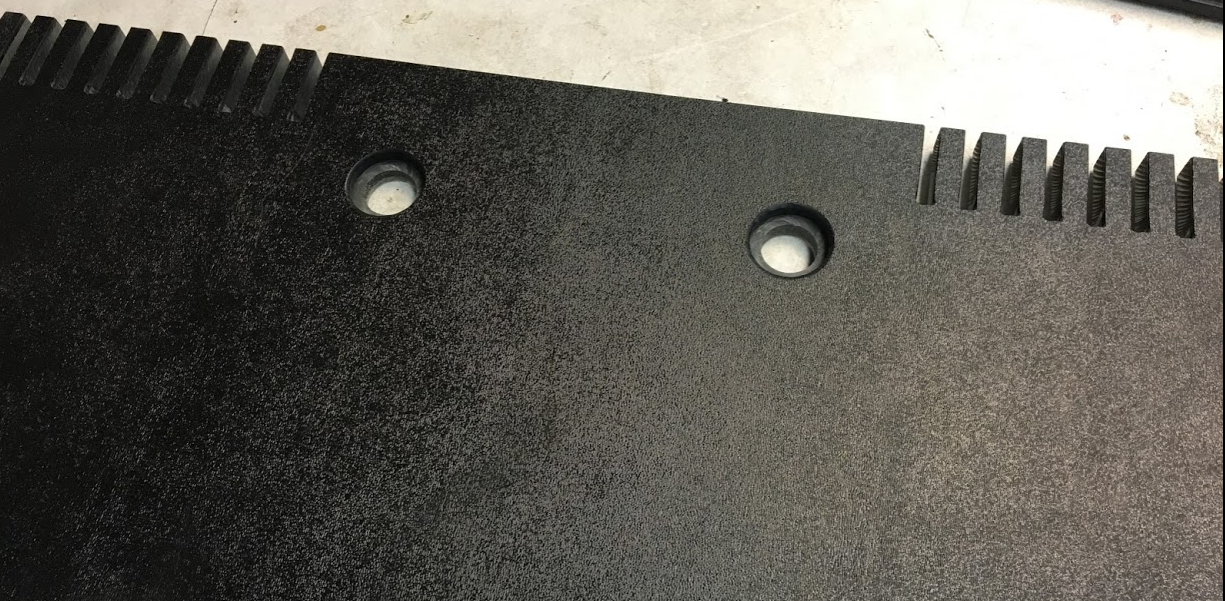

Completed slots and holes for return.
Screen Shot 2018-04-10 at 12.35.17 PM.png


Lock-Line fitting for return.
Screen Shot 2018-04-10 at 12.35.29 PM.png


Test fit of new divider
Screen Shot 2018-04-10 at 12.35.44 PM.png

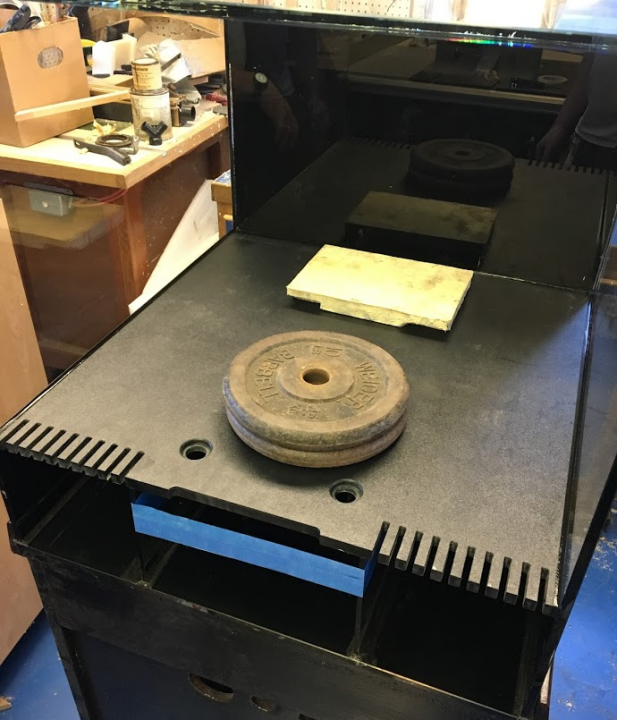

Divider installed with silicone and held in place with weights.
Screen Shot 2018-04-10 at 12.36.12 PM.png

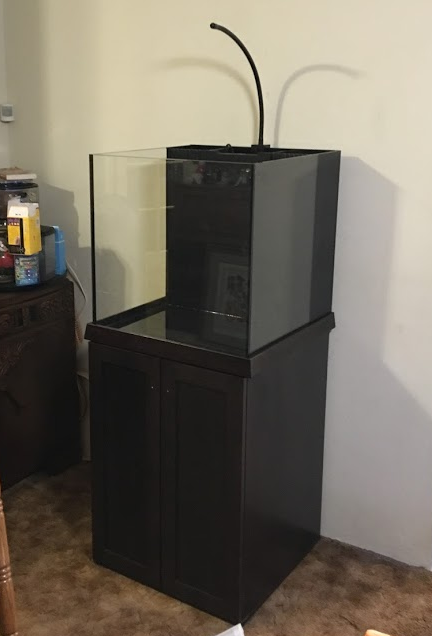

Tank in the house
Screen Shot 2018-04-10 at 12.53.14 PM.png
