Rygh's 250 gallon - rev.2

Discussion in 'Tank Journals' started by rygh, Nov 7, 2014.

  1. scuzy

    scuzy Supporting Member

    Joined:
    Mar 3, 2008
    Messages:
    1,956
    Likes Received:
    354
    How deep can these penetrate?


    Sent from my iPhone using Tapatalk Pro

  2. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,342
    Likes Received:
    677
    I have read numbers like 300 at around 12", but we shall see.
    I am getting just one at first, and will test it with a meter.
    They have 80 deg lenses.
    Since I am not covering 24x24, I will probably put them around 6" from water, which will help a lot.
    My tank is fairly shallow at 24", and most coral is around the middle.

  3. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    I measured light from a single hydra 26 HD here #111

    That was with light about 12" above water.

    I can't speak for the Prime, but 26HD coverage is really good, you can see my video one one light covering almost a 3' section.

    For your tank, I would get 4x52HD, mount it perpendicular to tank spacing ~2' apart

  4. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,673
    Likes Received:
    1,145
    Says the other guy w way too many led fixtures...

    Kmooresf likes this.
  5. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,897
    Likes Received:
    839
    Just to throw a wrench into the planning, little birdy (not that little really), that there will be a new addition to the Kessil AP line of lights. From what I could tell, it would work well for your setup.


    Sent from my iPhone using Tapatalk

  6. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,897
    Likes Received:
    839
    No such thing. Only possible to have too few.


    Sent from my iPhone using Tapatalk

    Kmooresf and rygh like this.
  7. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,342
    Likes Received:
    677
    Yes, your post was one of the reasons I was thinking of that fixture.

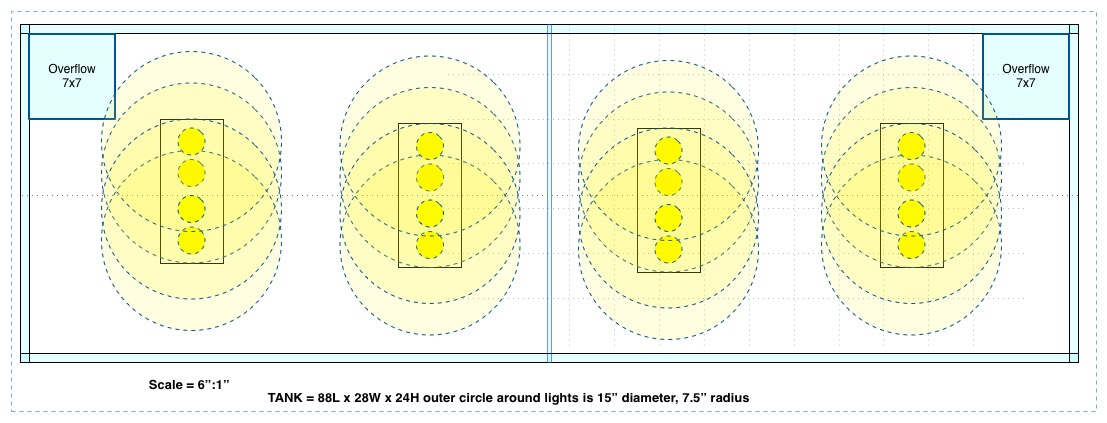

    I thought about 4x52 in that config. The problem is, my tank is 88 inches long, so they end up spaced about 18" apart.
    Not too bad, but I would expect really bright regions right under the lights, and darker in between.
    Interestingly:
    Total cost is almost exactly the same.
    Total watts: 11*prime at 55W = 600W. 4x52 at 90W = 360W
    So in theory, I get a lot more watts.

  8. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    11 Prime net you 11 nodes, 4x52HD get you 16 nodes :D

    Isn't Prime just driving the same LED with more power?

  9. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,342
    Likes Received:
    677
    Hmmmm.
    I did look a bit at the old A160WE. But something new would be intriguing.

  10. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,342
    Likes Received:
    677
    True. Per diode, one is better. By power, the other is better.
    And driven lower current, they last longer and are more efficient.

  11. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    Prime has 13 LED per node = 143
    4x52 HD =
    Btw Hydra 52 is 135W x4 = 540w, Hydra 26 is 95w

  12. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,897
    Likes Received:
    839
    Nvm. You were referring to 4x52s.

  13. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,342
    Likes Received:
    677
    Yes, I somehow copied the 26HD to 52HD in my notes.
    But the main problem with the 4x52HD is that coverage is just so uneven.

  14. scuzy

    scuzy Supporting Member

    Joined:
    Mar 3, 2008
    Messages:
    1,956
    Likes Received:
    354
    Go Mitras


    Sent from my iPhone using Tapatalk Pro

  15. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,897
    Likes Received:
    839
    Your not going to have enough with 4 52s. I would put coverage on of the 52s at 18x30. I would say 6.


    Sent from my iPhone using Tapatalk

  16. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,442
    Likes Received:
    461
    Lol you guys and your light overkill, at 7"-9" spread you are looking at 200 PAR at the 24" depth.

    Are you going hardcore SPS? Because you probably end up frying whatever it is on top. I'm SPS noob but I feel like it is easier to kill coral with way too much light than way too little light.


  17. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,673
    Likes Received:
    1,145
    I think you'd be fine w the 26s really. I have a 7' tank w 4 of them that's doing well.

  18. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,897
    Likes Received:
    839
    You do know you can turn your LEDs down right!?!

    It's not about power. It's about even coverage. Also helps that having more fixtures allows you to run them at lower % and thus prolonging the useful life of the puck.


    Sent from my iPhone using Tapatalk

  19. rygh

    rygh Supporting Member

    Joined:
    Jun 29, 2010
    Messages:
    4,342
    Likes Received:
    677
    ^^^ THIS ^^^
    :)

    I totally do not need 600W of LED lighting on a 240G tank. It would fry things.
    In fact, that is a slight concern if the controls get messed up.
    And coral can grow fine if light is not very uniform.

    But me: I have a fairly uniform rock structure. Not solid, but no big gaps. So I want nice uniform coverage.

  20. scuzy

    scuzy Supporting Member

    Joined:
    Mar 3, 2008
    Messages:
    1,956
    Likes Received:
    354
    4 Mitras would get awesome coverage and very good spread since the pucks are spread out


    Sent from my iPhone using Tapatalk Pro
